replacement parts for builders grade window (circa 1999)

A quick learner from leesburg, va says:

April 5, 2023

Hello, I have several builder-grade windows that need their window balances and connecting hardware replaced. These window balances measure 34 inches in length. Also, the spring-loaded clips that allow the window to release inwards. Any help would be appreciated.

Thumbnail of the uploaded file named Window Parts 1.png

Thumbnail of the uploaded file named Window Parts 2.png

Thumbnail of the uploaded file named Window Parts 3.png

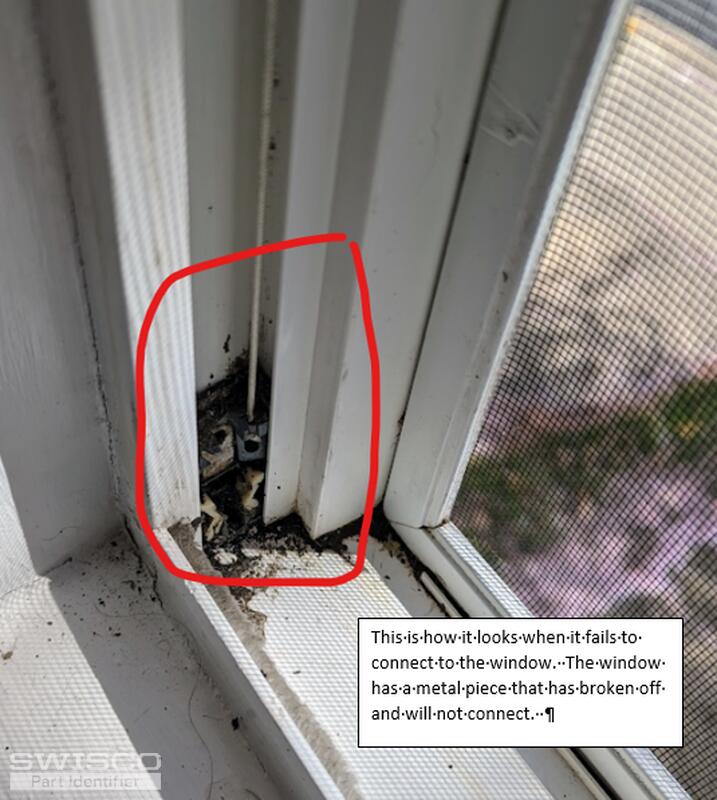

Thumbnail of the uploaded file named Window Parts 4.png

Casey from SWISCO responded:

April 7, 2023

Hello,

I would recommend removing a tilt latch from one of your windows to compare to the specifications shown on the 26-243 and 26-244 product pages.

As for your channel balance, the flared end of the metal channel shown in your third photo is quite strange. I suspect that it might be damaged. If so, take a look and compare the specifications of the S770-34 channel balance to yours.

As for your pivot shoe, we can't be sure with yours still installed but the 15-129 that is commonly used with the S770 balance is a good place to start. Take a look and if you notice any discrepancies, get back to us with additional photos and written-out dimensions to help us research this further for you. Thank you!

Detail of 15-129

Tilt Window Latch, Left Hand

26-243

$2.70

Tilt Window Latch, Right Hand

26-244

$2.70

Pivot Shoe, 9/16" Thick

15-129

$2.50

34" Series 770 Balance

S770-34

$13.77
