replacing casement window operator

A home owner from cape cod MA says:
April 18, 2022

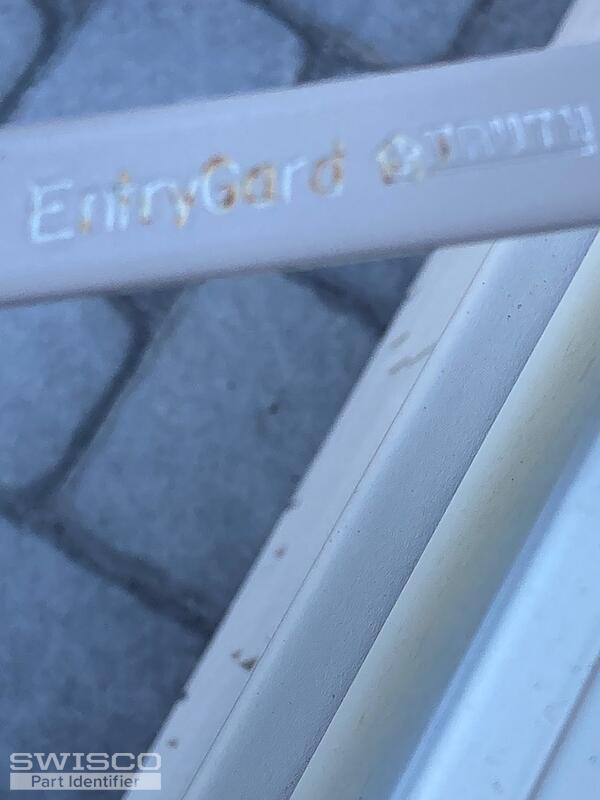

How do I measure the size and brand of operator so I can order new ones? They say "EntryGuard" by Truth.
Thumbnail of the uploaded file named 855B8E17-50B6-449B-9C9F-3CA7422B3365.jpeg
Thumbnail of the uploaded file named EDB7A40C-2C67-4A86-84DF-4B8616E5A6F4.jpeg
Thumbnail of the uploaded file named 9B83FE6A-9BC0-4E02-8326-F06BC0E82145.jpeg
Thumbnail of the uploaded file named 305A920D-28C8-4A2E-B188-79D68F5F51A8.jpeg
Profile picture of Emily
Emily from SWISCO responded:
April 20, 2022

Hi there!

From what I can see, it looks like you could have either the 39-031 & 39-032 or 39-155 & 39-156 operators depending on the length of the link arm. We have detailed dimensions on these parts' respective product pages that you can use as a reference to determine which one matches up best.
A home owner from cape cod MA says:
April 22, 2022

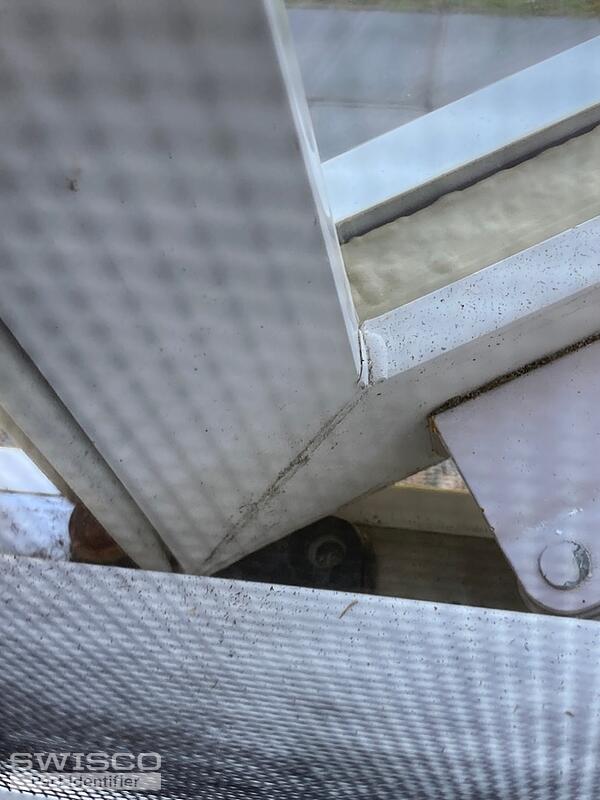

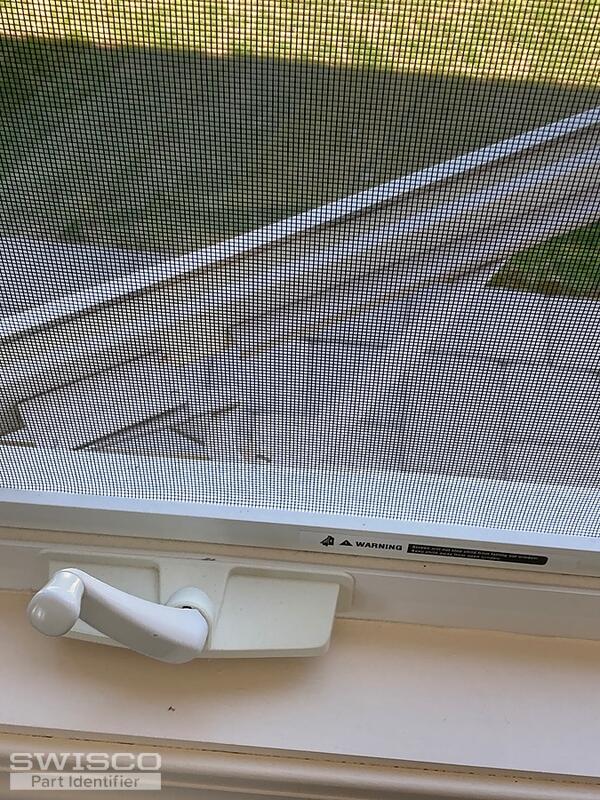

Hi - it appears that I only need the little black piece that secures the corner of the window to the hinge. How do I get 4 of those? And how to we replace them? Do we need to take out the entire window??? Thanks so much!
Thumbnail of the uploaded file named 6C60AE4E-CA86-4B2F-B272-3B98752635C1.jpeg
Thumbnail of the uploaded file named 6F85A213-2B54-4225-AD19-8C03DC239CDF.jpeg
Profile picture of Emily
Emily from SWISCO responded:
April 22, 2022

I'm afraid we don't sell that black piece separately so you'll need an all new hinge. Start by comparing your dimensions to our 36-048 hinge set to see if this matches up to your old hardware. Just be sure to replace the top and bottom hinges at the same time.

You will need to remove your sash in order to replace your hinges but we have a video that will walk you through the entire process, step by step.
