replacing window tilt latch

Home Owner from New Paltz NY
Slider of right latch broke - can't open window to replace slide latch.

Please advise - unable to force it to slide by prying with flat head screw driver. Don't want to break anything. Just ordered part.

Thanks!

Tilt Window Latch, Right Hand
Product Code: 26-420
5 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. Using a slotted screwdriver to get there and 'depress' the tooth so that the latch can get free is really one of the only ways to get the sash to tilt inward for this process. Can you show us a good picture of your current tilt latch? That might give us some clue as to your next step. Otherwise, you do want to be careful--but if in doubt, hiring a local pro may be your best bet.

Also note that unless you're uncertain the 26-420 was the tilt latch you needed, you may want to send us pictures of an undamaged tilt latch just to be safe.

Home Owner from New Paltz NY
When you say "depress" the tooth, do you mean press it downwards?
I was trying to press it inwards (horizontally).

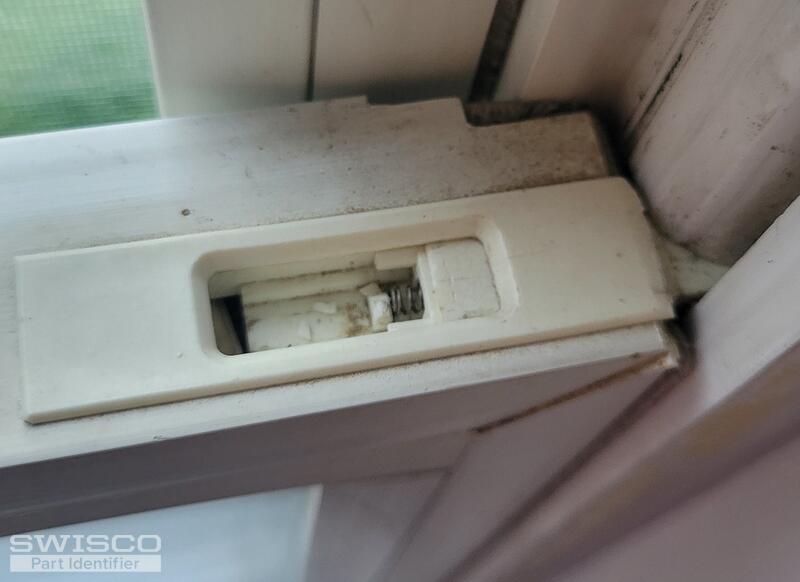

Photo is attached.
Thanks so much!
1 user uploaded image
Bob
Bob from SWISCO
SWISCO
Expert

Thank you, I understand the problem now. The finger button itself is broken on your latch, so you can't push it in to release it.

Unfortunately, there's not really an alternative means of releasing the latch. These are only designed to work one way. There's not a secondary release or anything. Have you tried pushing against the "tooth" itself? That's the curved part of the latch that extends and retracts when you toggle it, and what's physically keeping the window up.

If you've tried that and it still doesn't work, then you're unfortunately out of options. The only route forward would be to find some way to cut the latch off, which is no easy feat (and probably won't be cheap, either). I highly recommend doing whatever you can to pinch that tooth in.

Quick Learner from Halifax
I had the same problem. Both finger tabs broke on mine. I used a screwdriver on each side at the same time and managed to push down and slide the mechanism forward. It took some careful maneuvering, but the window tilted out easily.
