sash parts for CertainTeed window

Question

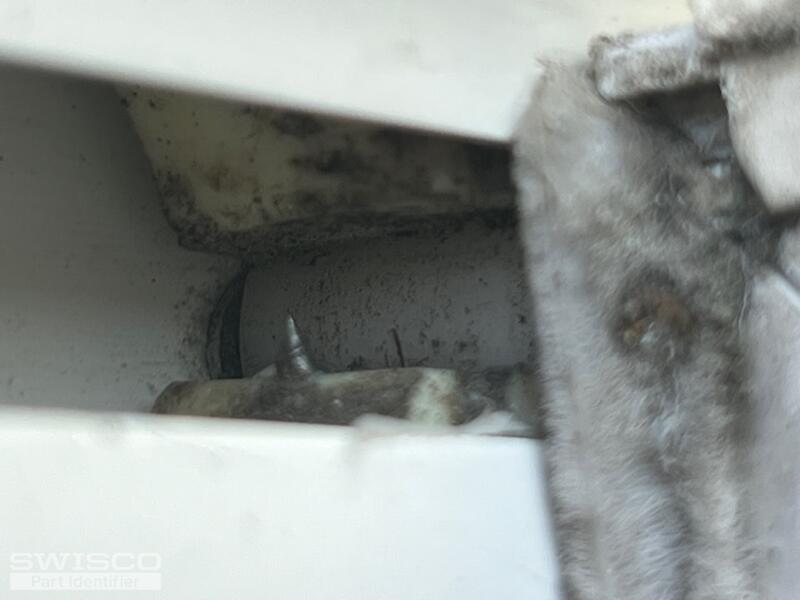

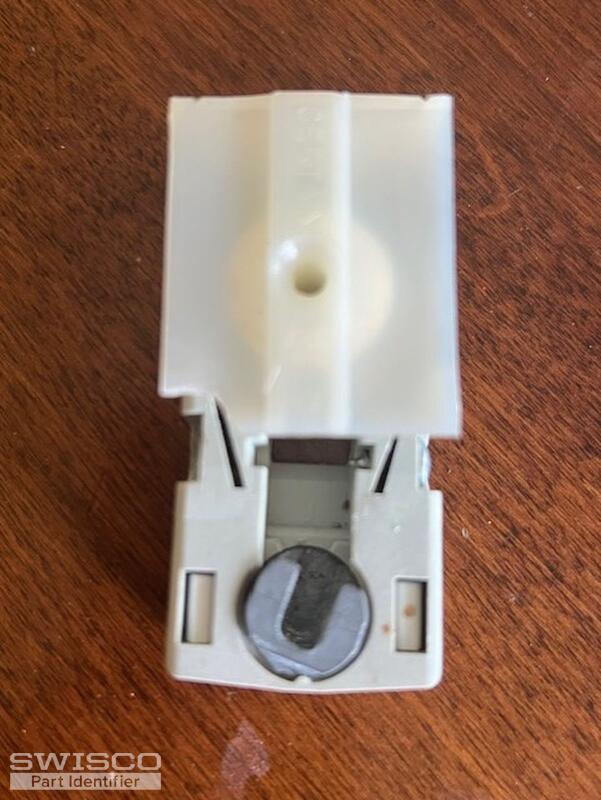

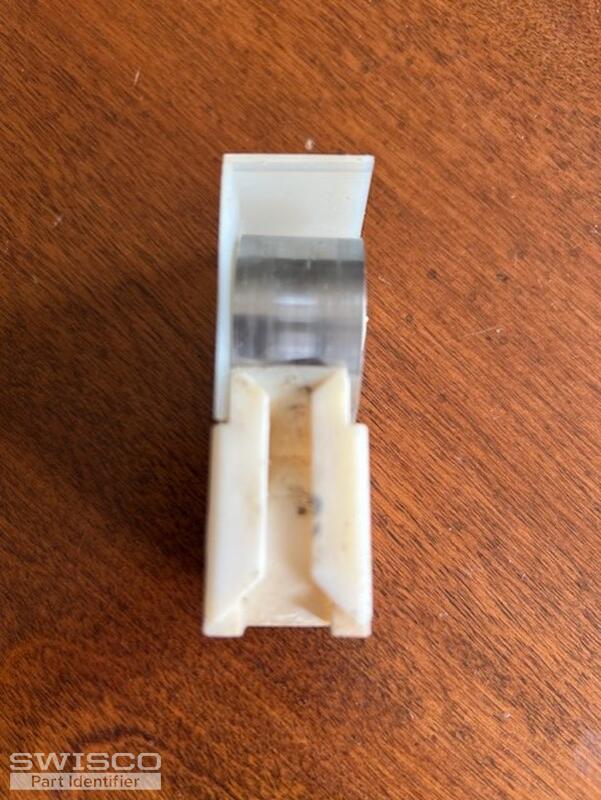

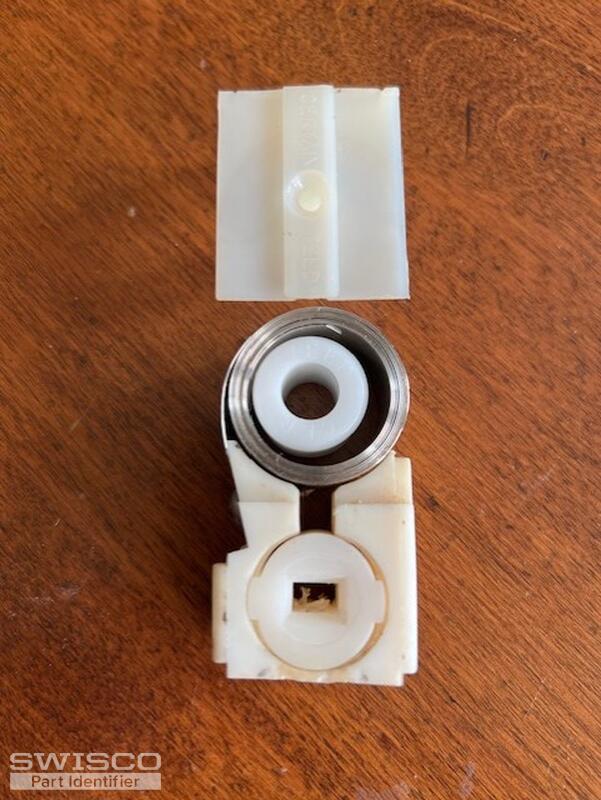

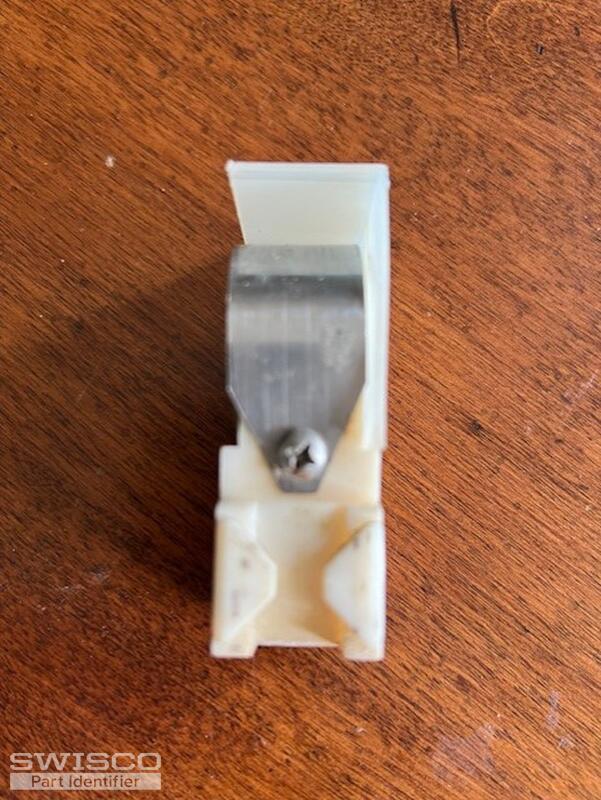

working on two windows. have looked up part identifier on your website, not sure if what i need is the certainteed pivot shoe 15-192 or the coil balance shoe, slate blue 15-177, the part i removed from the widow most resembles the 15-177. Also it appears to have a plastic shoe on the bottom window in the bathroom that i cannot or don't know how to remove the window.

thanks Jim

Jasmine · Accepted Answer

Hi Jim,

Thanks for reaching out to us! Since you have a CertainTeed window, the 15-192 CertainTeed Pivot Shoe would be the best replacement for your existing hardware. Although, since your shoe is an older, discontinued shoe, you may need to shave down the aligners on the shoe to install them.

Your exiting pivot bar may not be compatible with the 15-192 shoe; especially since the 15-177 shoe has been installed. It would help to see a photo of the pivot bar installed with the old CertainTeed hardware to determine the best possible replacement for this as well.

This shoe is compatible with the Series 170 Coil Balance, secured to the shoe using the 33-072 scrwe. To determine the correct coil for your assembly, I’ll need to know either the stamp/marking from the coil or the exact weight of the sash.

This assembly uses either the 15-156 wide lance spring cover or the 15-185 narrow lance spring cover.
