seals and cranks

A quick learner from La Crosse, WI says:
October 2, 2019
I have a home that was built in the 80's and the seals and cranks are wearing, windows are still in good shape. i have a number of cranks that are 7 1/2" long and shorter arm is around 4 1/2"
The outside seals are hard and gone but the few that are let are a dome seal "D"
Can you assist in getting the right seals and cranks?
Thumbnail of the uploaded file named IMG_4615.JPG
Thumbnail of the uploaded file named IMG_4610.JPG
Thumbnail of the uploaded file named IMG_4611.JPG

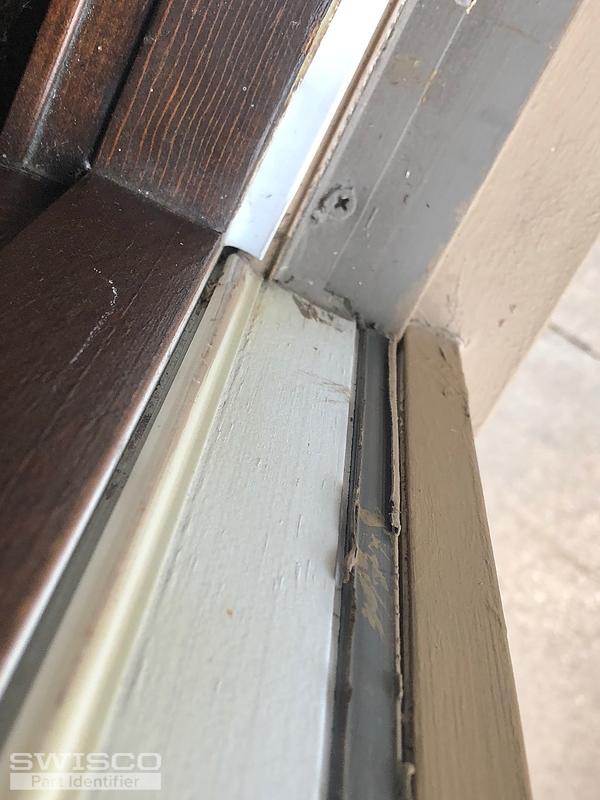

Thumbnail of the uploaded file named IMG_4614.JPG
Profile picture of Tom
Tom from SWISCO responded:
October 7, 2019

Thanks for reaching out to us. I'm afraid that we don't have an exact match for this seal, but you may be able to use our 58-055 as a substitute. This installs the same way and has a similar angled kerf, so I think it's worth considering. Look it over and let me know what you think.

I'm not sure about the crank itself. Can you show me a picture of the complete mechanism?
A quick learner from La Crosse, WI says:
October 7, 2019
Here are the mechanics pics

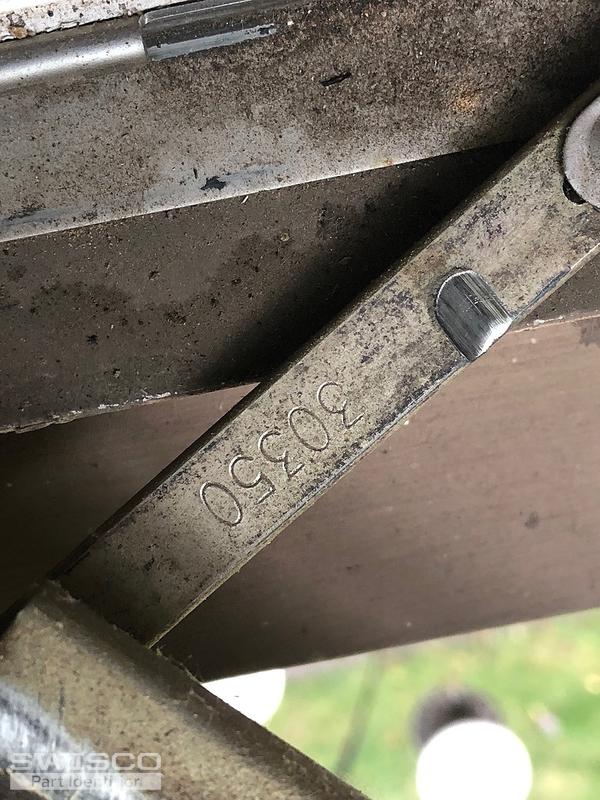

Thumbnail of the uploaded file named 3B053F4E-7B9F-4ACF-96A5-4A7BF3E72810.jpeg

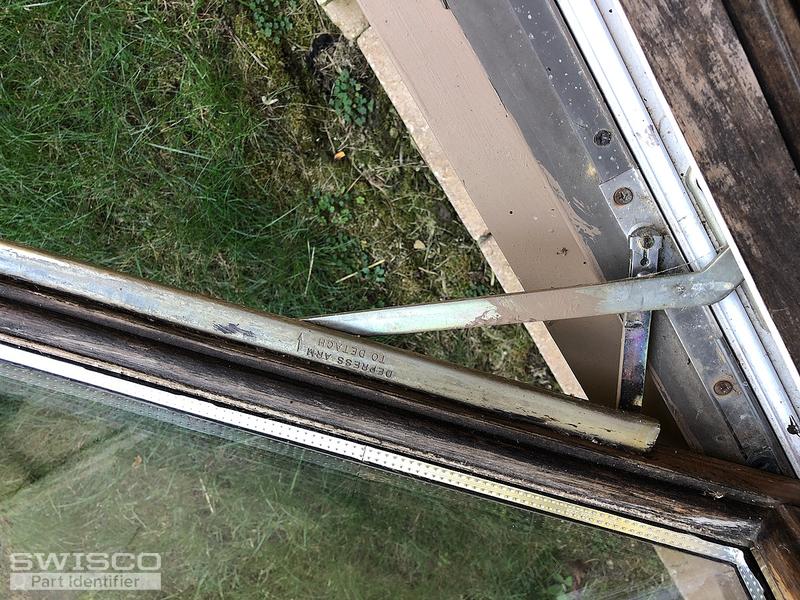

Thumbnail of the uploaded file named image.jpg

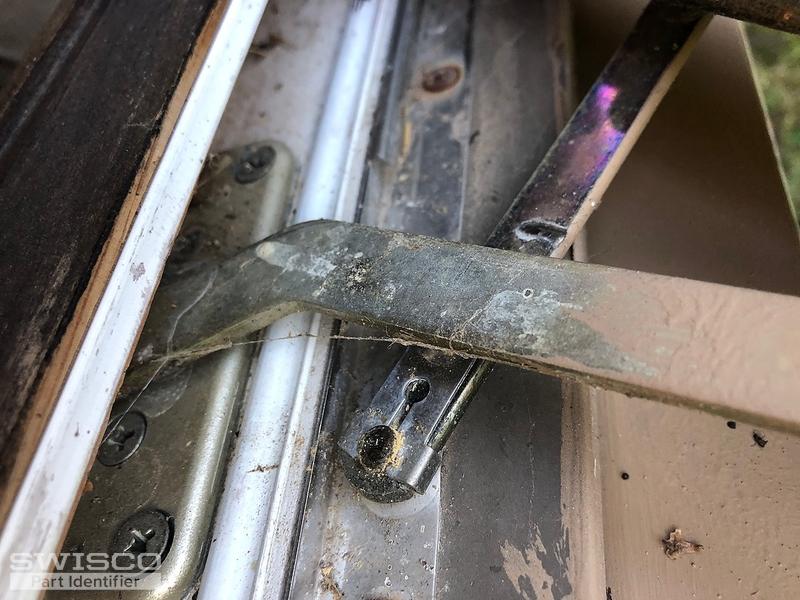

Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 8, 2019

It's still hard to make out. There are so many important details that are obscured so long as it's installed. I can at least tell you that it's a straight arm operator, which narrows it down. Start by looking at our 39-028E and 39-027E. Ultimately, you'll want to remove the original from the window and carefully compare it to our photos and dimensions. That will tell you for sure if they're a match.
A quick learner from La Crosse, WI says:
October 8, 2019
I will do that, thank you
