searching to purchase replacement Block and Tackle

A contractor from Seattle says:

Hi, my name is Ean, and I am a general contractor.

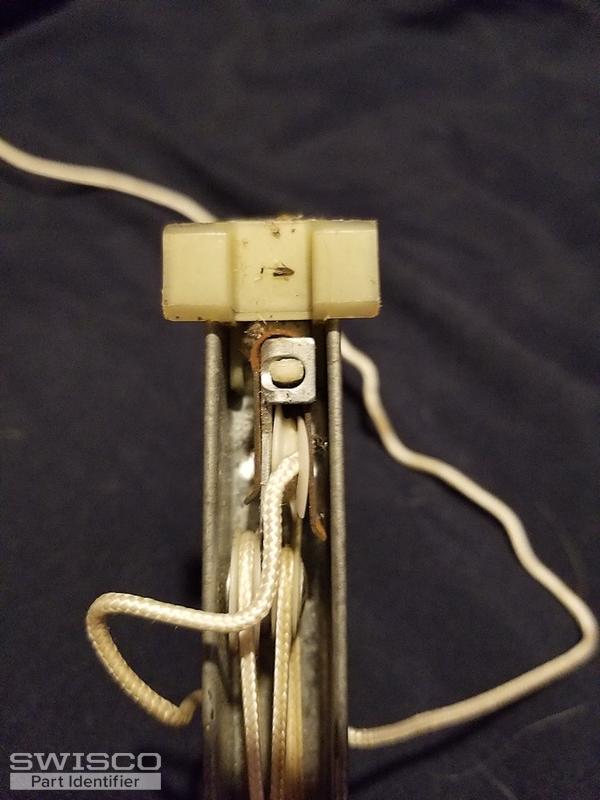

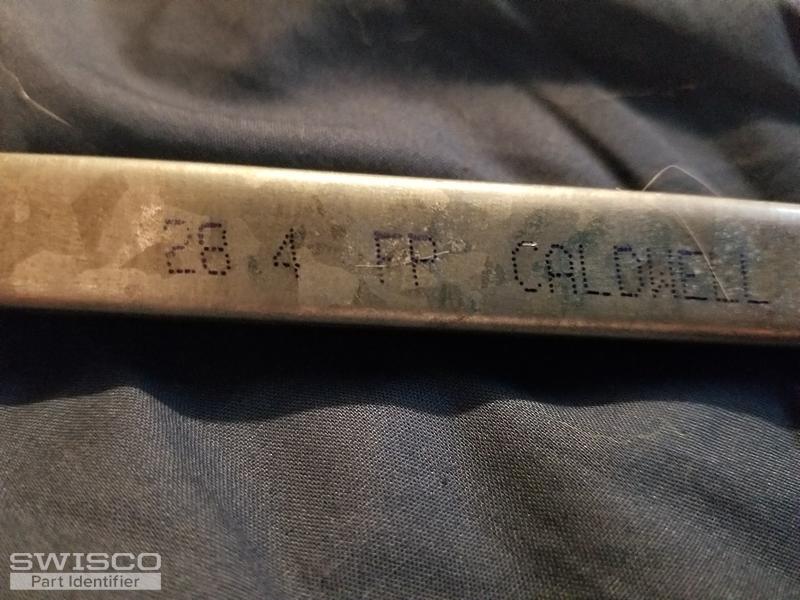

I have a client whos has 3 vinyl windows that all of the Block and tackle has failed and is wanting them replaced.

I am trying to find the proper replacement parts and purchase the 6 that I need.

Any help is appreciated.

Thank you,

Ean

Thumbnail of the uploaded file named 156476800_270164521480314_1685373957530011863_n.jp
Thumbnail of the uploaded file named 156957266_140472871294937_6778802884966731611_n.jp
Thumbnail of the uploaded file named 157660779_814490832750982_1267466668099226631_n.jp
Thumbnail of the uploaded file named 158121674_1445262182532230_3150050329778826303_n.j
Thumbnail of the uploaded file named 159188229_427517451647281_6700972682945133971_n.jp
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2840 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
