shoe repalcement or balancer replacement

A professional from pittsboro, nc says:

January 23, 2018

I have 2004 mw windows. if seen in your other help categories people looking for the same part. balancer metal with the indention on the end. balancer shoe looks very similar to 15-194 but thinner on the top. you've said in your other replies that you'd have to custom make them as they are out of production with balancer. balancer is square and 24" long. shoe is about 1" wide. I bought a couple from you and they are a match other than the thickness and they don't fit into the balancer. I would need about 15 sets

Casey from SWISCO responded:

January 23, 2018

Thanks for the detailed information. We would just need to see some photos of the balance removed from the window so that we can identify what proper balance shoes are needed for this balance. From there we can provide you with some advisement on replacing them.

A professional from Pittsboro, nc says:

January 23, 2018

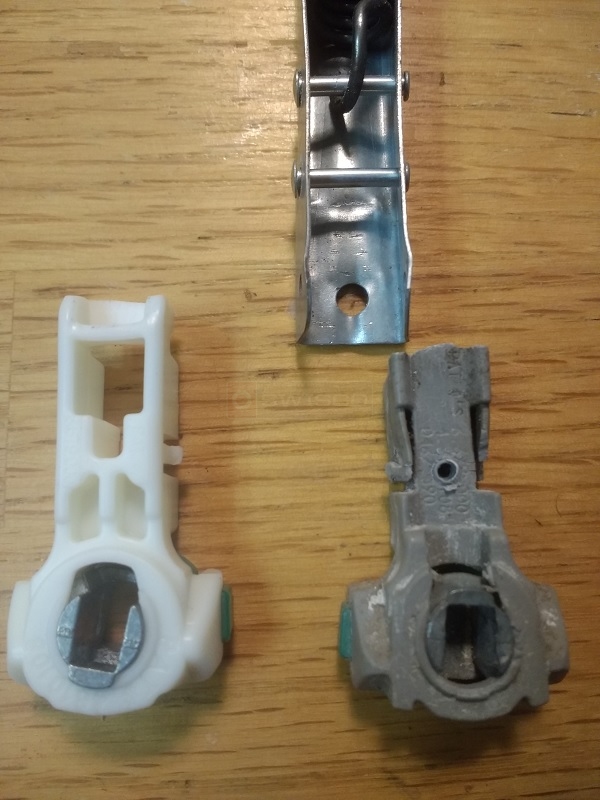

Here is the pic

Tom from SWISCO responded:

January 30, 2018

Thanks for getting back to us! This doesn't necessarily have to be custom made. You would, however, need an all new Series 795 balance. This comes with a 1-1/4" wide shoe by default, but once you receive it you can remove that default shoe and install the 1" wide 15-194 you ordered. They just snap on and off.

However, keep in mind that our Series 795 attaches at the top of the window using a screw tab, not a hook. If yours has a hook, then it will have to be custom made. Let me know if that is the case.

A professional from pittsboro, nc says:

January 31, 2018

it does have a hook at the top
thanks

Tom from SWISCO responded:

February 6, 2018

Ah, gotcha. Then I'll have to make up a special order link for 4 of these. Can you just tell me what number was printed on the original balance? Can you also confirm you only need 4?
