sliding door latch hardware with double hooks, about 8inches long.

Handy Person from Castro Valley, CA 94552
do you have a data or blow up of this type of lock mechanism?
6 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I'm afraid I don't know what part it is you're talking about. Are you referring to one of the parts we sell? If so, can you give me the product code?

Handy Person from Castro Valley, CA 94552

Hello Tom,

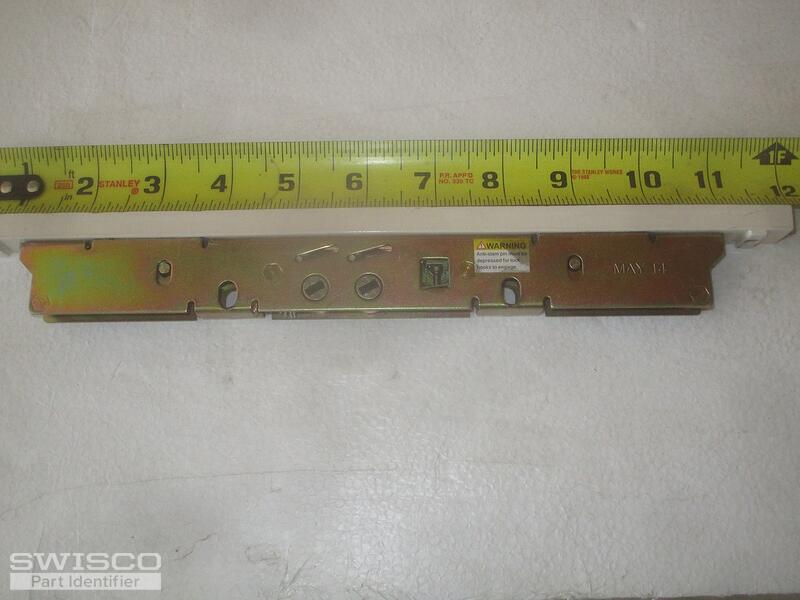

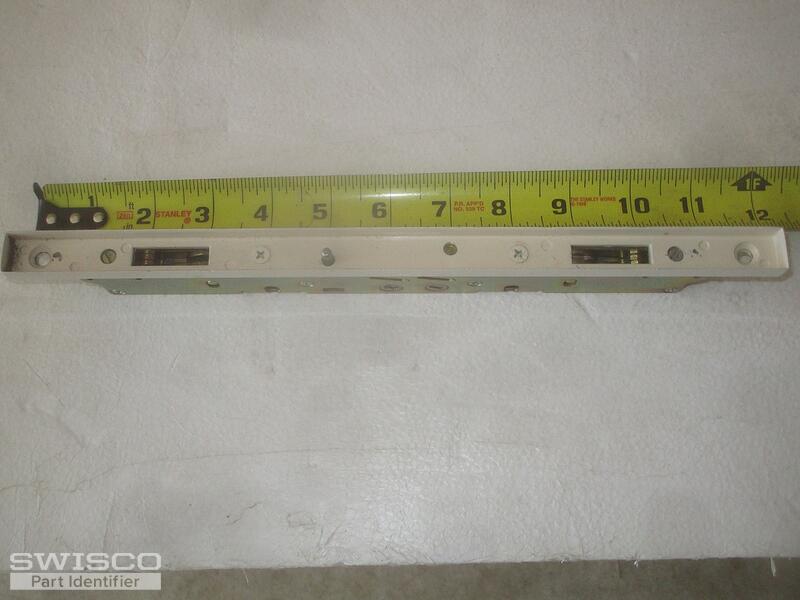

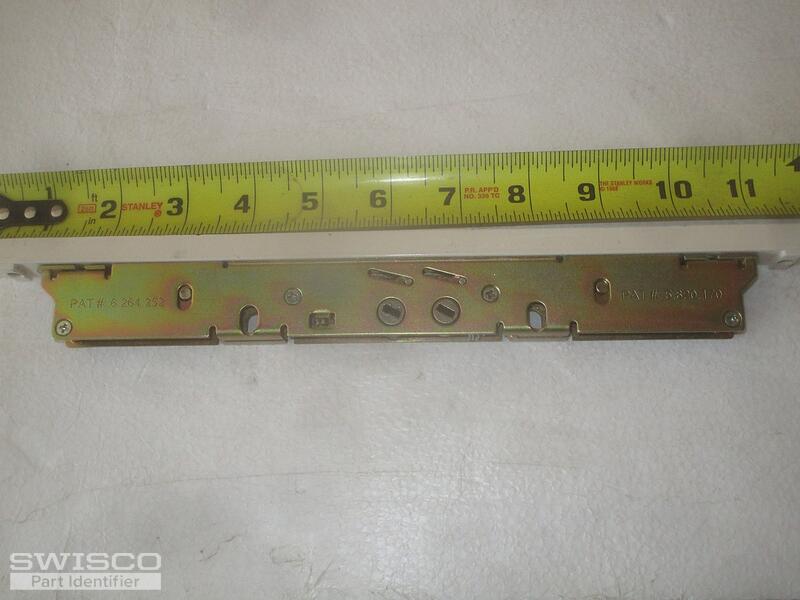

I am sending photos 0f the lock mechanism, which is ten inches in length w/o the front piece.

The lock has two PAT #'s, 6:264.252, and PAT #: 5.820.170, and the date May 14.

the handle is stamped TRUTH HARDWARE. Is this yours? Do you have a data sheet with a parts blow up? Can you supply a replacement? At what cost? Thanks for your assistance.

Chris

3 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thank you for these photos, that is a huge help. This is actually a little peculiar. We sell a bunch of mortise locks that are similar in design to this, but none of them have that same white, squared-off faceplate like yours. I've never seen that before.

My best recommendation at this point would be our 82-239. My hope is that you can reuse your old white faceplate with this mortise, as it lacks a faceplate of its own. Look it over and see what you think.

We actually don't make any parts, we're just a third party supplier.

Handy Person from Castro Valley, CA 94552
Hello Again,
What is the difference between the 82-239, and the 82-265?
do you stock both of these?
Thanks,
Chris
Tom
Tom from SWISCO
SWISCO
Expert

We stock both of these parts, yes. The major difference between the 82-239 and 82-265 is that the 82-265 has a much longer face plate. The 82-239 essentially has no face plate at all, which is why I recommended it for your application.
