sliding glass door handle/lock

Quick Learner from Jacksonville, FL

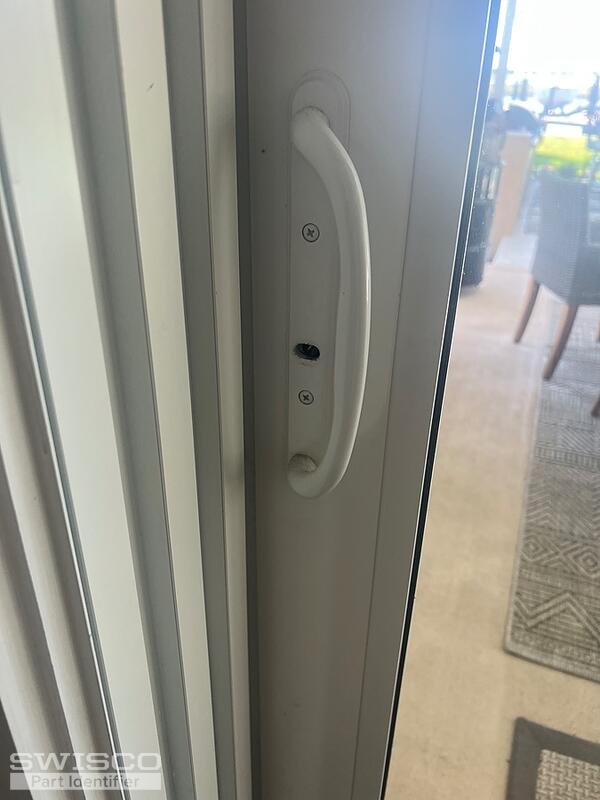

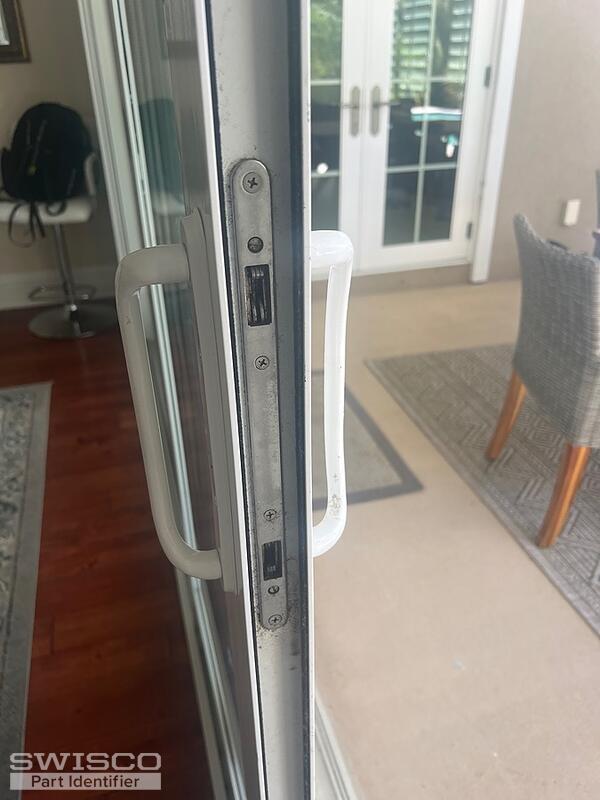

Which is the replacement part?
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. For the handle set, see our 82-089 or keyed 82-086. For the mortise lock, please compare to our 82-265. Let me know if you have further questions.

Quick Learner from Jacksonville, FL
Thank you for your reply. My existing handle is 10". Does it matter that 82-089 is 8.5"?
Bob
Bob from SWISCO
SWISCO
Expert

It does not. The pertinent features of handle sets are the hole spacing, or the distance between the center of each mounting hole, and the mortise locks that the handle set is compatible with. Your old handle set should have the same 3-15/16" hole spacing the 82-089 has. The 82-089 is compatible with the 82-265, which is a newer version of your old lock. Let me know if you have further questions.
