Home Owner from carmel california

Jul 20, 2023 2:15 am

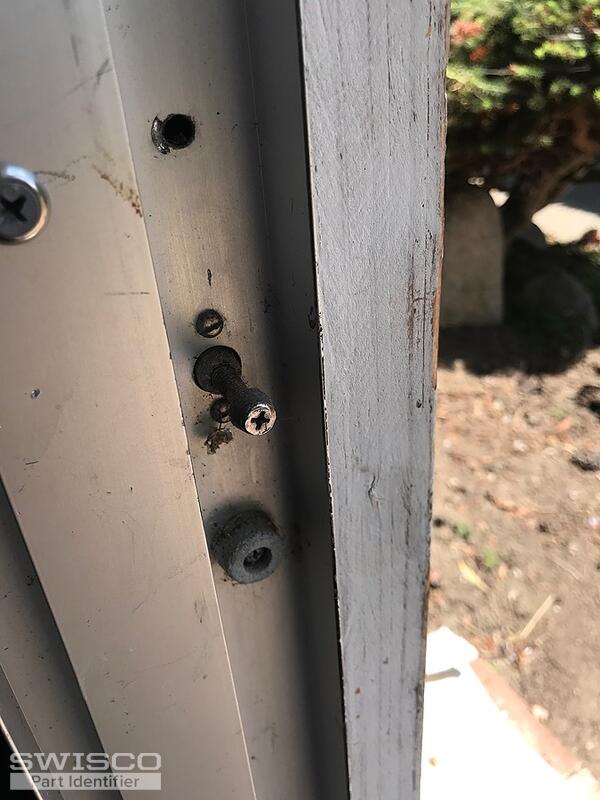

We have a sliding glass patio door whose handle has broken. It is different in the sense that there is not a 'hook' but the door slides over a 'bayonet' screw that is attached to the door frame part of the door assy. I would need the handle as the attachment point for handle is entach.
I don't want to order a new door, it is not broken but we need the security

6 Replies

Jasmine from SWISCO

Jul 20, 2023 4:04 pm

Thanks for posting! There is a chance that we can supply you with a replacement handle set for your patio door but I'll need a bit more information to assist with identifying the right part.

To start, may I see a photo of the existing handle set? It would be helpful to see photos of any other compatible hardware as well.

Let me know if you have any questions in the meantime.

Home Owner from carmel california

Jul 21, 2023 5:45 pm

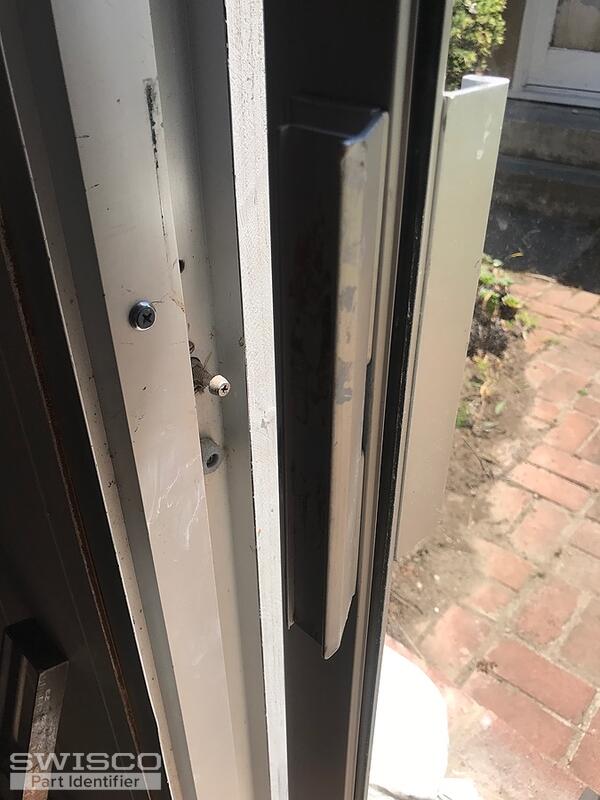

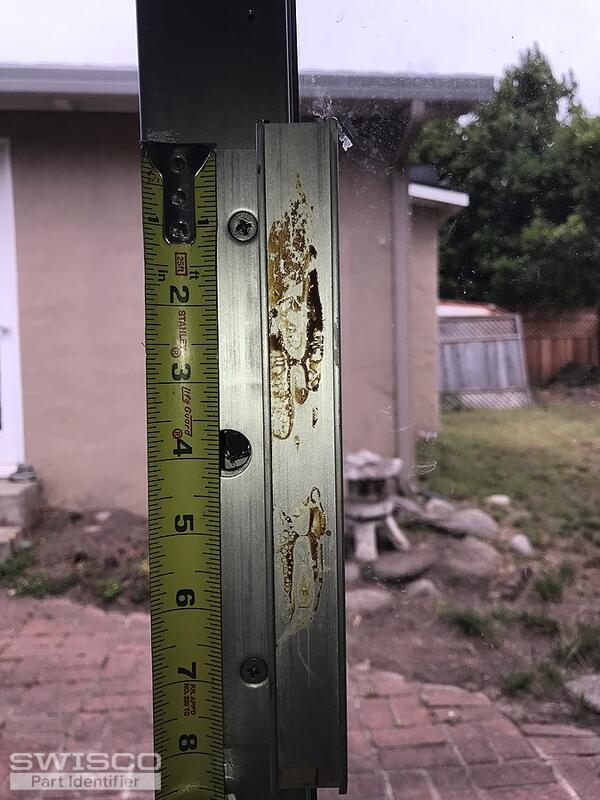

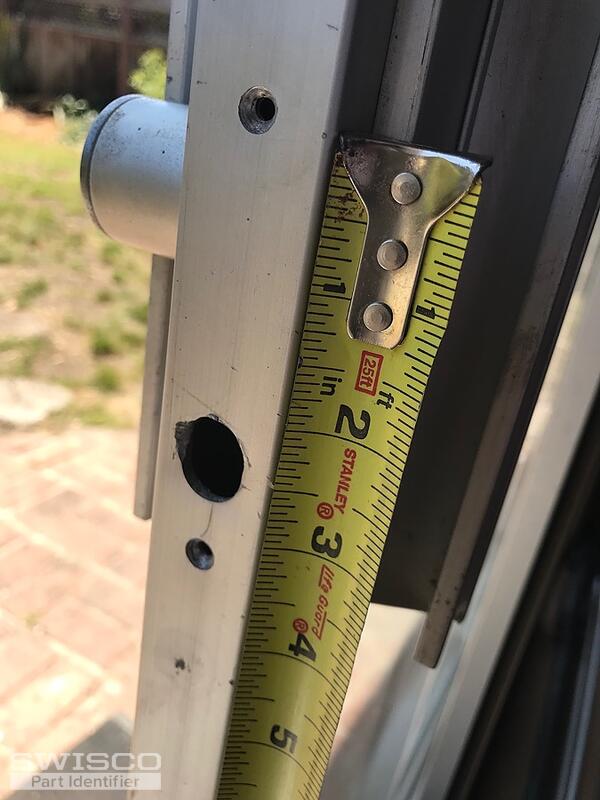

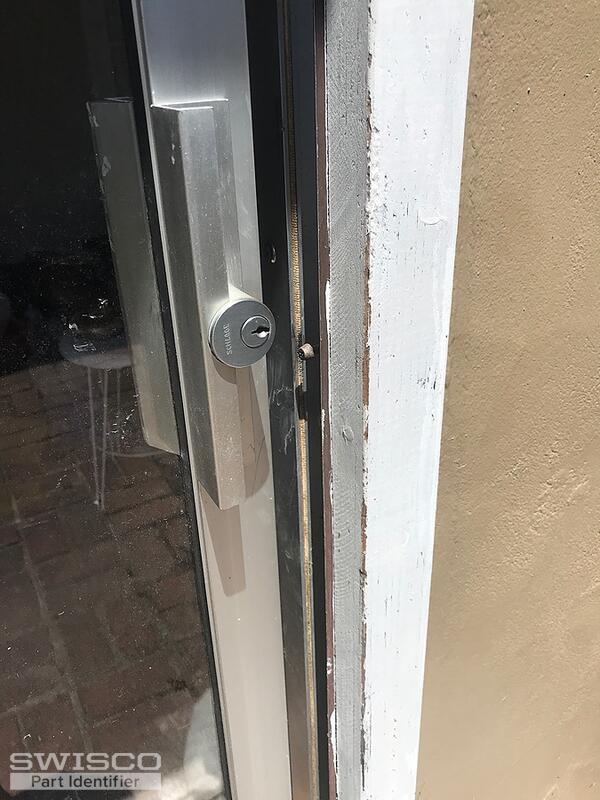

My handle

5 user uploaded images

Jasmine from SWISCO

Jul 24, 2023 11:59 am

Thanks for the photos. I'm sorry to say that we do not have a patio door handle set that would work to replacement the handle set and latch your searching for.

I apologize that we cannot be of assistance with this repair.

Feel free to reach out with any other hardware repair projects you may have!

Home Owner from carmel california

Jul 24, 2023 7:16 pm

Do you have a handle assembly that I could install into my existing door to update my door handle and security?
I can cut the existing male part and install new assembly. I'm handy

Jasmine from SWISCO

Jul 25, 2023 8:37 am

There is a chance that our surface mount assembly, part 82-005 could work as a replacement, however, I cannot make any guarantees. To convert this to something we a keyed lock, you'd have to use the 82-306 Keyed Exterior Sliding Door Pull. Look over the dimensions and design of each part to determine if this might work for you.

Alternate image for 82-005

Alternate view of 82-306

Hole center dimensions for 82-306
