sliding patio door rollers

Home Owner from Hanover Park Ill.

Apr 16, 2017 1:56 pm

door rollers have a 1 embossed on it.it has plastic roller bearings . One looks like it has one bearing missing and the second one is missing most of the roller bearings.

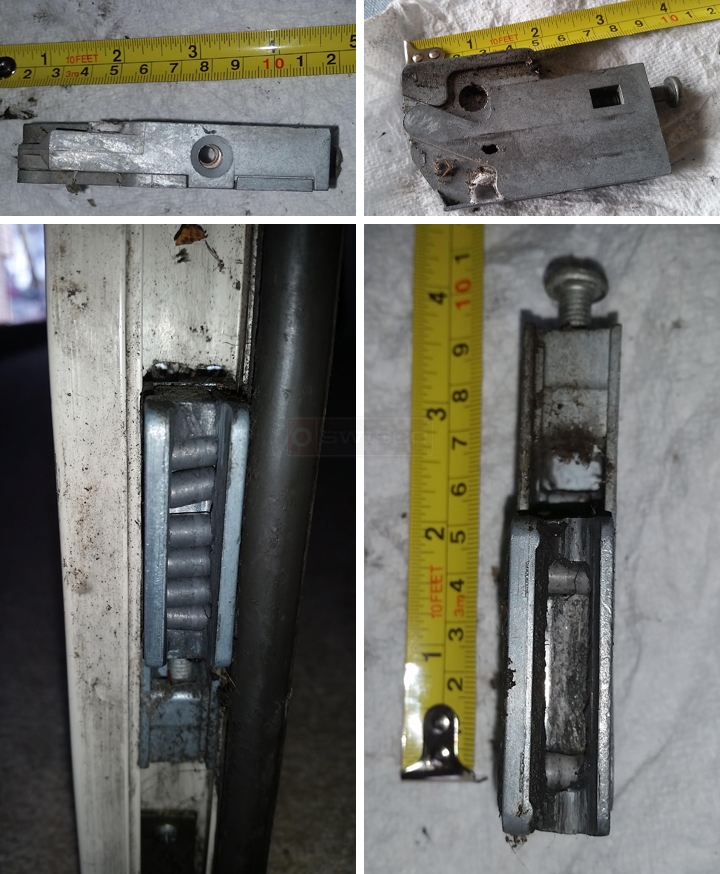

User submitted photos of patio door hardware.

3 Replies

Casey from SWISCO

Apr 19, 2017 1:52 pm

I'm afraid this roller has been discontinued and is no longer available. That said, a friend of ours says the 81-279 works as a nice replacement. The adjustment screw is a little higher, but the wheel rolls nicer than the noisy old type tank treads.

Professional from CA

Apr 19, 2017 2:30 pm

Check the screw before putting the door back in the frame. If the adjustment screw can't be reached after installation, put a shim inside the slot to bring the roller out a little.
