spiral balance window adjuster with accessories

A home owner from Florida says:
March 19, 2018

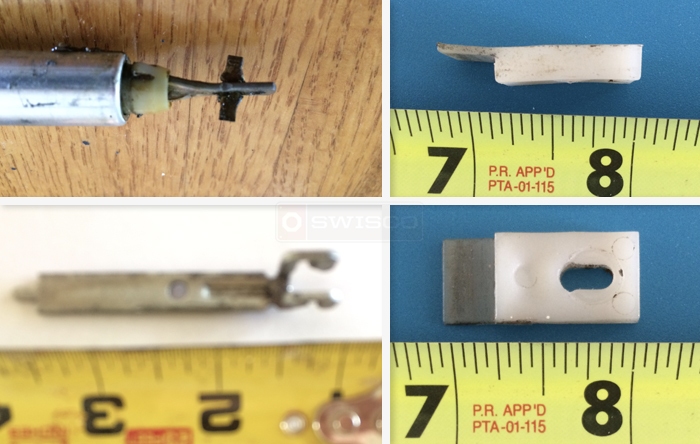

I need 4 spiral balance - 30 inches long. The existing ones have a white tip. The weight of the window (using a bathroom scale) is 32#. The window is a double hung non-tilting sash. I need 8 plastic clips as shown on picture and 4 metal clips as pictured.

There is a sticker on the window which I have a picture of but can only load 5 pics so I will type what is on the sticker
AAMA Manufacturer stipulate conformity to ANSI?AAMA 101-85
Series 500 DH_R20 MST: 4664
Spiral Balance
Profile picture of Paul
Paul from SWISCO responded:
March 23, 2018

Thanks for contacting us. Based on your pictures and information, I recommend our S500-30 spiral balance with a black tip color option. As for the metal balance carrier, I feel our 17-012 looks like a good choice. We also recommend a charging tool like our 75-005 to make installation easier, if you don't already have one.

I'm having trouble finding this white face guide. The closest we have to this style is our 67-002, but this definitely looks like it's too small. Could you tell me the specific dimensions for this part? I can't make them out from your photo.
30" Series 500 Spiral Balance
30" Series 500 Spiral Balance
S500-30
$9.72
Spiral Balance Charging Tool for Non-tilt Windows
Spiral Balance Charging Tool for Non-tilt Windows
75-005
$12.10
Bracket, #32
Bracket, #32
17-012
$1.20
#8 x 1" SS Philips Pan Head Screw
#8 x 1" SS Philips Pan Head Screw
33-017
$0.21
#8 x 3/8" SS Pan Head Philips Screw
#8 x 3/8" SS Pan Head Philips Screw
33-072
$0.30
Screw-on Face Guide
Screw-on Face Guide
67-002
$1.07
