spiral balance and pivot shoe replacement

A home owner from Monmouth Junction, New Jersey says:

Hi. All my windows can't stay up. The pivot shoe all cracked (plastic). The RED spiral balance length is 29", the BLUE pivot shot is 2" (L) x 1 1/2" wide (track wall-to-wall). Please see photos for the rest of the dimensions.

Thank you in advance for your help and please let me know if you need more information. Terry

Thumbnail of the uploaded file named 20190820_193452.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello,

We'd be happy to help but we'll need a little more information to help you. We'll need to see a picture of the pivot shoe and spiral balance removed from the window, as well as the width and thickness of the pivot shoe since it's impossible to get accurate measurements while it's still installed. We'll also need you to confirm the diameter of the spiral balance tube. From there, we should have the information we need to recommend the correct replacements for you. Thank you!

A home owner from Monmouth Junction, New Jersey says:
As requested, attached please find photos with the pivot shoe and spiral balance dimensions.

Thank you in advance for your help.

Regards,
Terry
Thumbnail of the uploaded file named E20190827_201239.jpg
Thumbnail of the uploaded file named E20190827_202344.jpg
Thumbnail of the uploaded file named E20190827_200137.jpg
Thumbnail of the uploaded file named E20190827_200529.jpg
Thumbnail of the uploaded file named E20190826_135948.jpg
Profile picture of Bob
Bob from SWISCO responded:

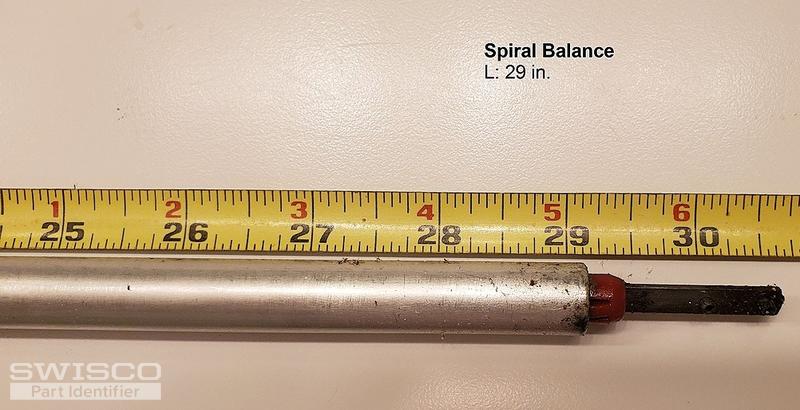

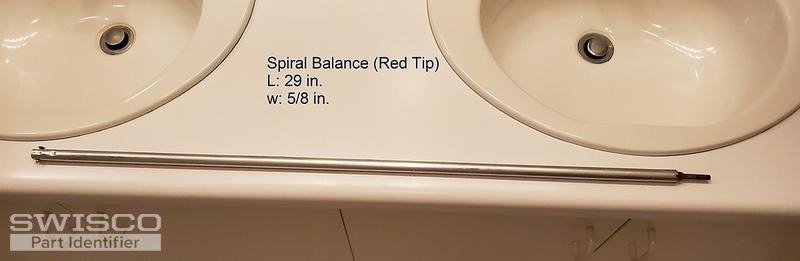

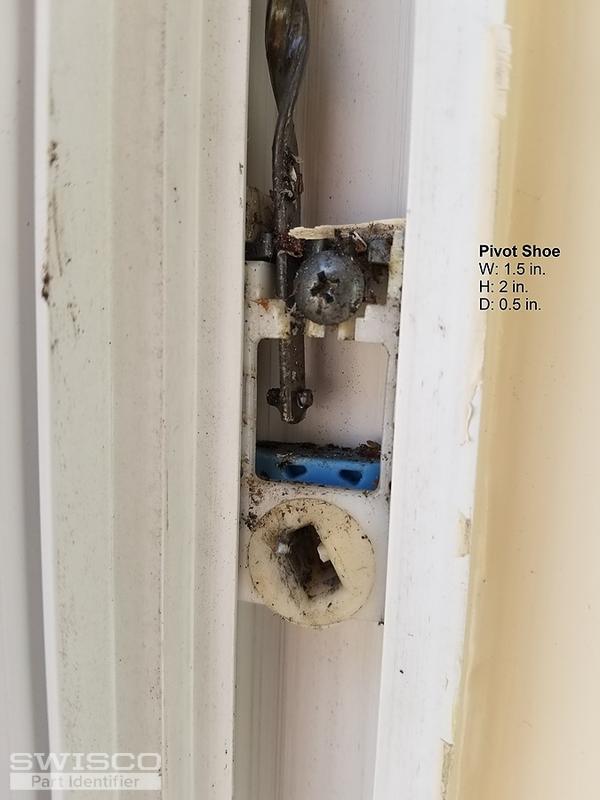

Thanks for the reply, Terry. The Spiral Balance looks like it might be our S600-29 with a Red Tip option; look it over just to confirm. As far as the pivot shoe goes, we have no pivot shoe that is 1-1/2" wide. I'm afraid these dimensions just won't be reliable enough unless you remove the shoe from the window, via the method that Tom showed in the video above. Something tells me you have our 15-046; but you'll still want to remove the shoe and go over the dimensions to be absolutely sure. Let me know what you find.
