spiral balances

A quick learner from Haw River, NC says:
October 18, 2022

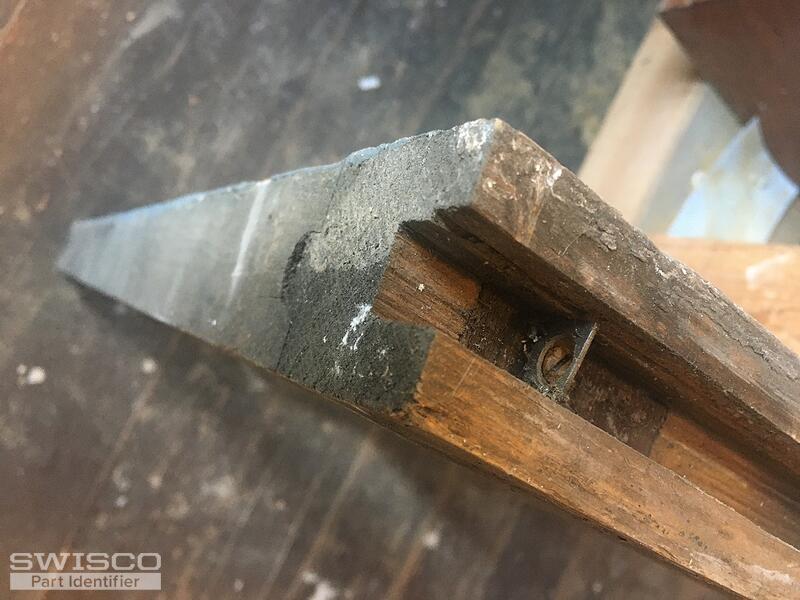

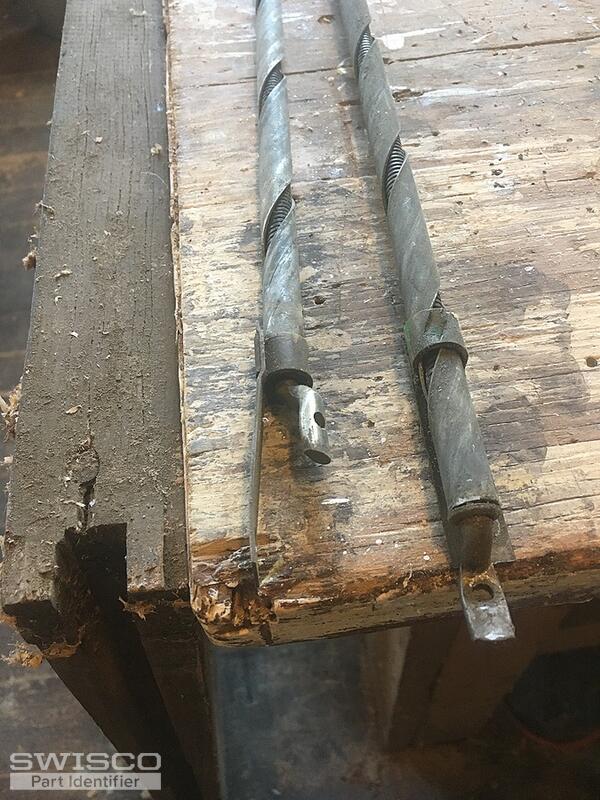

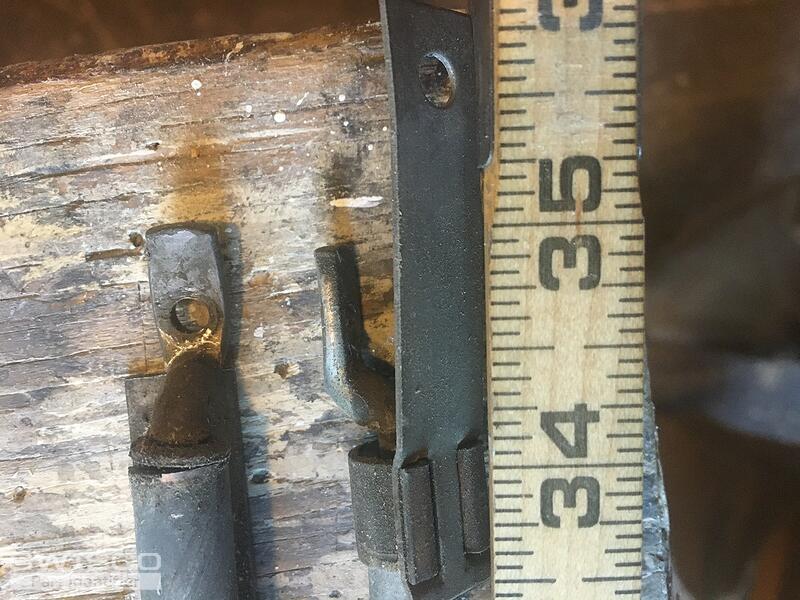

I have 20 sashes from an old church, each weiging 16.5 lb and 36" tall. The existing slot for the old balance mechaniasm in 5/8 x 5/8 and runs the full length of the stile. What do you recommend?

Pictures enclosed.
Thumbnail of the uploaded file named IMG_2519[1].JPG
Thumbnail of the uploaded file named IMG_2520[1].JPG
Thumbnail of the uploaded file named IMG_2517[1].JPG
Profile picture of Casey
Casey from SWISCO responded:
October 24, 2022

Hello,

Unfortunately, we do not carry exact replacements for your old-style balances but many of our past customers with older wood windows have been able to adapt the S500 spiral balance and 17-012 bracket to replace their original hardware. Based on your sash weight, you would need a red tip option for the replacement balances. Take a look and see what you think.

Guide: How to adjust a spiral balance on a non-tilt window
How to adjust a spiral balance on a non-tilt window
A quick learner from Haw River, NC says:
October 24, 2022
Casey,
The installation guide you enclosed is a bet confusing. I am looking for balancers for lower sash only. Is there some instuction manual that goes into more detail? It looks like there is a hole at the top of the balance that gets screwed to the window frame while the sash is not in place. I need a step by step instruction.
Andrew
Profile picture of Casey
Casey from SWISCO responded:
October 25, 2022

Unfortunately, we do not have more detailed instructions for these older windows that use spiral balances but we do have an updated version of the guide on our company blog here. You are correct that the top of the balance tube attaches to the window jamb with a screw, while the bottom of the spiral anchors to a bracket attached to the bottom corner of the sash. These windows can be tricky to work on, so you may want to get a local professional involved who can help you through the replacement process.
