General Aluminum spiral replacement

Home Owner from Flower Mound, TX
I have several windows that will need spiral replacement. I believe the manufacturer is General Aluminum. House was built late 1990's.

Window measures 35" x 60". Rod ID is 3/8" and 30" long. Bottom clip(?) is labeled 63. Attached are a few photos. I would need parts and instructions, please!

Thank you

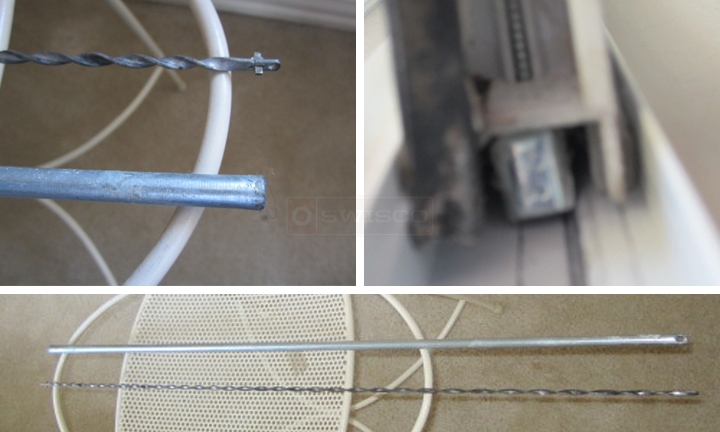

User submitted photos of a window balance.
6 Replies
Paul
Paul from SWISCO
SWISCO
Expert
Thanks for posting! According to your specifications, you may want to look at our S400-30 spiral balance. Does that look right? I'm not able to make out the #63 clip at the bottom, though. Could I see a closer picture of that?

Also, check out this handy guide on non-tilt window spiral balances:
Home Owner from Flower Mound, Tx
Here is a clearer picture of the clip. Window measures 35" x 60". Rod ID is 3/8" and 30" long. Bottom clip(?) is labeled 63. I would need parts and instructions, please!

Thank you.

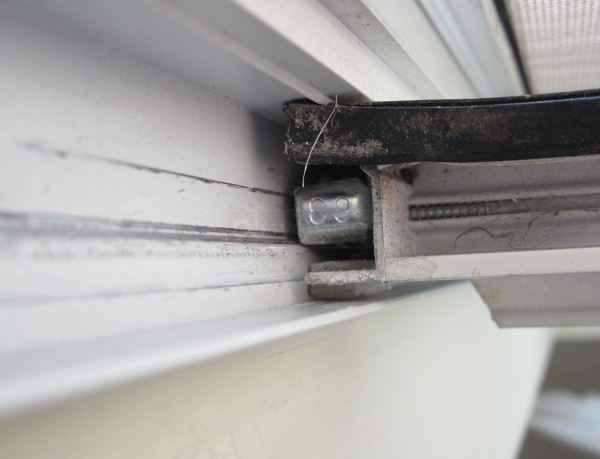

User submitted photos of window hardware.
63
Casey
Casey from SWISCO
SWISCO
Expert
Thank you! It's still a bit hard to make out. How about our 17-052? Could that be a possible match? If you aren't sure, it would be best if we see if removed from the window.
Quick Learner from Flower Mound, TX
Could you tell me how to remove this part? (63)
Paul
Paul from SWISCO
SWISCO
Expert
You know, the more I look at your set up, and the more we have trouble with it, the more I become convinced that maybe these windows are not meant to be repaired. Many non-tilt windows with this kind of balance hardware simply cannot be removed. That is just the way they're manufactured; the only way to get them out would be to take apart the entire window, and we definitely don't want to do that.

How about this. I suspect that the "63" clip is screwed in from the side. I think it's bent, because usually they're meant to be angled down. That would account for why we don't recognize it. We aren't seeing the whole thing! You may be able to get a screwdriver or needle nose pliers to pull it down. We then may be able to see the fork on it.
