storm door PGT

Quick Learner from Melbourne, FL.

Mar 11, 2024 1:49 pm

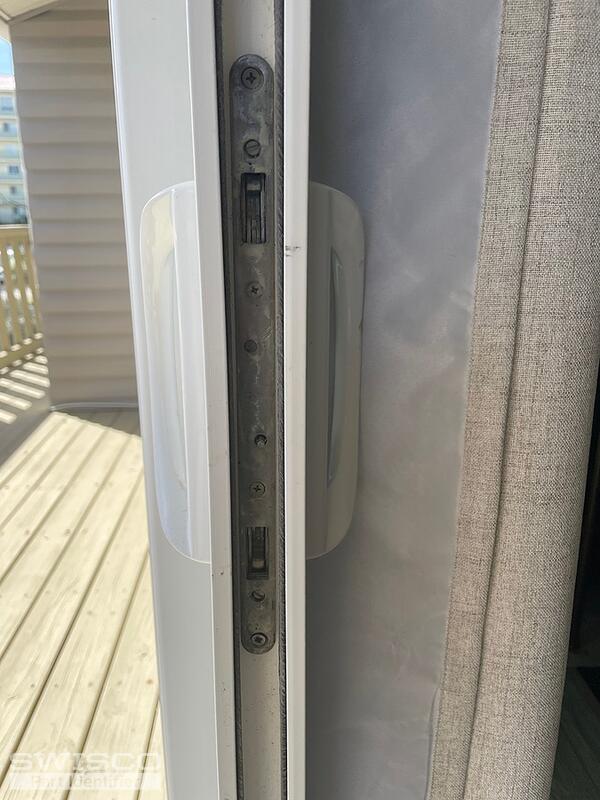

Client needs this to be a lockable latch with a key from the outside.

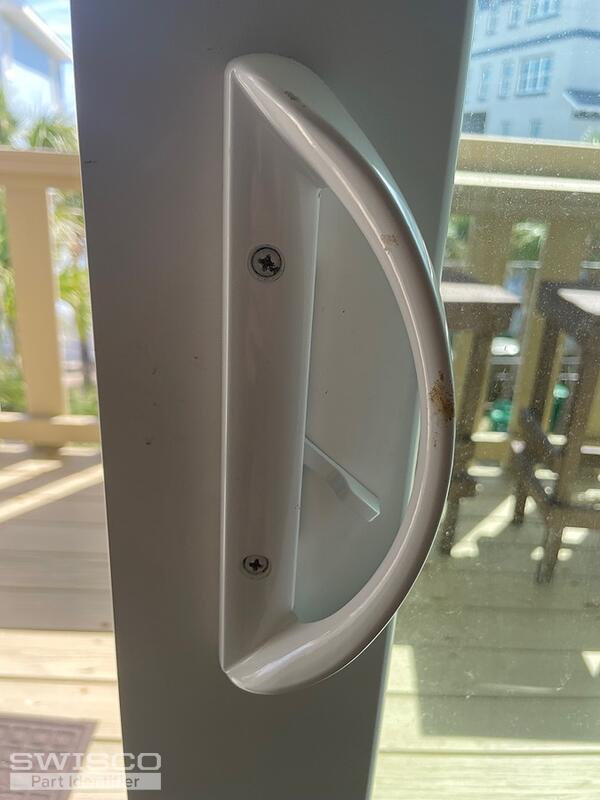

Currently only a finger latch on the inside of the door

5 user uploaded images

6 Replies

Quick Learner from Melbourne, FL.

Mar 11, 2024 2:01 pm

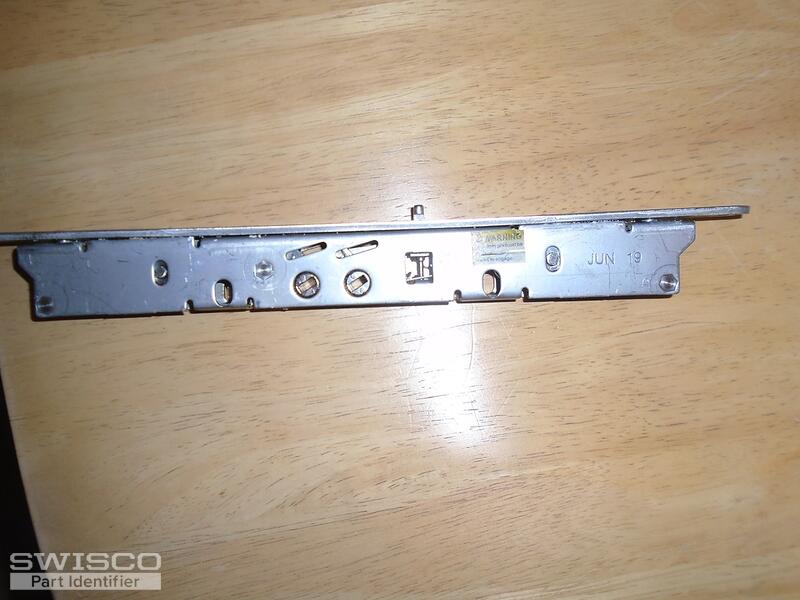

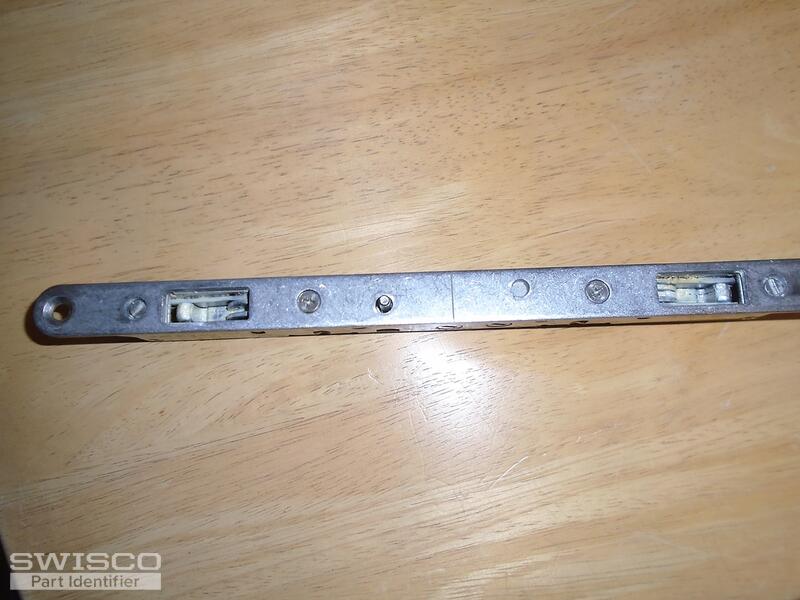

This is the second set of photos I am sending as I forgot to mention the current mechanism is 11" center to center & 3/4" wide on the face 1/2" on the back and 1 3/16" deep

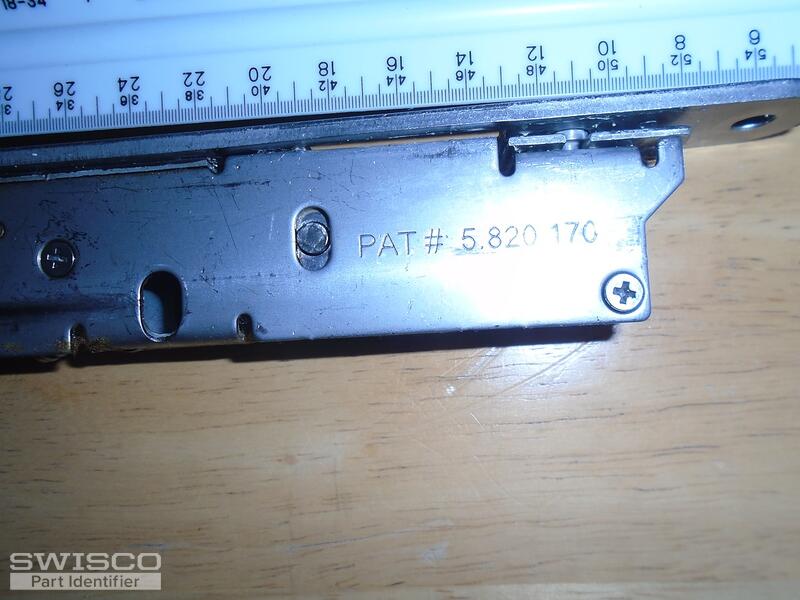

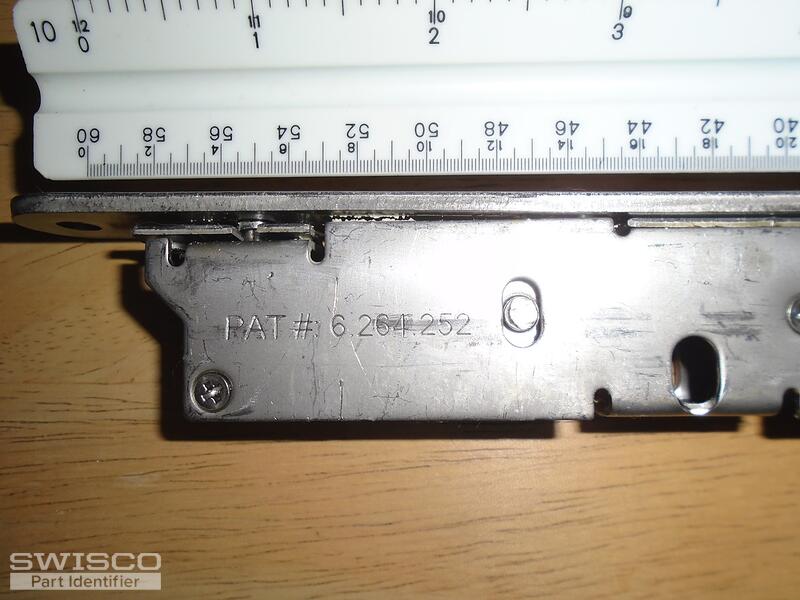

PAT #'s stamped on are 5 820 170 and 6 264 252

Client requires a locking latch with a key for entry from the outside.

Sorry I sent two requests for help but figure you will need the extra info.

Cheers !

Tony

5 user uploaded images

Lauren from SWISCO

Mar 12, 2024 12:10 pm

Hi Tony, thank you for posting,

Please start by reviewing the style and dimensions of the 82-265 mortise lock to see how it compares to the original.

For a keyed exterior handle. Please review the 82-030A or 82-030B handle sets with a 3-15/16" installation hole spacing from center to center. The different between these two is the placement of the thumb lever. The 82-030A has a centered key lock and thumb lever while the 82-030B has a offset key lock and thumb lever. Unfortunately I cannot confirm from the photo which placement you have.

Please review and let us know what you think!

Quick Learner from Melbourne, FL.

Mar 12, 2024 1:20 pm

Thanks so much for the quick response. They will both work, the original has two placement positions for the thumb lever so I can not see that this is an issue ?

Does it matter which one I use ?

Thanks again !

Tony

Lauren from SWISCO

Mar 12, 2024 3:35 pm

Hi Tony,

If the door has cutouts for both a centered or offset thumb lever, it should not matter which set is used. Please let me know if you have any additional questions!

Quick Learner from Melbourne, FL.

Mar 12, 2024 4:43 pm

Many thanks again, as, I ordered the center lock . If iworks great, if not I'll order the offset model.
Thank you again.
