tilt window cam

Question

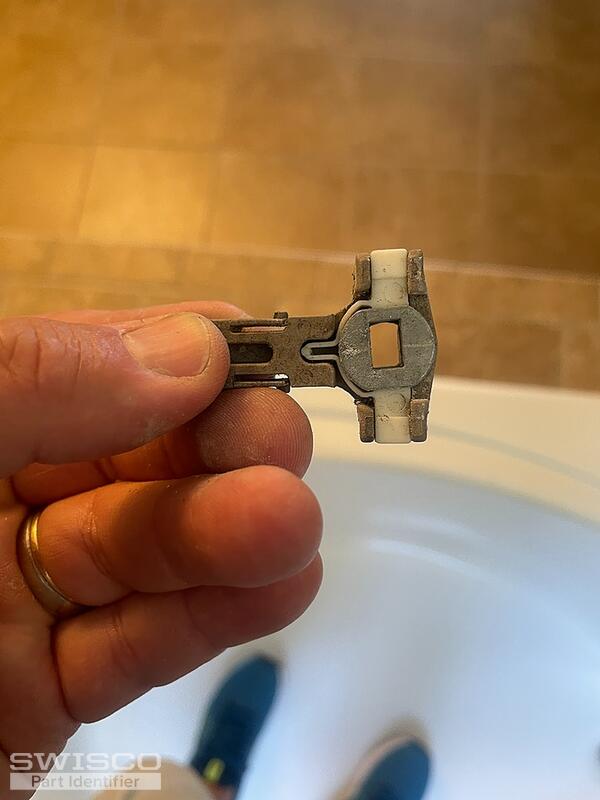

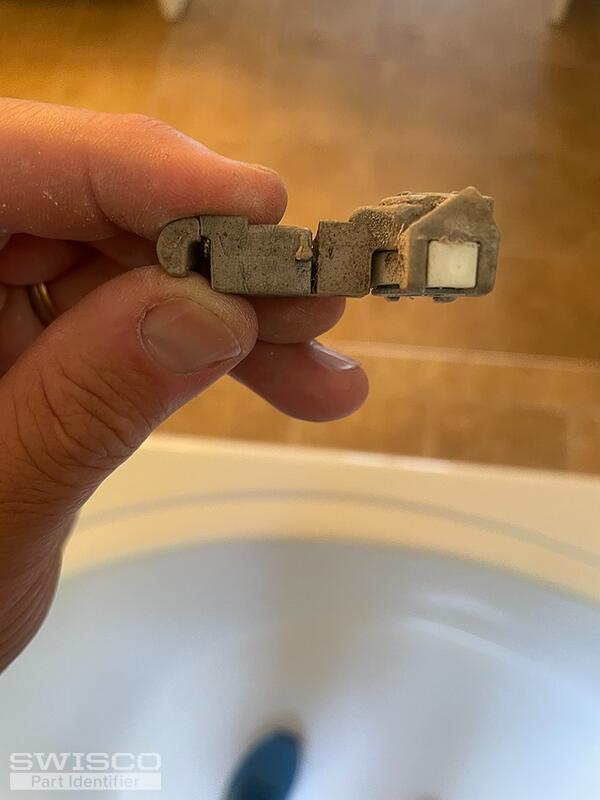

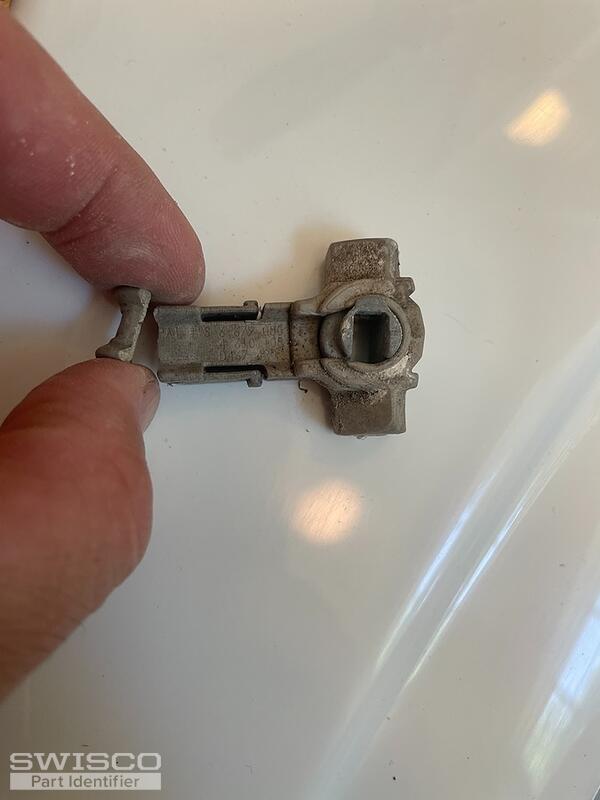

The windows this goes in were mfg in 2007. It looks like 15-236 to me, but I'd like your opinion. Need to replace several of these, the clip for the spring broke.

Jasmine · Accepted Answer

Thanks for reaching out! Your T-Lock balance shoe appears to be the open cam 1-1/4" 15-195B. Which is used along with our Series 795 Channel Balances.

To determine the balances needed for your window, you'll need to confirm the length of the metal channel as well as the stamp from the metal. Once you have confirm this information, you'll be able to select the length you need from the list of balances in the link above. Then you'll need to select the stamp option.

If your balance channel has a hook on top, you'll need to make sure that the space where the hook installs at the top of the window is square in shape. When there is a square shaped hole, the 26-200 balance screw plug along with the 33-016 screw can be used to accommodate for the screw tab attached to our standard balances. If it is not square in shape, please let me know as this will need to be a custom order.

Feel free to reach out with any questions you may have!
