triple coil balance and pivot shoe and support

A home owner from Martinsburg, WV says:
December 21, 2021
My triple coil support failed. I am looking for the replacement parts for a triple coil balance. Like to replace the coils, pivot shoe and support for simonton window. current coils I removed has the following info on them #4.0 35" P 5232208.

If you could send me the part numbers to type into your site to order them I would greatly appreciate it.
Profile picture of Casey
Casey from SWISCO responded:
December 22, 2021

Hello,

We'd be happy to help but we would need to see photos of your coil balance assembly removed from the window to determine the correct replacement parts to recommend. Thank you!
A home owner from Martinsburg, WV says:
December 26, 2021

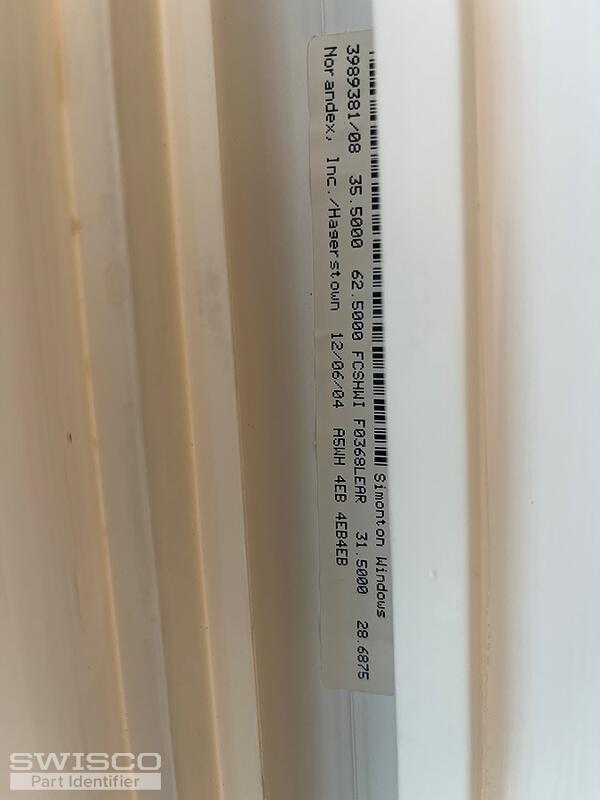

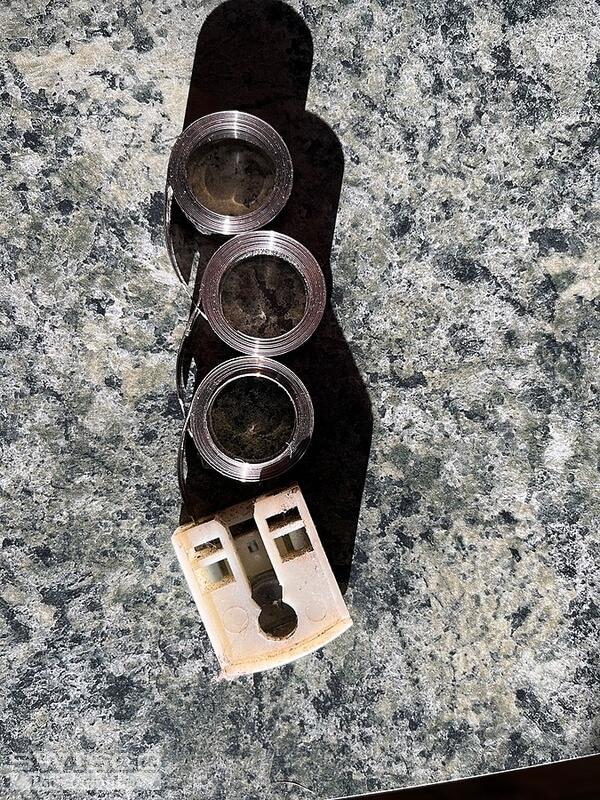

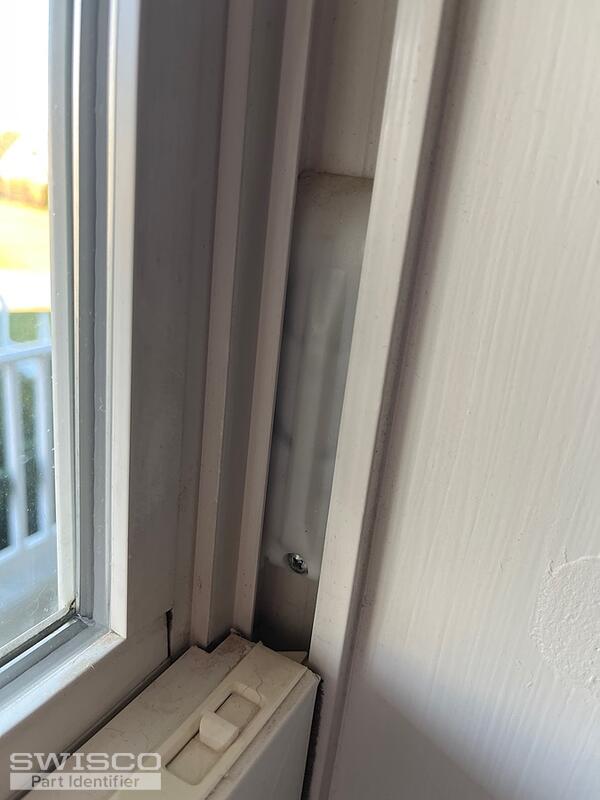

Attached is the photos requested.

From original message:

My triple coil support failed. I am looking for the replacement parts for a triple coil balance. Like to replace the coils, pivot shoe and support for simonton window. current coils I removed has the following info on them #4.0 35" P 5232208.

If you could send me the part numbers to type into your site to order them I would greatly appreciate it.

Thank you

Mike
Thumbnail of the uploaded file named F8932EE0-410C-40C8-9CE1-6A6A1A014A33.jpeg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Casey
Casey from SWISCO responded:
December 28, 2021

Take a look at our 15-199 pivot shoe, which uses the 1/2" thick Series 160 and 3/8" thick Series 165 coil springs.

Make sure to compare our dimensions to your original hardware to see if these parts match up to what you need. Thank you!
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
