trying to find replacement pivot lock shoe for windows installed in 1999

Home Owner from Union County, NC

Sep 5, 2022 6:06 pm

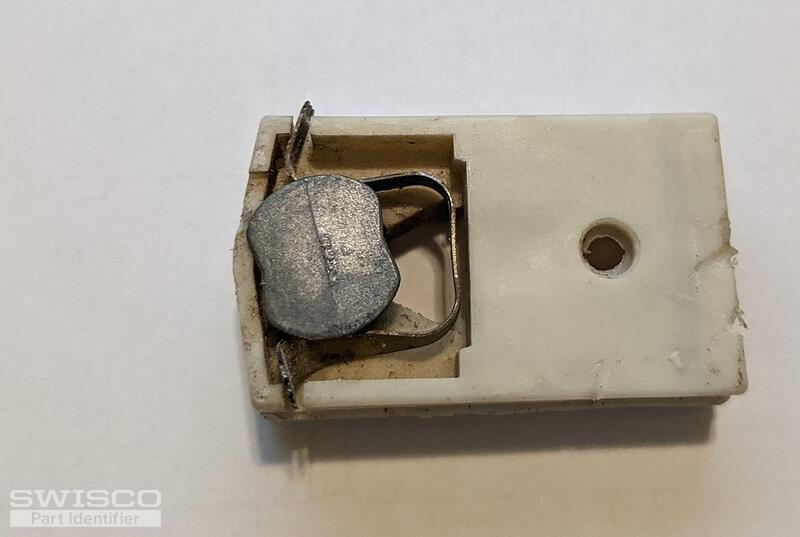

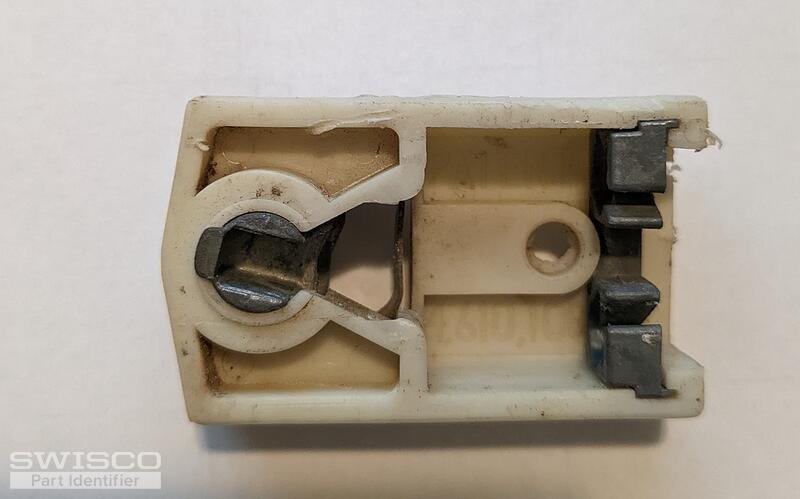

only marking is a patent # 4.610.108

size: 2" x 1 1/4" x 1/2". Looks closest to 15-179 but has a screw hole.

I have ten windows that need new parts.

Thanks.

2 user uploaded images

4 Replies

Tom from SWISCO

Sep 8, 2022 10:56 am

The 15-179 will not replace your pivot shoe as it is only 15/16" wide, compared to your 1-1/4". That's way too small.

Instead, you should consider our 15-129. This is the same width. It also has a hole in the back like yours, but that honestly doesn't matter. These don't screw into the window in any way.

Detail of 15-129

Home Owner from Union County, NC

Sep 8, 2022 11:54 am

Thank you!! I hadn't noticed that item when I scrolled through the catalog. Of course, being overwhelmed by weird stuff could have contributed to missing it. Appreciate the help and will head to the order section.

Tom from SWISCO

Sep 8, 2022 12:02 pm

Totally understandable! They all do look very much alike.

Please let me know if you had any other questions and I would be more than happy to assist you.
