unkonwn pivot lock shoe

A handy person from North Haledon, NJ says:
September 5, 2022
I bought this house 14 years ago and all windows are brown made by unknown manufacturer. I know that the spiral balance rods are red tip 5/8" this, some 27" long and others 24.
the only thing I am not sure about are the pivot lock shoes. So I am attaching some pictures hoping that you will be able to figure out the model and part number so that I can go ahead and place my order.

Thanks and kind regards
Thumbnail of the uploaded file named IMG_0314.jpeg
Thumbnail of the uploaded file named IMG_0316.jpeg
Thumbnail of the uploaded file named IMG_0317.jpeg

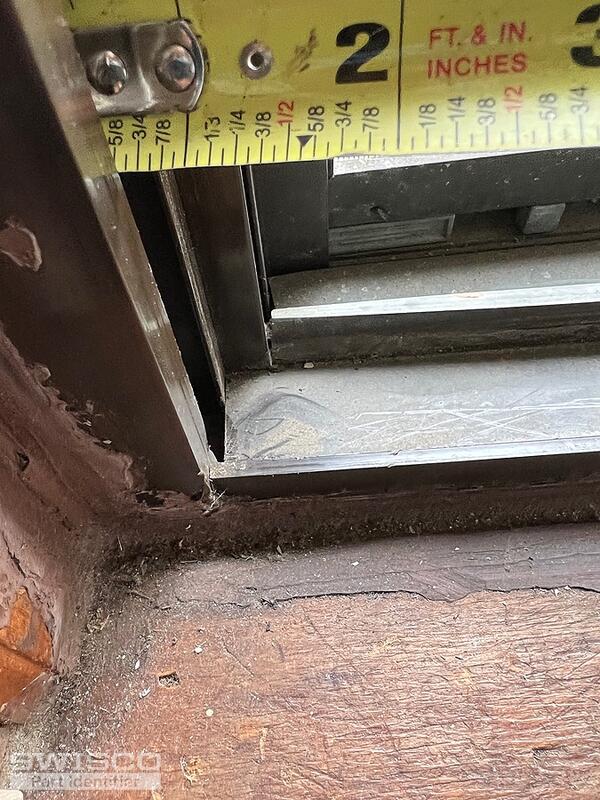

Thumbnail of the uploaded file named IMG_0318.jpeg

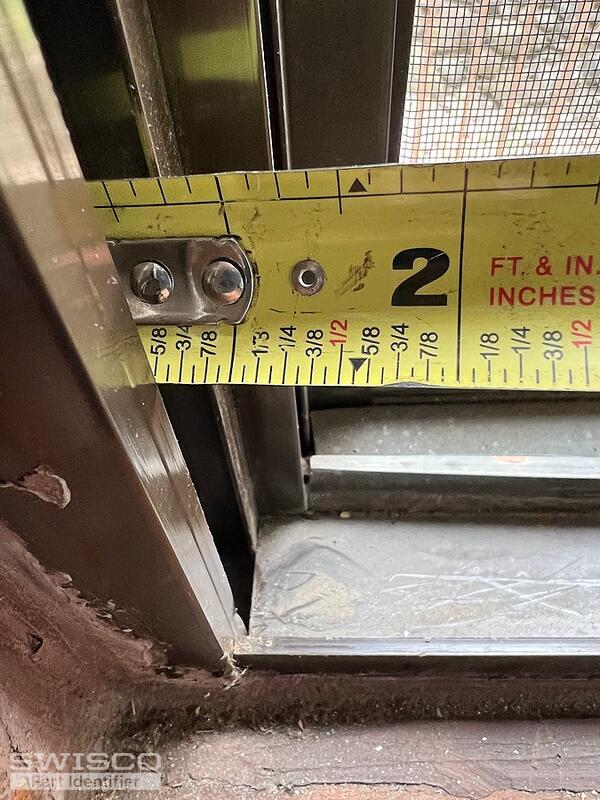

Thumbnail of the uploaded file named IMG_0319.jpeg
Profile picture of Tom
Tom from SWISCO responded:
September 7, 2022

Hello! At first glance, your pivot shoe looks like a match for our 15-046. however you will need to review our dimensions to ensure that everything lines up. That's the only way to be sure. The best way to do that is to remove the old shoe and measure the part itself, not the space in which it installs.

Alternate image for 15-046
Alternate image for 15-046
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
