vinyl double hung window springs snapped
Handy Person from Reedsville, WI
Oct 12, 2024 12:11 pm

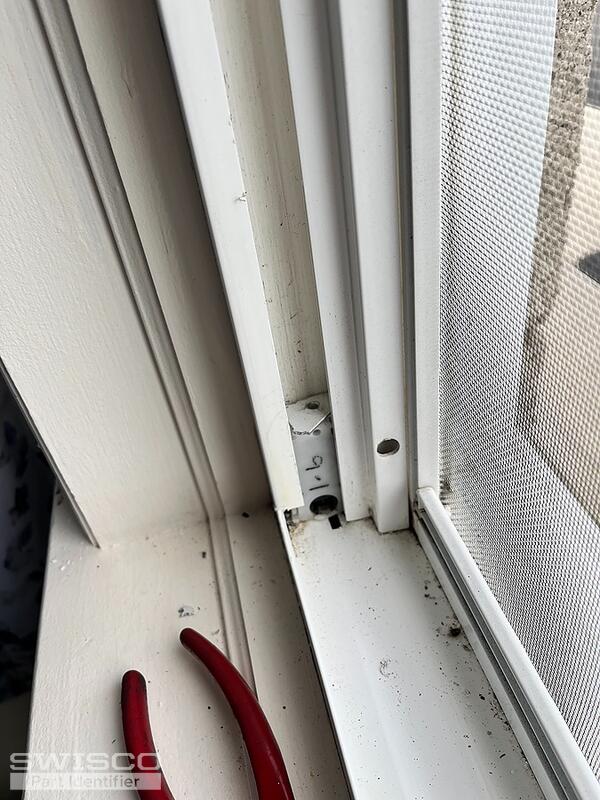

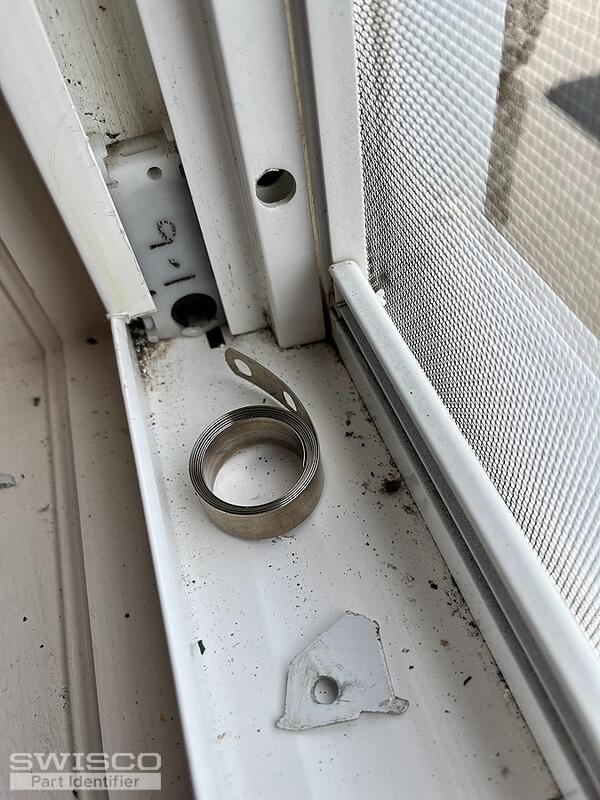

Vinyl Double hung Gorell window is heavy to lift due to coil springs let loose from the bottom. Clips broke? How do you hook the spring to the coil housing? Do you start at the bottom or the top? Where does spring get hooked on the bottom? Which way should spring face? Can you show me pictures of how to hook and repair? Do we need a special tool? We do need 2 mounting brackets. Cannot find online a tutorial on how to repair? Besides mounting brackets, what parts do we need to repair this window?
2 user uploaded images
8 Replies
Casey from SWISCO
Oct 15, 2024 2:10 pm
Hello,
We can't be sure with the hardware still installed but your photos resemble the 15-087 housing pivot, which uses the Series 180 coil springs. We also offer the 16-024 bracket commonly used with this coil balance setup. Take a look and compare the specifications below and the accessories related on our product pages to yours. We'll also include a diagram showing the configuration of this assembly. Thanks for posting!
Detail of 15-087
Series 180 coil balance diagram
Home Owner from New jersey
Oct 31, 2024 8:22 am
Can you explain how 15-087 and S-180 gets put together and does
The other end of coil ( end with two holes) stays open ( when you look at window track, you can see other end of coil with two holes) I am assuming ?
The other end of coil ( end with two holes) stays open ( when you look at window track, you can see other end of coil with two holes) I am assuming ?
Home Owner from New jersey
Oct 31, 2024 11:56 am

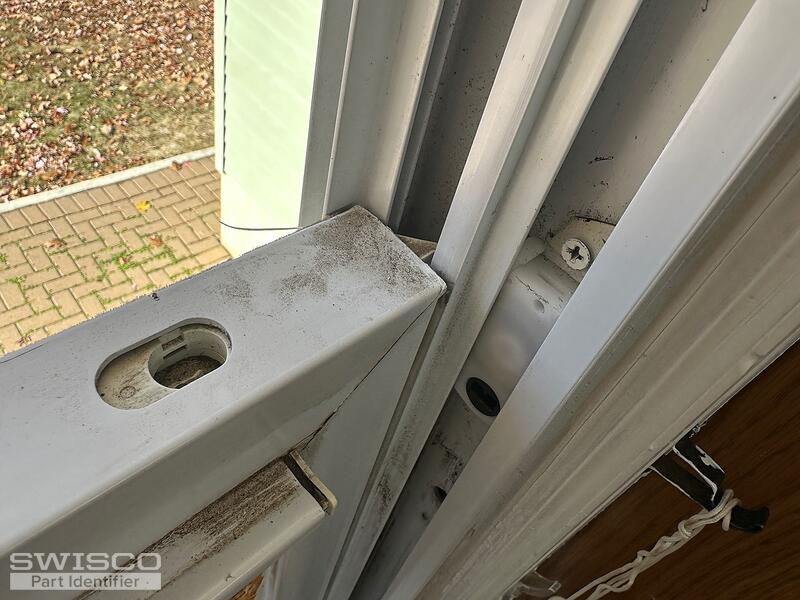

So the coil attached to mounting bracket expands as windows goes down?
1 user uploaded image
Casey from SWISCO
Oct 31, 2024 12:21 pm
Exactly.
