what parts i need

Handy Person

Aug 10, 2022 1:51 pm

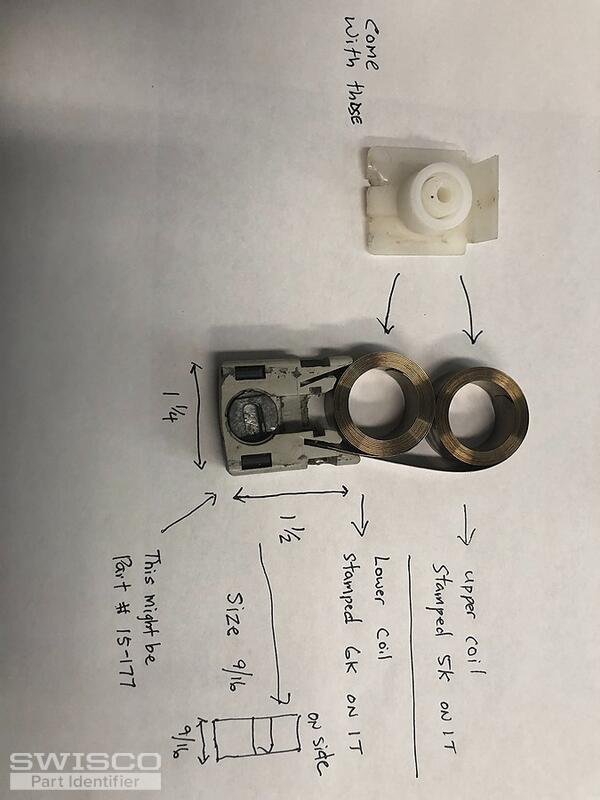

Hi, How are you? I hope this picture on top would help you identify parts to built other one like this to fix my window coil balance. Thanks

1 user uploaded image

4 Replies

Casey from SWISCO

Aug 12, 2022 10:05 am

Hello,

Take a look at the 15-177 pivot shoe, which uses the Series 152 coil springs and related support hardware. Thanks for posting!

Contractor from Cleveland

Sep 7, 2022 6:38 pm

Possible to get the shoe pivot nut, for lack of know terminology, (metal part window guide goes into) or does whole shoe have to be purchased?

This is an Alside window from at least 10 years ago. Looks like other picture submitted for sure.

Casey from SWISCO

Sep 8, 2022 8:02 am

Unfortunately, the metal cam that comes with the 15-177 pivot shoe is not available separately. We apologize for the inconvenience.
