window assist hardware needed.

Start a new Discussion

Handy Person from Florida

Dec 6, 2022 5:03 pm

There was a sticker on top of window frame. It read 710 05130427.

The window measures 39 3/4"x 52 3/4" .

This is from a 2004 Fleetwood mobile home. One on each side. I need both.

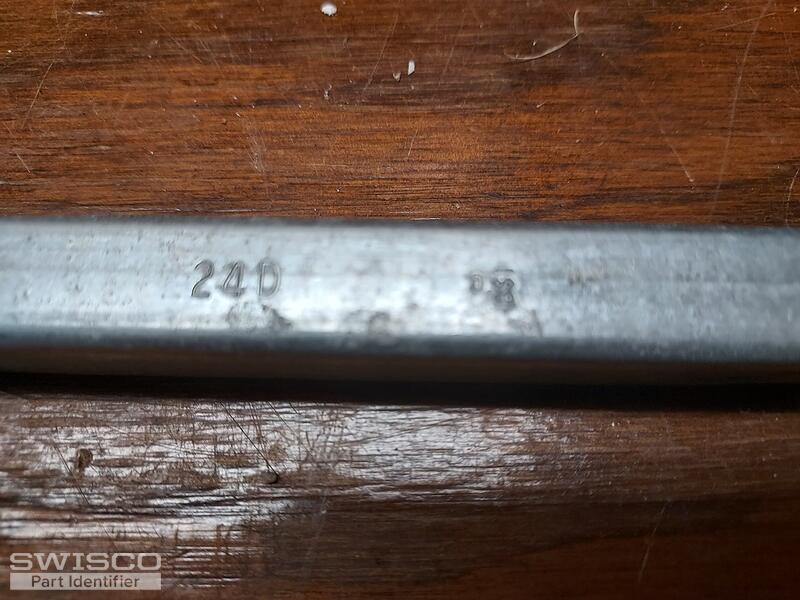

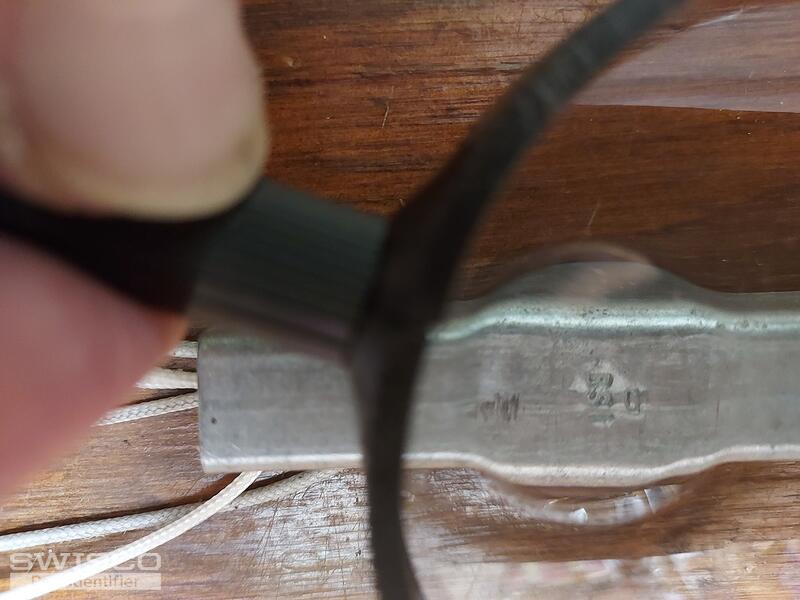

5 user uploaded images

4 Replies

Casey from SWISCO

Dec 8, 2022 1:13 pm

Hello,

Take a look and compare the specifications of the S795-24 (24D) channel balance, which uses a screw tab at the end of the pulley clip for installation. The S795-24 comes with the 1-1/4 wide 15-195 t-lock shoe but it looks like you need the smaller 1" wide 15-194, which you can purchase separately and follow the video below to swap the shoes. Thanks for posting!

Handy Person from Florida

Dec 10, 2022 3:40 pm

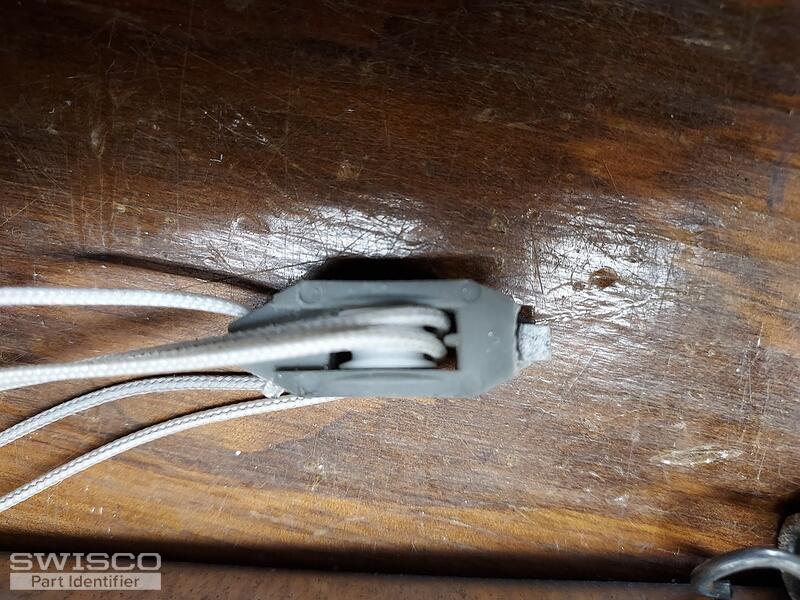

The 15-194 is 1" like the old one. The other end(pully)is broken. I need that too. Above
is a picture. Can I purchase a complete assembly for the other side? It is missing.

1 user uploaded image

Casey from SWISCO

Dec 12, 2022 8:02 am

The internal pulley and spring would come with the S795 channel balance assembly. As long as your screw tab matches the one shown on our product pages, you should be able to use the S795-24 (24D) with a 15-194 shoe on both sides of the window. We recommend replacing both at the same time.
