window balance

Start a new Discussion

Home Owner from grapevine tx

Jul 14, 2018 4:52 pm

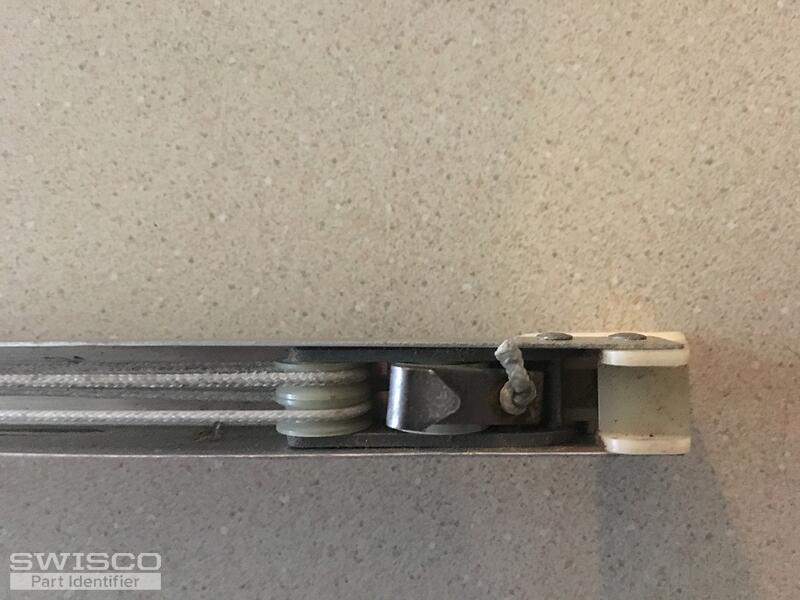

One of my window balances has failed.

It is stamped B.S.I. 22C

The metal length of the balance is 23"

Do you stock this balance and what is the cost.

Thank You

Mike

4 user uploaded images

4 Replies

Tom from SWISCO

Jul 18, 2018 10:20 am

Hi, Mike. This is S390-23. You'll want the 2230 stamp option.

Home Owner from grapevine tx

Jul 18, 2018 4:12 pm

Thank you - I have determined that I need 2 of the S390-23 with the 2230 stamp option. Thanks for your help. However, when pulling the window, I found that one of the guides was damaged and will need to be replaced also.

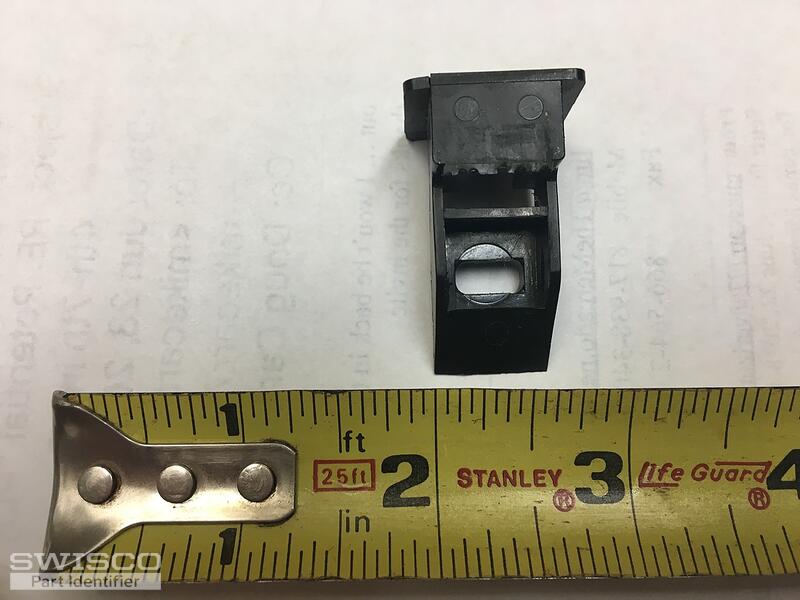

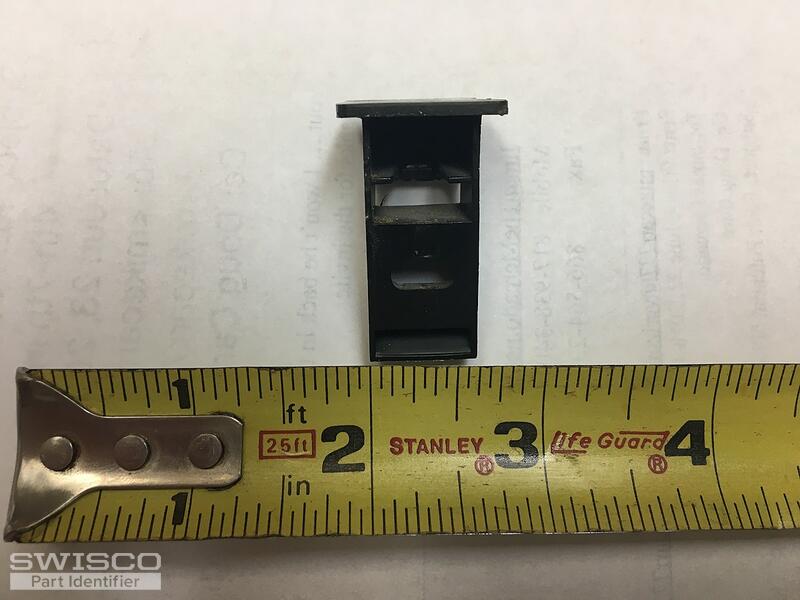

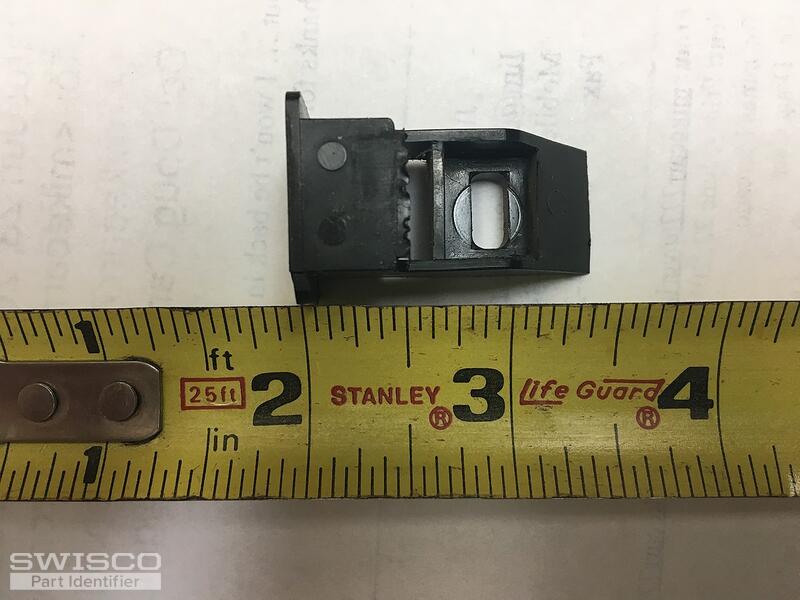

Attached is a picture of the undamaged guide.

Can you help?
Mike

3 user uploaded images

Tom from SWISCO

Jul 24, 2018 11:46 am

This looks like our 18-166 top sash guide. Just be sure to look over the dimensions to be sure.
