window balance

Handy Person from Florida

Apr 7, 2021 9:31 pm

Good evening. Can you please help me to find the right window balance for my windows?
I need six balance. I include the window size with a vinyl frame and single template glass to calculate the weight.50" 1/2 x 30"

Thank you

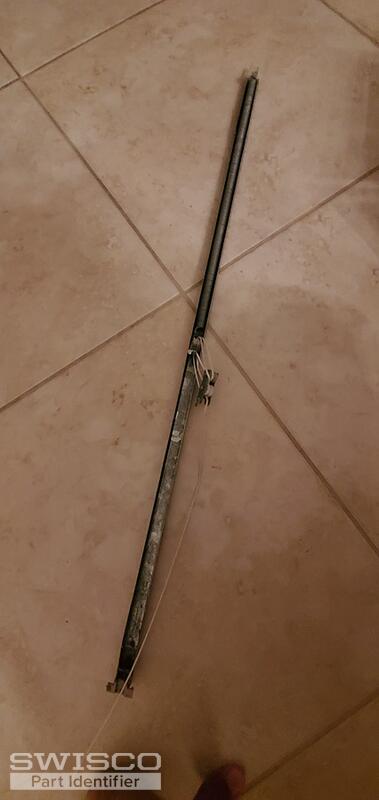

5 user uploaded images

4 Replies

Casey from SWISCO

Apr 13, 2021 8:51 am

Hello,

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2830 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Handy Person from Florida

Jun 5, 2021 11:42 am

Hello, Casey thank you for your information.

S380 will be the right part.
Can you tell me how to calculate the window wight? because in my first order that I place a couple of years ago, the windows are difficult to open (heavy)

Thank you

Casey from SWISCO

Jun 7, 2021 8:11 am

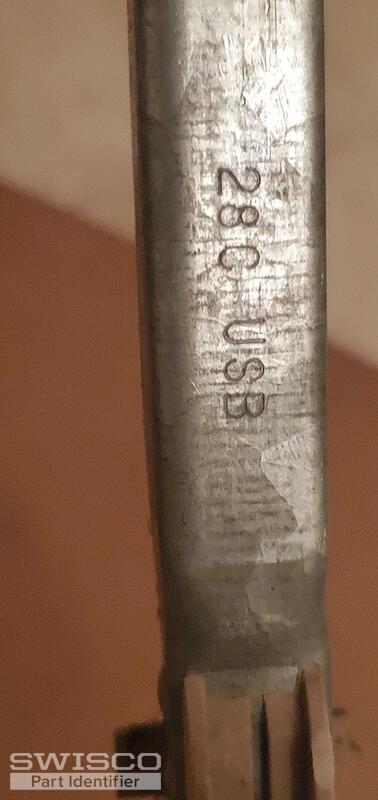

The 28C stamp shown in your photos would correlate to our 2830 strength option to support a sash weighing between 16 and 23 lbs. If you think that might not be enough tension. you are welcome to weigh your sash to compare to the chart under the S380-29 product description to confirm that you choose the correct option. You'd just need to remove the window sash from the frame and weigh it on a standard bathroom scale.
