window balance

A contractor from Hawaii says:
Hi Im look for a window balance marked 20 2 EP Caldwell
Profile picture of Tom
Tom from SWISCO responded:

I'm not sure what you have, unfortunately. We have dozens of different balances with that stamp. It's not a product code or anything, it just indicates the strength of the spring.

In order to figure out what Series this is, I need you to remove an undamaged version of this balance from the window and show me clear pictures of the top and bottom nylon fittings. I will also need to know the dimensions of these fittings.

A contractor from Hawaii says:
Length is 21in

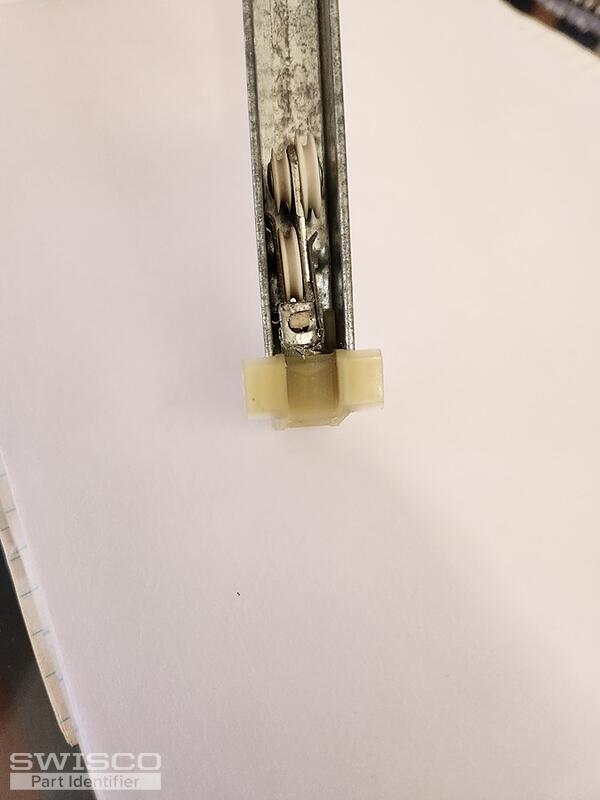

Thumbnail of the uploaded file named 20221021_082947.jpg

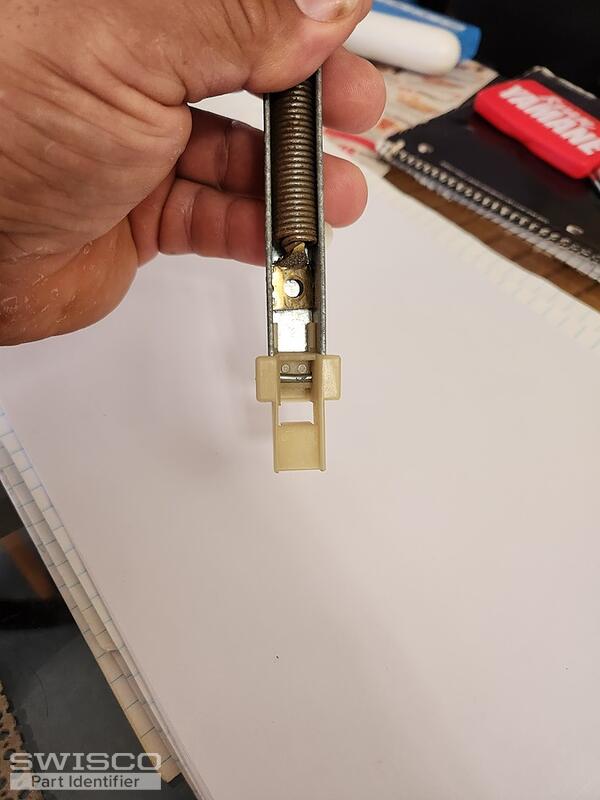

Thumbnail of the uploaded file named 20221021_082940.jpg

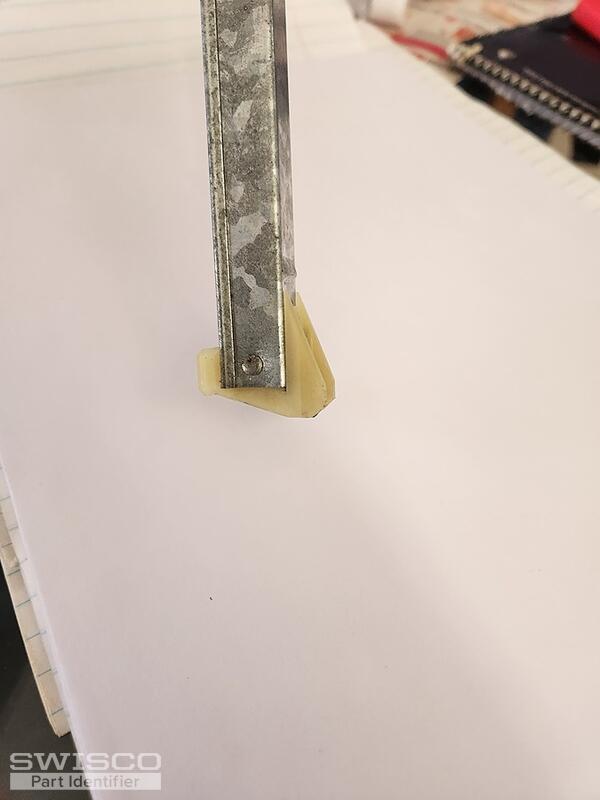

Thumbnail of the uploaded file named 20221021_082930.jpg

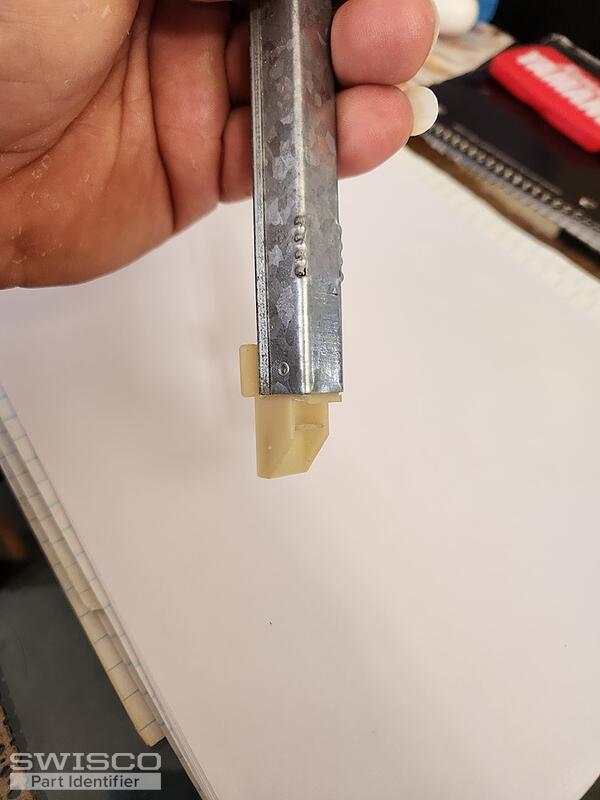

Thumbnail of the uploaded file named 20221021_082924.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your photos. Based on what I see here, you have either our S380-21 or S385-21, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
