window balance identification

A quick learner from Auburn, California says:
I have a 20 year old Milgard window and the cord has broken, so I wish to replace the entire unit, unfortunately it is difficult to determine exactly which model it is. Attached are photos which should help provide the answer. Metal to metal the unit is 18" long. Any help would be appreciated. Thanks Mark

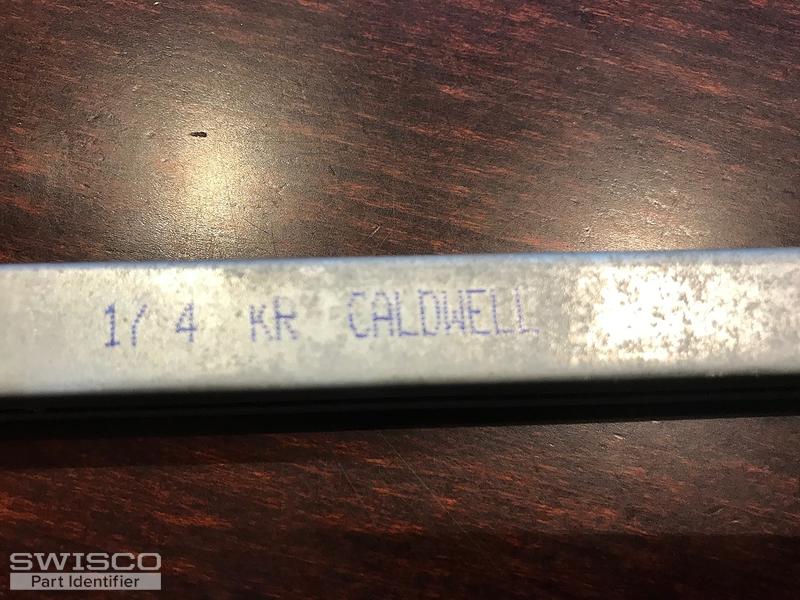

Thumbnail of the uploaded file named IMG_6204.jpg

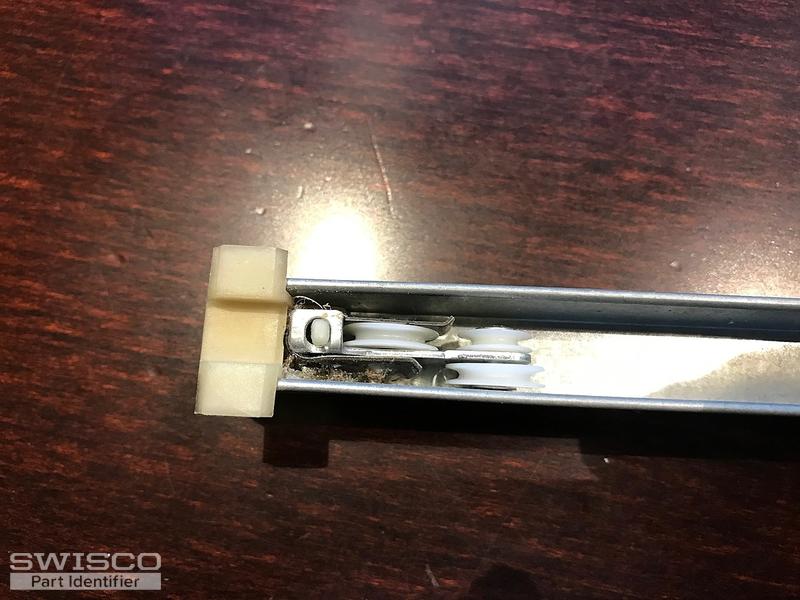

Thumbnail of the uploaded file named IMG_6205.jpg

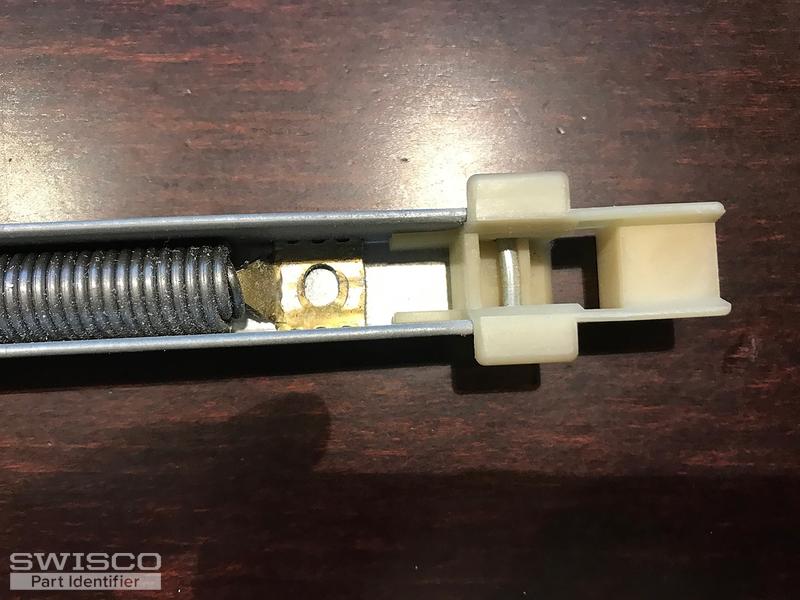

Thumbnail of the uploaded file named IMG_6206.jpg

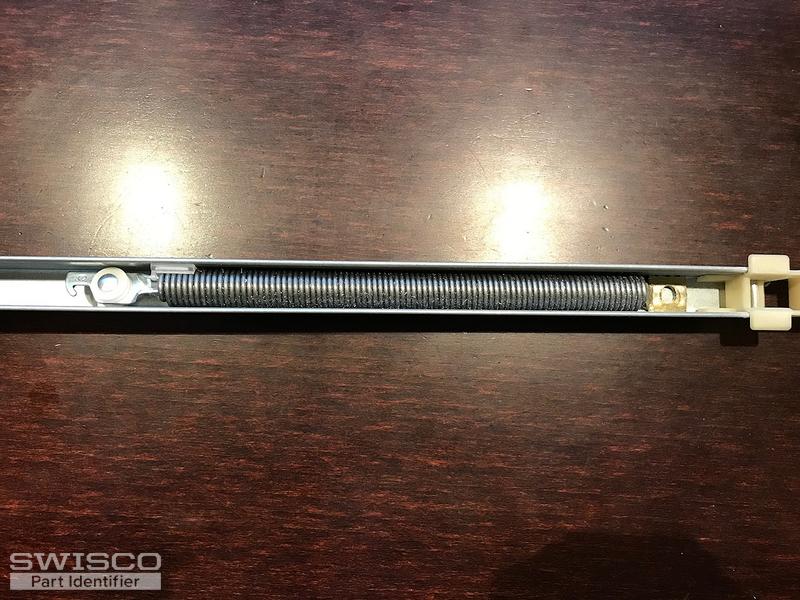

Thumbnail of the uploaded file named IMG_6207.jpg

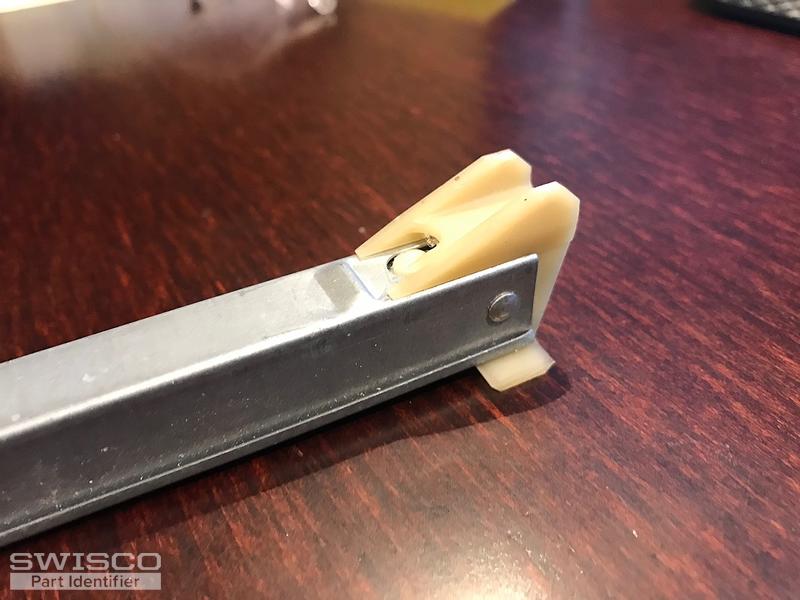

Thumbnail of the uploaded file named IMG_6201.jpg
Profile picture of Bob
Bob from SWISCO responded:

This appears to be either an S380-18 or S385-18. The only difference between these two balances is the depth of the bottom nylon shoe, so compare both with your old hardware to see what matches best. The picture below illustrates the difference. For the Series 380, the shoe is 1" deep; for the Series 385, it's 1-3/32" deep.

In either case, you'll need to select a stamp option of 1740.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from Auburn, California says:

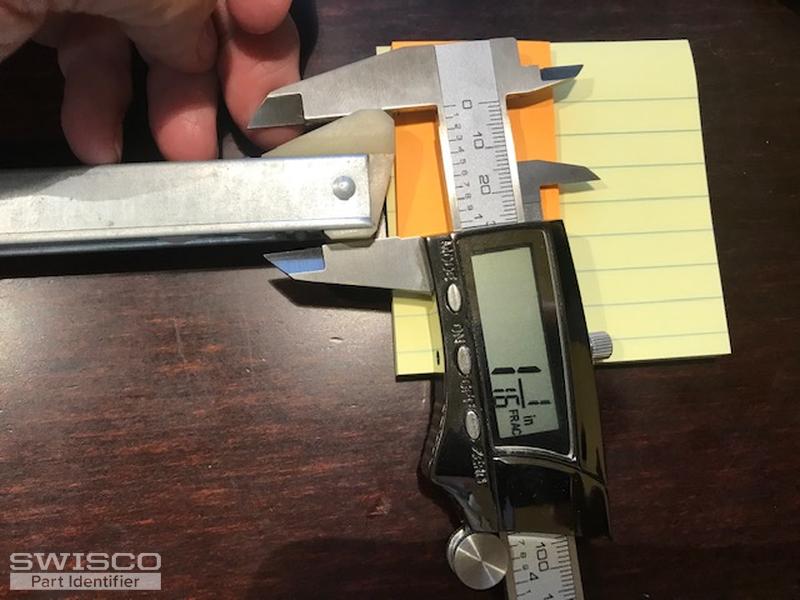

Hello Bob, thanks for replying to my request for identification of my balance. Your choices were either 1 inch or 1 3/32 inch. After using my precision calipers, it turns out that my balance has a measurement of 1 1/32". I will let you decide which balance is correct for me. Then I'd like to order two. Thanks Bob. Mark
Thumbnail of the uploaded file named IMG_6253.jpg
Profile picture of Tom
Tom from SWISCO responded:

If your balance shoe is over 1", then you want the Series 385. It was probably once 1-3/32" originally and wore down over time.
