window balance and bottom seal

A quick learner from Venice FL says:
February 13, 2021

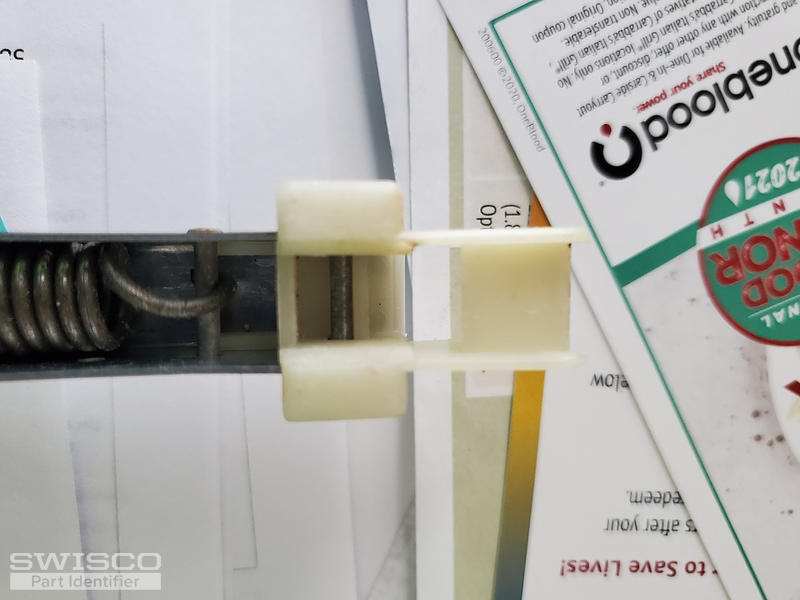

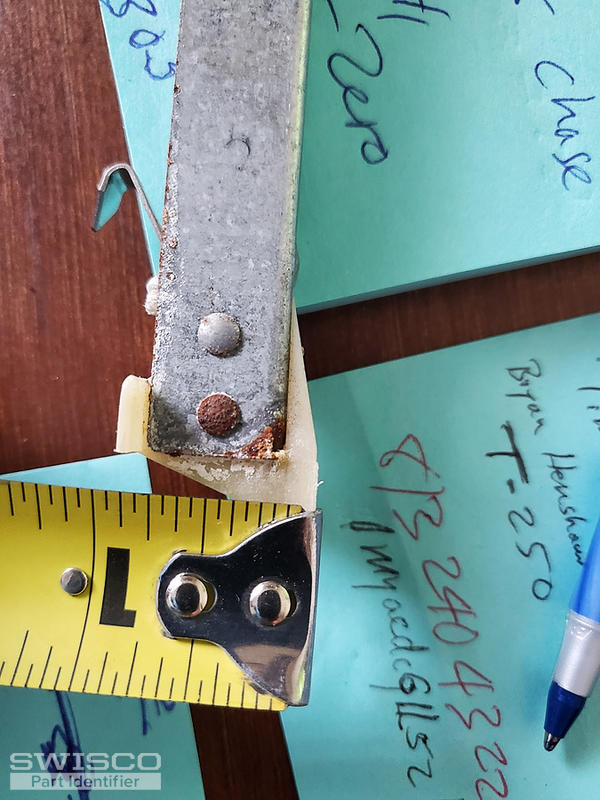

I Have in my cart S380-30 and S380-35 but my plastic piece at bottom of the balance measures 7/8 not one inch and I read some comments that I may need 029 (from Memory) on bottom and you have to make up. Please let me know about this. Also the bottom `Bubble Seal", please see photo, is not exactly like what I see on website. On mine I do not see a `neck' to the piece. The `bubble' appears to sit on about 3/16" strip. What is dimension of the `neck' on your piece and do you have others?
Thumbnail of the uploaded file named 20210204_143050(1).jpg
Thumbnail of the uploaded file named 20210208_145242.jpg
Thumbnail of the uploaded file named 20210212_101416.jpg
Thumbnail of the uploaded file named 20210213_095134.jpg
Thumbnail of the uploaded file named 20210213_095145.jpg
Profile picture of Casey
Casey from SWISCO responded:
February 16, 2021

Hello,

Your bubble seal does look like our 58-135 as long as the dimensions match up to yours. I wouldn't worry too much about the neck since it is a slight difference that shouldn't interfere as long as the other specifications are the same. If you need new top sash guides as well, see our 18-161.

As for your balances, we'd be happy to have them custom made with our 15-029 bottom attachment, but we'll need to know the stamps on your 30" and 35" balance channels, as well as the quantities you'd like to order of each. Thank you!
A quick learner from Venice FL says:
February 16, 2021
The stamps are 29-15 and 34-15 respectively. window weights are 12lb and 16.5 lb respectively. I have a pair from local vendor and they used 29-10 and 34-20. they seem fine.
What is pricing difference, if any, w/15-029 bottom?
I would need 6 35" and 8 30".
Profile picture of Casey
Casey from SWISCO responded:
February 16, 2021

Great, we just sent over order links and price quotes for you to review. Take a look and let us know if you need anything else. Thank you!
Winged Channel Balance Shoe, 7/8" Depth
Winged Channel Balance Shoe, 7/8" Depth
15-029
$0.82
Channel Balance Top, Winged
Channel Balance Top, Winged
19-005
$0.74
25ft Bubble Seal, 3/16" x 11/32"
25ft Bubble Seal, 3/16" x 11/32"
58-135
$15.57
5/8" Sash Guide, Norandex
5/8" Sash Guide, Norandex
18-161
$1.88
30" Series 380 Channel Balance
30" Series 380 Channel Balance
S380-30
$11.30
35" Series 385 Channel Balance
35" Series 385 Channel Balance
S385-35
$12.05
