window balancer (right side)

Home Owner from Elkridge, Maryland
30B printed on balancer frame

Note:
this a NVR 2452 BLDG PRODUCTS THURMONT 6/6 GRILL Single Hung window
1 user uploaded image
6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. I'm confident we can help, but we need more information. First, can you confirm the metal channel length? Do not include any attachments or clips in this measurement; just measure the metal channel. Next, is this a tilt or non-tilt window? Assuming it is a tilt window, can you show me clear pictures of whatever clip or hook is at the bottom of the balance? Can you also show me how the balance attaches to the top of the window track? We'll do our best to narrow down what you need from there.

Home Owner from Elkridge, Maryland
Thanks for your reply. Channel length 30 inches.

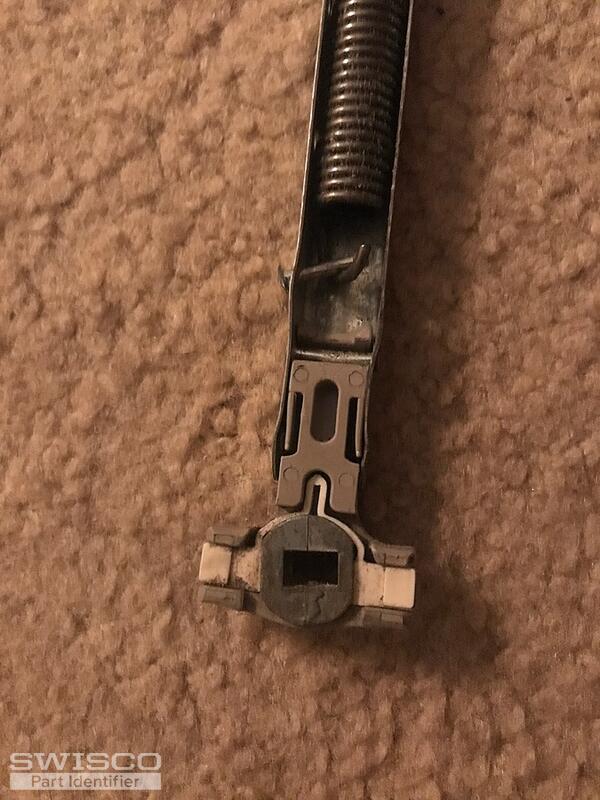

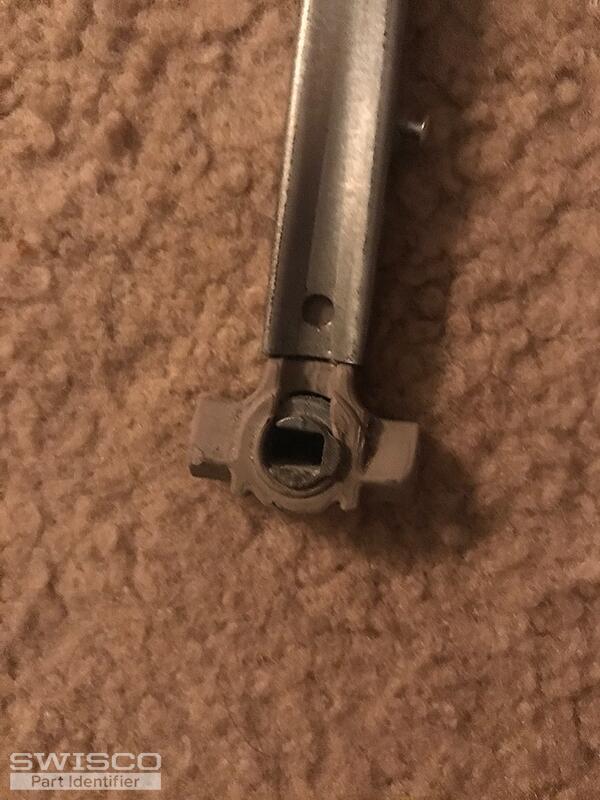

Photos attached
5 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Perfect, thank you! Your balance appears to be an older version of our Series 795. Look this assembly over and see what you think.

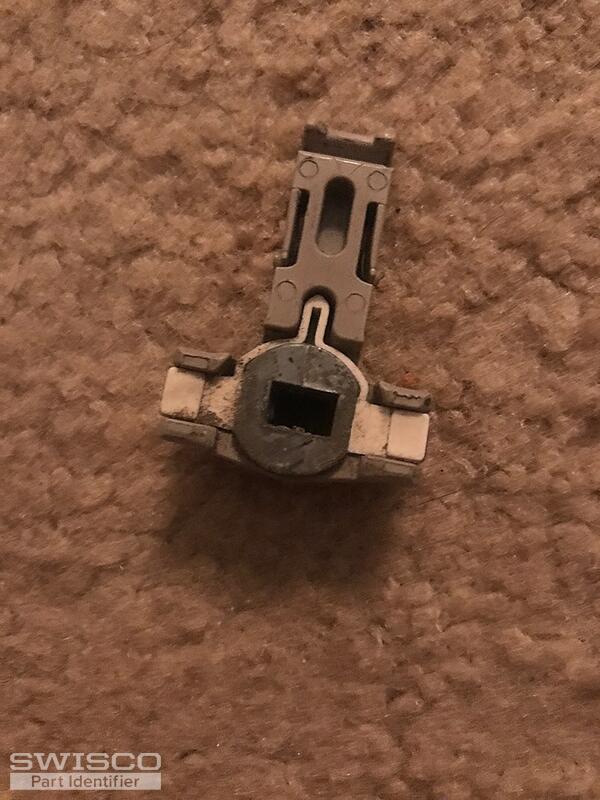

The only major difference is the design of the shoe. Yours has a hole straight through the cam, which means this is an "open cam" style. The Series 795 only comes with a closed cam by default. Therefore I recommend purchasing our open cam 15-195B separately. They can be swapped very easily.

Home Owner from Elkridge, Maryland
Bob,

Thank you for the expert advice. I placed my order. Hope you have happy 4th of July week ahead!

John
Bob
Bob from SWISCO
SWISCO
Expert

Glad I could help! Let us know if you have any other questions, and happy fourth to you as well.
