window balancing springs

A home owner from York, PA says:
Hello,

I have this spring on my window ( #5.0 35" PAT 5232208). two springs on each side of the window. Do you have replacement spring and related parts (plastic cover, pivot shoe)?

Can you also tell me the replacement part for window tilt lashes based on the window specification that I attached with this email?

Thanks,

Nick

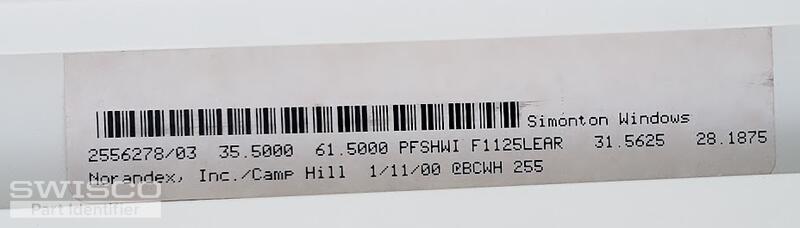

Thumbnail of the uploaded file named Window_1.PNG
Profile picture of Emily
Emily from SWISCO responded:

Hi, Nick.

I am afraid the sticker on your window doesn't tell us what hardware it uses. We'd be happy to help but we'll need to see an undamaged pivot shoe and tilt latch removed from the window to compare to our inventory.

A home owner from York, PA says:
Hello,

The spring that I have is #5.0 35" PAT 5232208; two springs on each side of the window.

Do you know the tilt latch for this window that I can order?

Thanks,

Nick

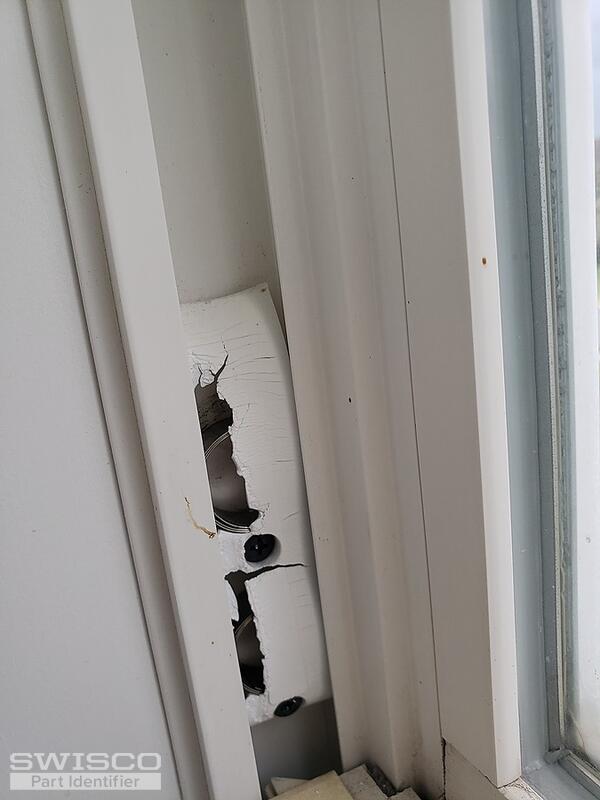

Thumbnail of the uploaded file named 20220912_172012.jpg

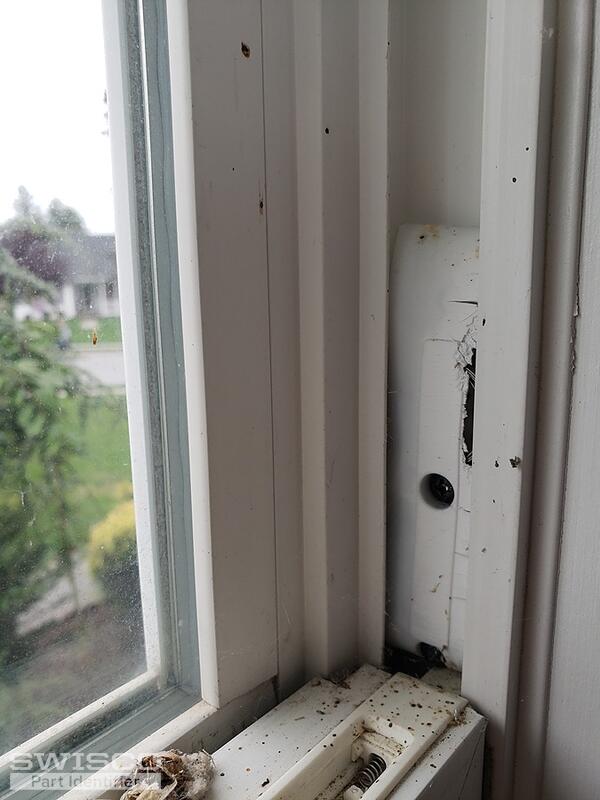

Thumbnail of the uploaded file named 20221005_081035.jpg
Thumbnail of the uploaded file named 20221005_081035.jpg
A home owner from York, PA says:

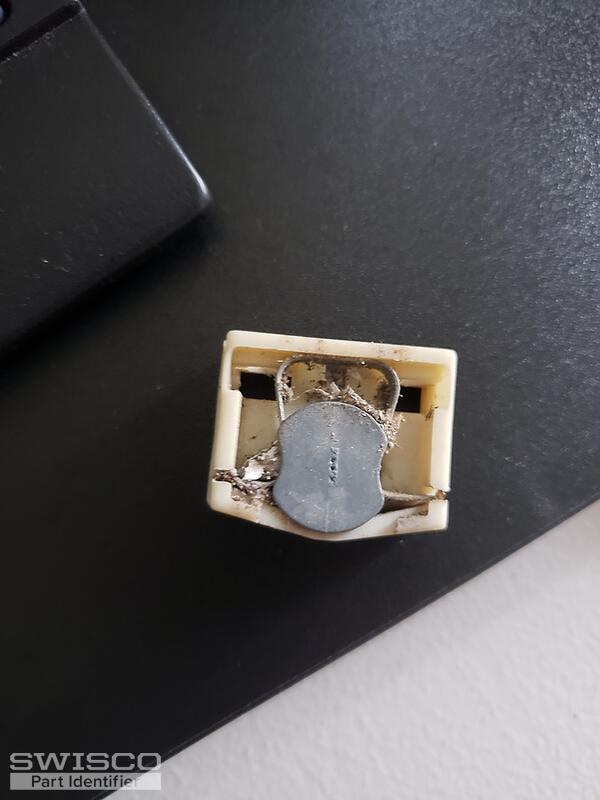

Thumbnail of the uploaded file named 20221005_101932 (1).jpg

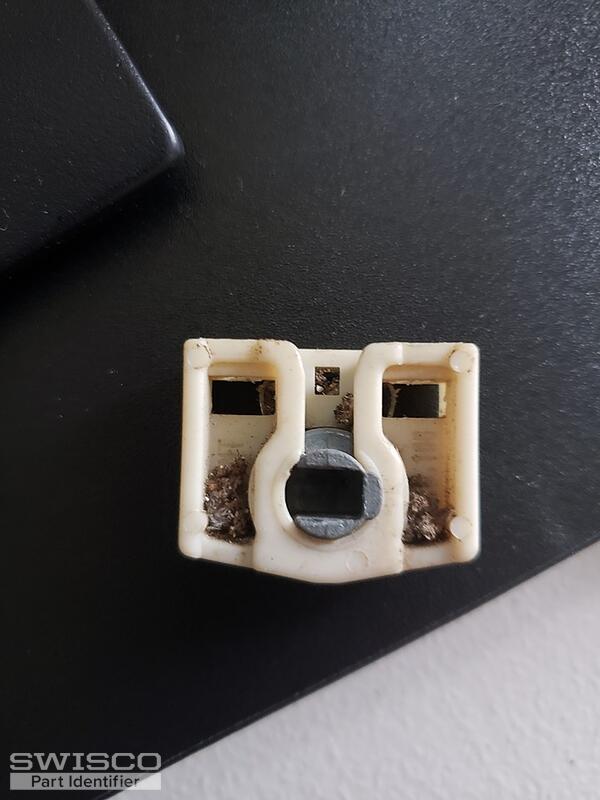

Thumbnail of the uploaded file named 20221005_101928.jpg
Profile picture of Emily
Emily from SWISCO responded:

Thank you for the additional photos, Nick! It looks like you have the 15-111 that uses the Series 160 coil springs. For a new double coil support, see our 15-150D. The #5 on your springs indicates that you would need a 5 pound coil weight but our Series 160 doesn't have that weight option. If you have a total of 4 springs and they're all stamped with the #5, this would equal 20 pounds of support. With that in mind, you could use (1) S160-4 4.5 pound spring and (1) S160-5 5.5 pound spring on each side of the window. With 10 pounds of support on each side, this totals 20 pounds of overall support.

As for the tilt latch, I can't be certain without seeing an undamaged version removed from the window but you can start by having a look at our 26-243 and 26-244. Carefully compare our specifications with an undamaged version to see if they match up.

A home owner from York, PA says:
Thanks a lot. This information will will me.

Thanks,

Nick
Profile picture of Emily
Emily from SWISCO responded:

I'm happy to help! Good luck with the repair and let me know if I can be of further assistance.
