window channel balance

Home Owner from Hawthorne

Nov 7, 2017 5:40 pm

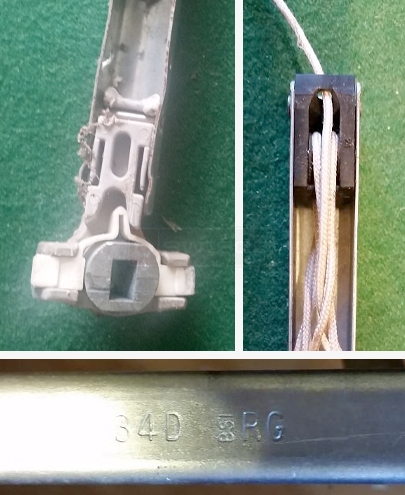

I am trying to order the correct window channel balances for my single-hung, tilting windows. The channel balance is stamped 34D and measures 34" x 1/2" x 1/2". I can see balances that look the same, but the pivot ends look very different from ours. Can you help? I will need two of this size balance and also one 28D and two 28C balances.
Thanks for your assistance.

7 Replies

Home Owner from Hawthorne

Nov 9, 2017 11:05 am

The pivot end of my balance was disassembled in my previous picture. Here it is assembled (both sides).

Tom from SWISCO

Nov 14, 2017 1:46 pm

I agree, the shoe does look different. The Series 795 comes with our 15-195 shoe by default, but yours looks more like our 15-195B. If you want, you can purchase these shoes separately, then just swap them when you receive your order. They just pop on and off. Would that work for you?

Home Owner from Hawthorne

Nov 16, 2017 12:01 pm

So do I purchase a S795-28 balance to replace both the 28C and 28D balances I need to replace? I was told the C and D indicate different spring strengths.

Tom from SWISCO

Nov 16, 2017 2:09 pm

That's correct. You can see the available options on the S795-28 store page.

Home Owner from Hawthorne

Nov 16, 2017 3:43 pm

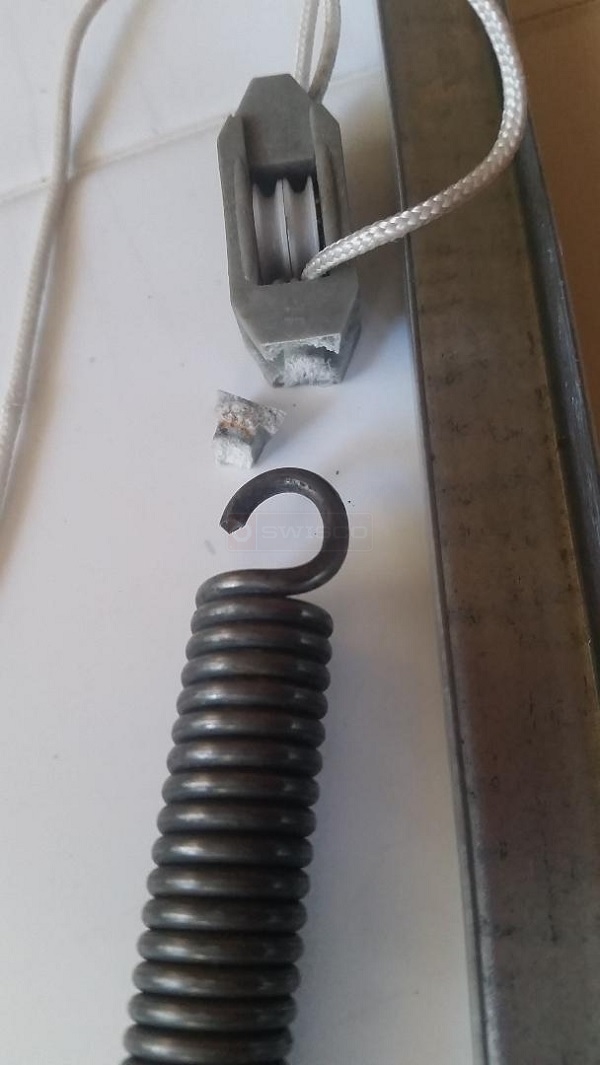

Can you buy just the pulley/spring holder piece versus the whole balance? This is the only part that is broken on many of our balance assemblies.

Paul from SWISCO

Nov 20, 2017 2:20 pm

I am afraid not. The balance is only available complete.
