window channel balance Caldwell 20 5 GQ - 21" channel

A home owner from Hillsboro, OR 97124 says:
June 30, 2021

I need to replace two of these window balances on a non-tilting window. Channel length is 21". Window is Milgard, installed in 1998. Please help in identifying this part.

Thank you,

Margaret

Thumbnail of the uploaded file named window stamp.jpg
Thumbnail of the uploaded file named window underside view.jpg
Thumbnail of the uploaded file named window side view.jpg

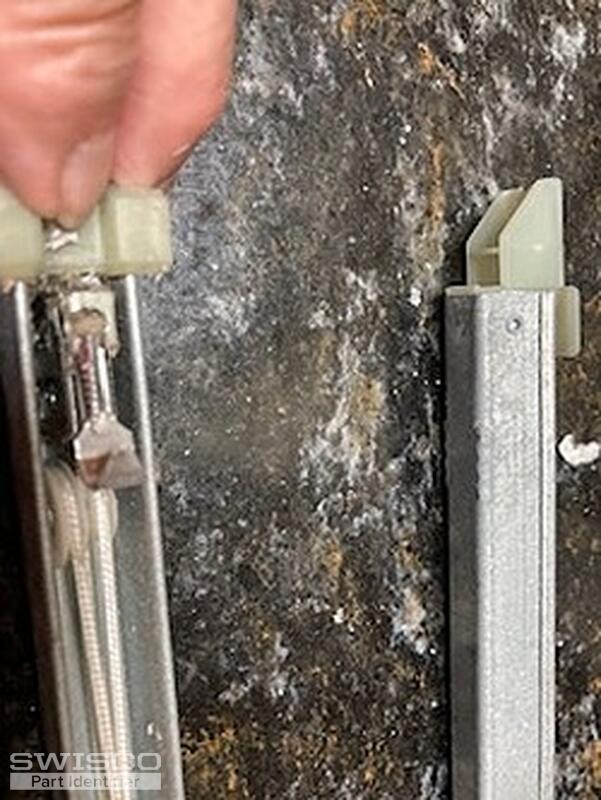

Thumbnail of the uploaded file named window clip.jpg
Profile picture of Bob
Bob from SWISCO responded:
July 6, 2021

Hi Margaret. It looks like you have either our S380-21 or S385-21. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. For a new stamp option choose 2050.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
21" Series 380 Channel Balance
21" Series 380 Channel Balance
S380-21
$9.38
21" Series 385 Channel Balance
21" Series 385 Channel Balance
S385-21
$9.38
