window channel balance identification help

Start a new Discussion

Home Owner from Vero Beach, FL 32960

Mar 5, 2025 1:53 am

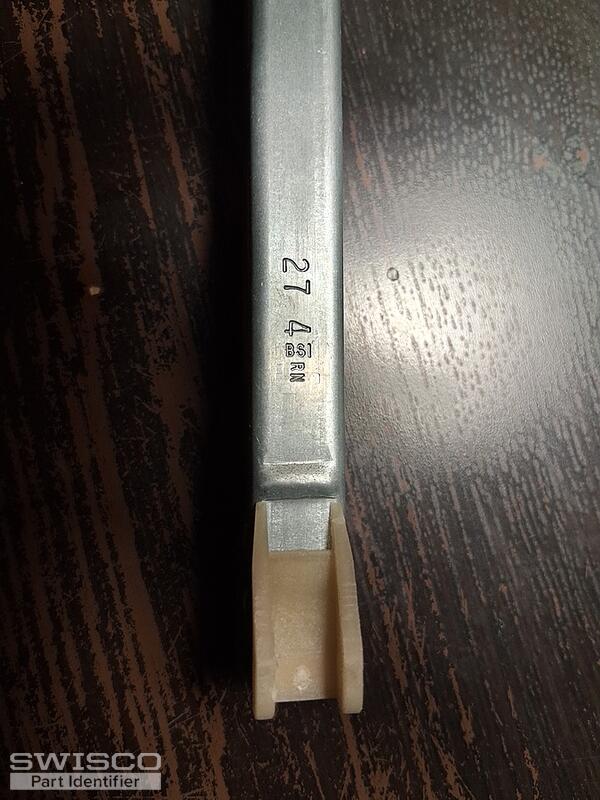

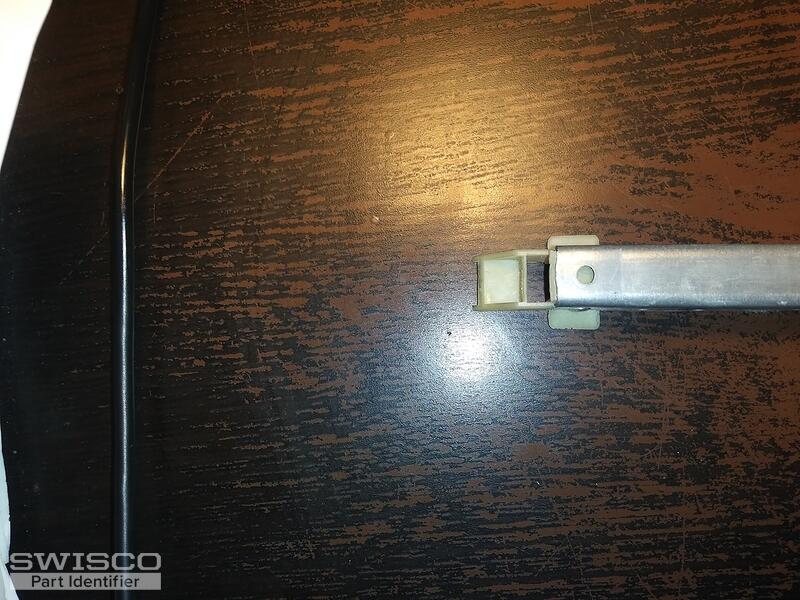

Marked with 27 4 BSI RN on its end as shown in one of the uploaded photos, it is 28 inch in length (the metal only).

5 user uploaded images

2 Replies

Jasmine from SWISCO

Mar 5, 2025 3:17 pm

Thanks for your post! This window balance is made with a winged top guide and a wingless bottom shoe, like our Series 395 Channel Balance. Since your channel is 28", you'll need the S395-28.

You can likely use the 2740 stamp option but it may be a good idea to double check that your window sash weighs between 19 to 26lbs.
