window channel marked with number 33C BSI

Home Owner from South Carolina

Jan 17, 2026 9:19 am

window channel marked with number 33C BSI / et with hook on top. channel 33Inch long looks like your @ 795 except I have a hook on top of assembly

can you supply 2 of these

10 Replies

Tom from SWISCO

Jan 21, 2026 10:55 am

We can supply a Series 795 balance with a top hook, but it would have to be a custom order. Before we go any further, can you kindly tell me the width of the bottom "T" lock shoe? It should be either 1" wide or 1-1/4" wide.

Can you also show me a photo of the hole in the window frame where the hook installs?

Home Owner from South Carolina

Jan 26, 2026 2:56 pm

Tom
I sent photos on Friday 1/23/2026 showing hook, hole for hook and both ends of the 33" channel assebly that I require
Did you receive the photos as well as the t slot measurement you asked for which is 1/14"

Tom from SWISCO

Jan 28, 2026 10:35 am

I'm afraid we haven't received any photos from you. Please understand we can only see what you post here. All photos must be uploaded directly to this page for me to review.

Home Owner from South Carolina

Jan 29, 2026 9:08 am

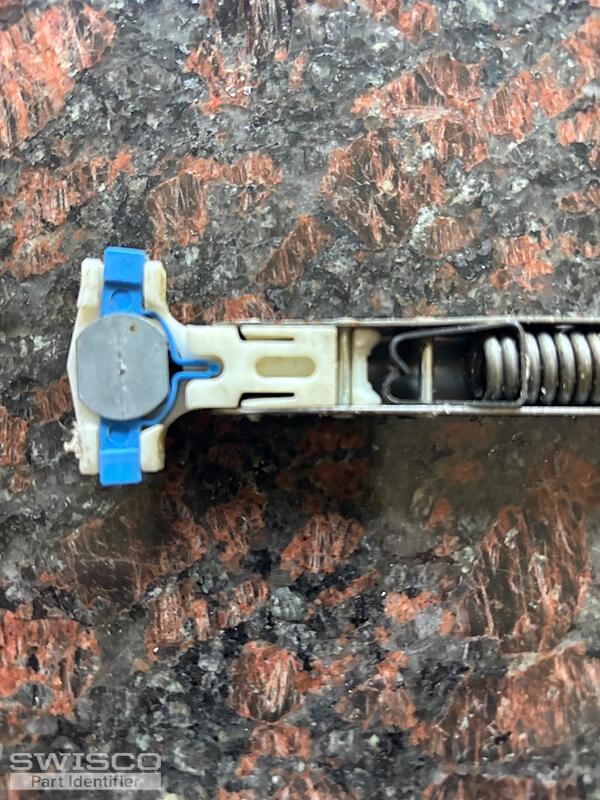

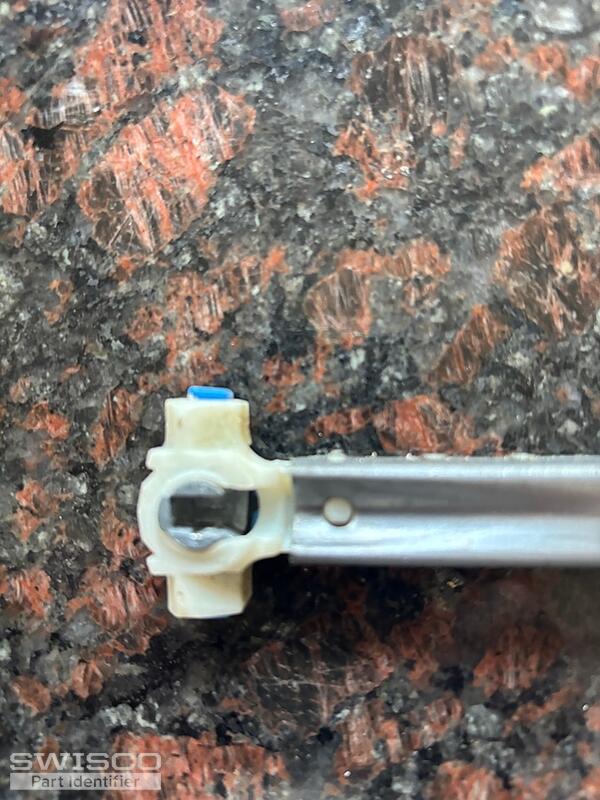

Tom Here are uploaded photos of window channels that need replacement I need qty 2 the channel itsef is 33" long plus hook and t-slot cam which measeues 1 1/4"
Please let meknow if you need any more info
Thanks
George

5 user uploaded images

Tom from SWISCO

Jan 30, 2026 1:07 pm

Thanks! This is an older style of our Series 795 but with a hook at the top instead of a screw. The good news is, thanks to the shape of the hole, you can still use our Series 795 as long as you purchase the 26-200 screw plug separately. The video below will clarify what you must do.

Home Owner from South Carolina

Jan 30, 2026 2:37 pm

Looks easy enought to install plug to adapt
Could you now quote on every thing I need to so I could order etc
Im sure you will accept a visa chard card
I need 2 assemblies
Thanks
George

Home Owner from South Carolina

Jan 31, 2026 11:48 am

Hello Tom

Just realised that I have enough information to order replacement channel 33" series 795 channel balance for channel marked 33 C along with adaptor # 26-200 and screws # 33-016

Video sent explains how to adapt and looks pretty straight forward I placed order on Saturday. I did weigh window to confirm C designation option is correct

Again appreciate all of your help You made it very easy to understand

George Pihonak

Tom from SWISCO

Feb 2, 2026 2:32 pm

That's great to hear! We appreciate your business, and we'll be here if you have any other questions.

Home Owner from South Carolina

Feb 2, 2026 4:33 pm

Thanks again
