window coil balance replacement

Handy Person from Boston

Jun 3, 2020 11:02 pm

Hello,

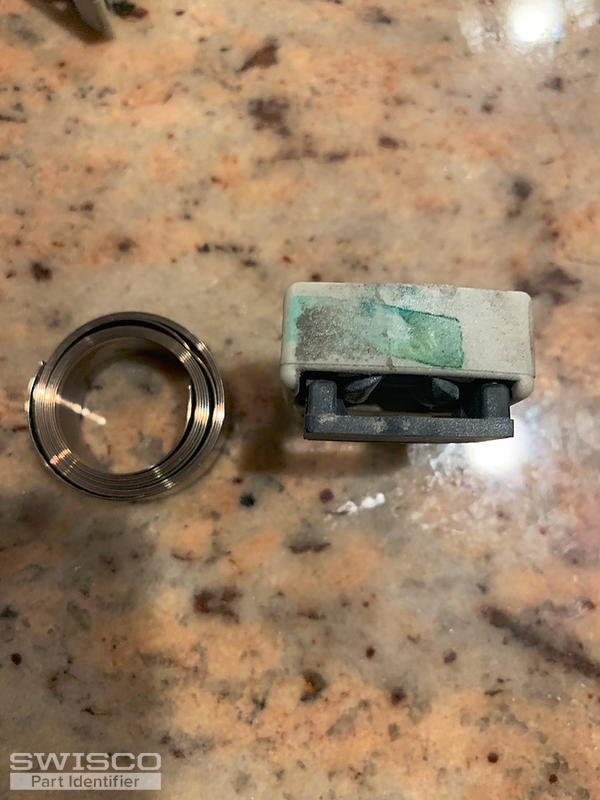

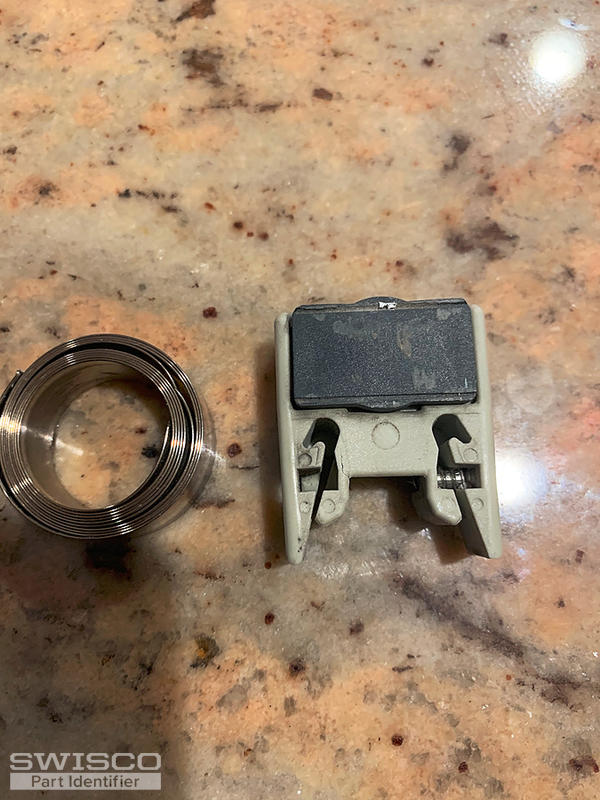

I need some assistance in find the right part for my window. it is not holding when lifting up or down. it just keep sliding down. i'm not sure the size and dimension of the coil and the parts for it. i can't find any other sticker besides the picture i have attached.

5 user uploaded images

4 Replies

Bob from SWISCO

Jun 8, 2020 11:40 am

This looks like a 15-177 Pivot Shoe, which uses our Series 152 Coil Springs. Let me know if you have any other questions.

Handy Person from Boston

Jun 10, 2020 9:30 am

I need to order the items for one window
Can you let me know the part numbers of each items and what would the cost?

Bob from SWISCO

Jun 10, 2020 10:25 am

Click on the link 15-177 to see the 15-177. For the Series 152 springs, you'll need to look for stamps on your old springs to see what spring weights you need; if there are none or you are uncertain, give us the exact weight of your window sash and we'll work out the weights you need.
