window counterbalance and lift rail

A handy person from NH says:

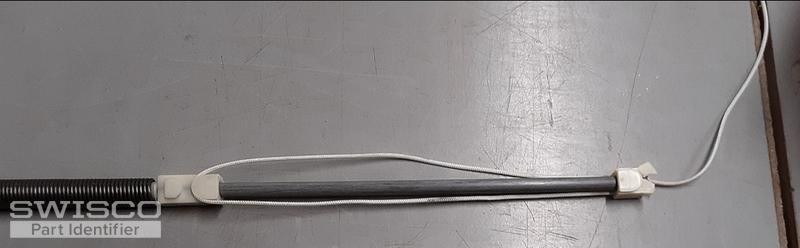

I can find no identifying names or numbers on any of the sash. I do have more photos if that helps.
Thumbnail of the uploaded file named 20190824_181507.jpg
Thumbnail of the uploaded file named 20190824_181527.jpg
Thumbnail of the uploaded file named 20190824_181753.jpg
Thumbnail of the uploaded file named 20190727_090414.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. We can help replace this old block and tackle rod balance with a more modern tilt window channel balance; but we need to see a picture of whatever hook, shoe or attachment is at the bottom of this balance. From there, we can identify the right replacement for you. Many thanks.

A handy person from NH says:

Hi Bob,

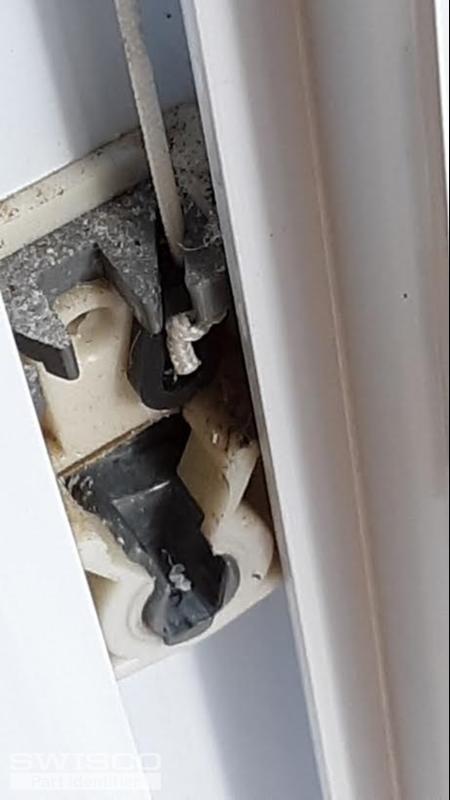

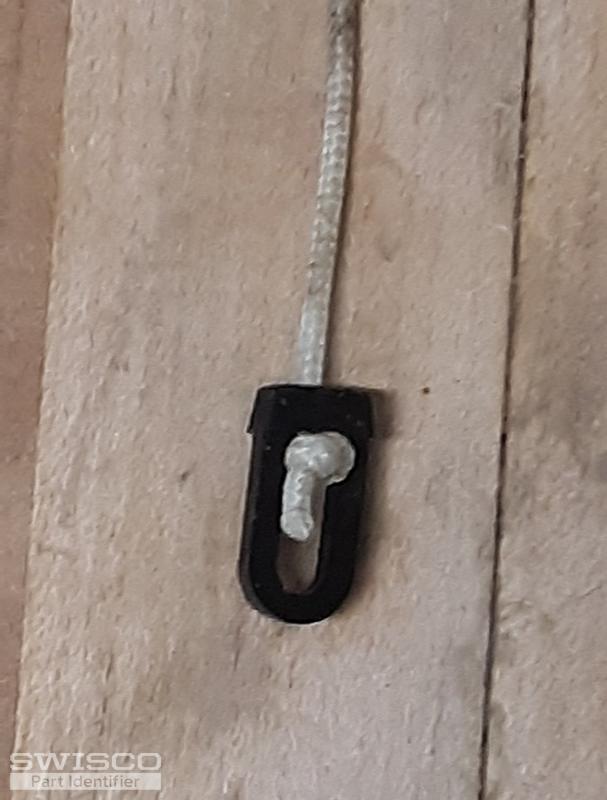

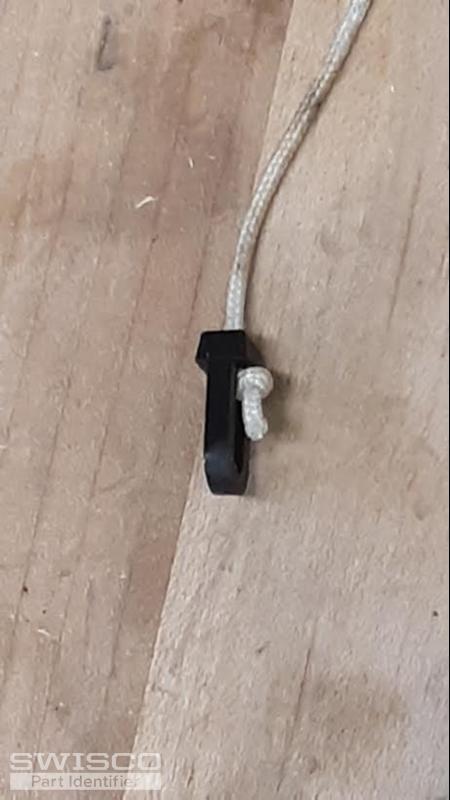

These are the photos of the bottom attachment of my block and tackle balance.

Thumbnail of the uploaded file named 20190904_164611.jpg
Thumbnail of the uploaded file named 13.jpg
Thumbnail of the uploaded file named 120.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for the reply. Perfect, this is exactly what I needed to see. See our Series 770 Channel Balance. Measure the length of your old rod balance to know what length to select. You will need the exact weight of your window sash to choose the right stamp option. If you need a new pivot shoe as well, it might be our 15-129, but look it over and see what you think.
