window part for Owens Corning Imperial vinyl window

A quick learner from Clarks Summit, PA says:
September 23, 2022
I would like to order parts for these windows. The are breaking at the bottom and at the top of the bottom window. I have over 200 of these windows. any help would be appreciated.
Thumbnail of the uploaded file named Blades Image 1.jpg
Thumbnail of the uploaded file named Blades Image 2.jpg
Thumbnail of the uploaded file named Blades Image 3.jpg

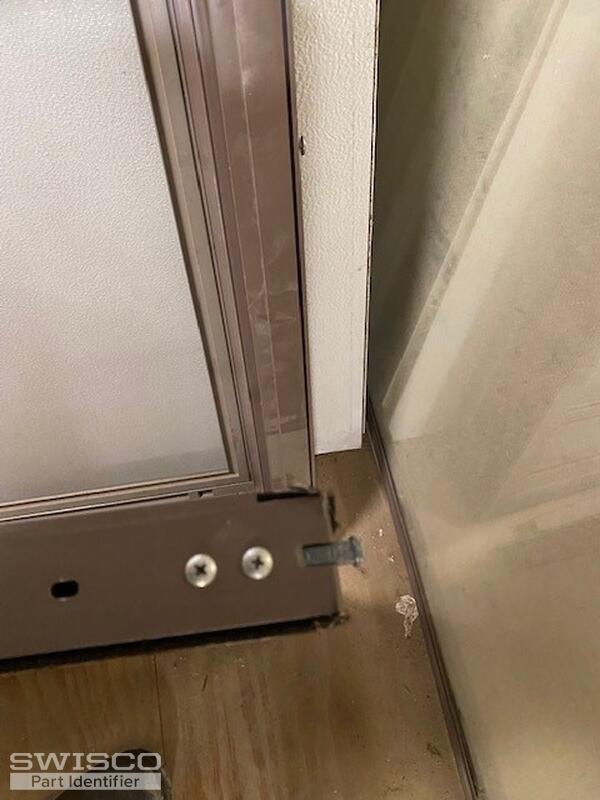

Thumbnail of the uploaded file named blades image 4.jpg

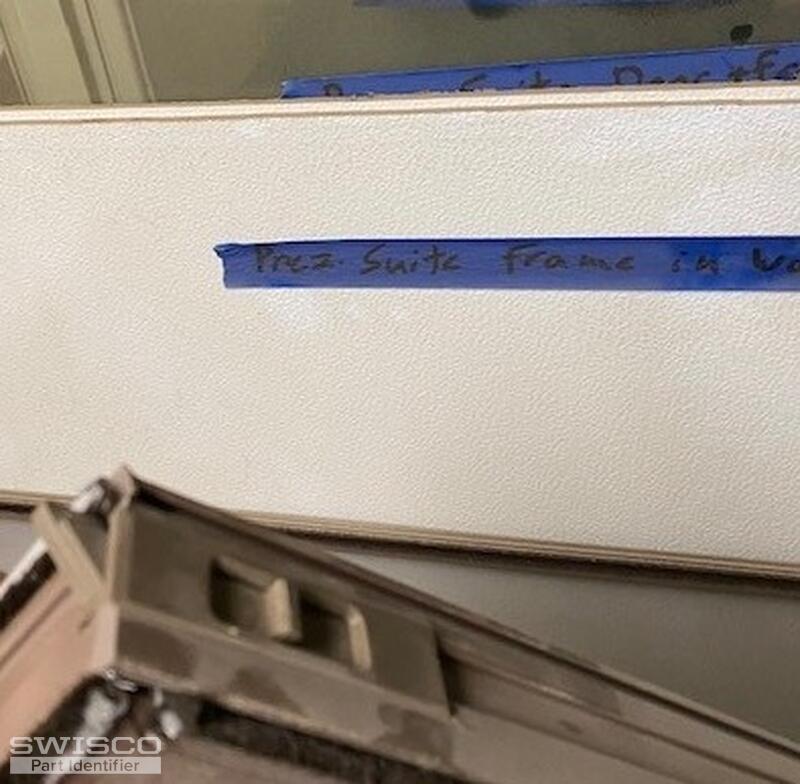

Thumbnail of the uploaded file named blades image 5.jpg
Profile picture of Casey
Casey from SWISCO responded:
September 27, 2022

Hello,

Your pivot shoe appears to be a match to our 15-177, which is compatible with the S152 coil springs.

This assembly is commonly used with the 26-466 but you would need to remove yours from the sash to compare to the style and dimensions shown on our product page.

If you need new tilt latches as well, take a look and compare the specifications of the 26-243 and 26-244 to yours. Thank you!

Dimensions for 26-466
Dimensions for 26-466
A quick learner from Clarks Summit, PA says:
September 28, 2022
thank you I will try those parts
