window part identification

A home owner from Rhode Island USA says:
July 13, 2017

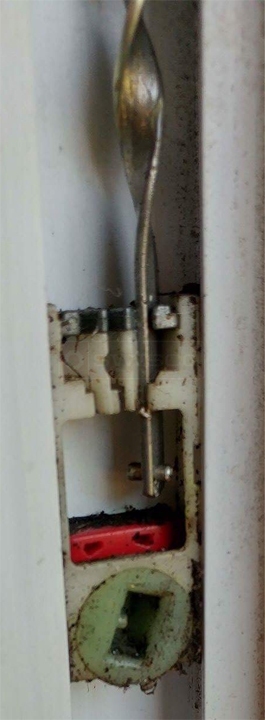

Hello- I need to replace this part in several windows. I am not sure which is the most suitable part to use- there aren't any on your website that are exact replicas. My best guess as to measurements for this part are: 2 inches tall, 1-1/2 to 1 5/8 wide, and 9/16 inch deep. Which part do you recommend? I would also like the silver, metal, twisted piece identified as well with suggestions for what to use for a replacement. Thank you so much!! -Joanna
window part identification
Profile picture of Paul
Paul from SWISCO responded:
July 18, 2017
The width of your pivot shoe should be 1-1/4". Double check the measurement. Your shoe looks like our 15-046, which is 1/2" thick, but if yours is 9/16", go with 15-118. Go over our measurements and compare them to your old part before you place an order. Let me know if you need any more help.
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-118
$2.20
