window parts

A home owner from USA says:

June 3, 2020

Hello,

I'm trying to repair my windows and I'm having trouble finding parts or instructions about how to do it.

I think I need to replace the slides on the sides of the windows and the metal clips that attach to window to clip into the slides. I'll attach photos.

Thanks!

Thumbnail of the uploaded file named IMG_0785 (1).jpeg

Thumbnail of the uploaded file named image0 (1).jpeg

Thumbnail of the uploaded file named IMG_1886 2 (2).jpeg

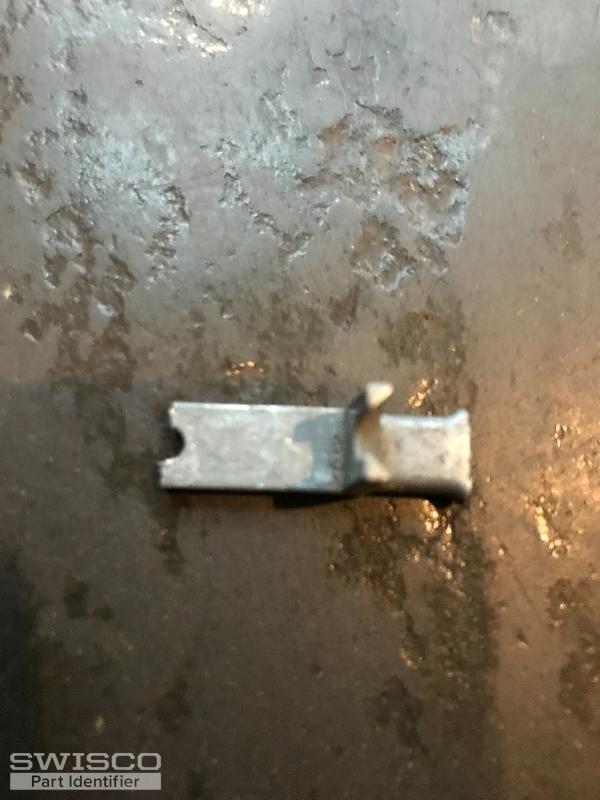

Thumbnail of the uploaded file named IMG_5125 (1).jpeg

Tom from SWISCO responded:

June 8, 2020

Thank you for your patience during this busy season. It sounds like you need a new pivot bar and pivot shoe. The pivot bar looks like our 26-449, but I recommend comparing our dimensions to yours to confirm.

The pivot shoe is harder to gauge but I think our 15-129 is a promising match. Carefully review dimensions for this part, as well.

A home owner from USA says:

June 8, 2020

Amazing! I think that's it! Huge thanks, Erik

Tom from SWISCO responded:

June 8, 2020

You're very welcome, Erik. Please let me know if I can be of any further service.
