window parts

Question

Item 1. Two spring coils with plastic casing and screws x 10 sets ( ten pieces of 2 coils in plastic casing for 5 windows, each window takes two pieces)
Item 2. Latches x 12 ( ordering 2 extra)
Item 3: 2 pieces of 2 coil springs mounted in plastic with hardware and latches -2. Each side of the window takes one piece of casing in which there are two coil springs.

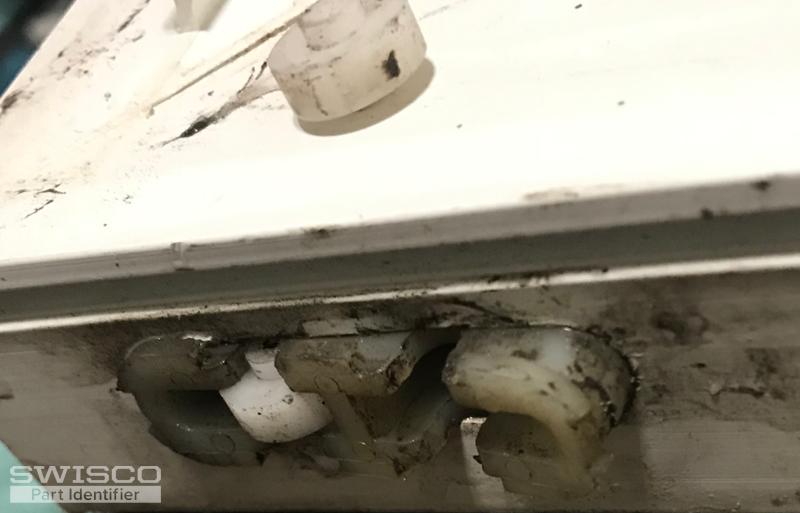

For all coils in the plastic casing I also need the patt in which the window outwards projection fits . Please see in photo below. It is the part connected to the coils - Plastic piece With groove for windows
Item 7: in this window i need two casing of plastic with coils and 2 latches. Please note plastic casing is mounted on top of the window in this.

Casey · Accepted Answer

Hello,

Your pivot shoe looks like our 15-111 but make sure to confirm the width and thickness match up to the dimensions shown on our product page.

Your coil springs could be either our S160 or S165, depending on the thickness of your coils. Once you determine the correct replacement, you will find the appropriate housings and hardware under the related items section of our product page.

You may be looking for a tilt latches like our 2-5/8" long 26-419 and 26-420 or 26-243 and 26-244 but you'll need to compare all of the dimensions on both product pages to see which latch pair could work for you. Thank you!
