window pivot shoe

A handy person from nyc says:

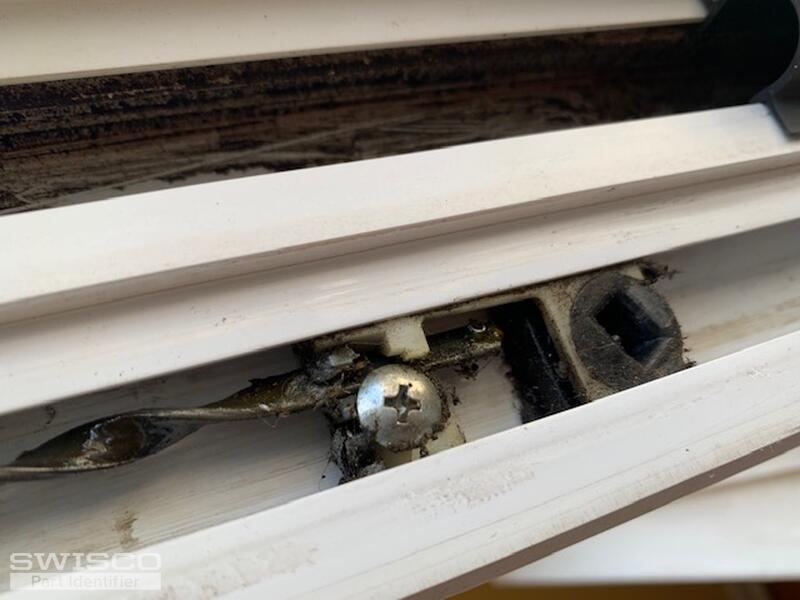

please can u let me know if u have the part in the pic
Thumbnail of the uploaded file named IMG_4235.jpg
Thumbnail of the uploaded file named 0EC062D5-4E68-4572-8823-E10480D69D8E.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

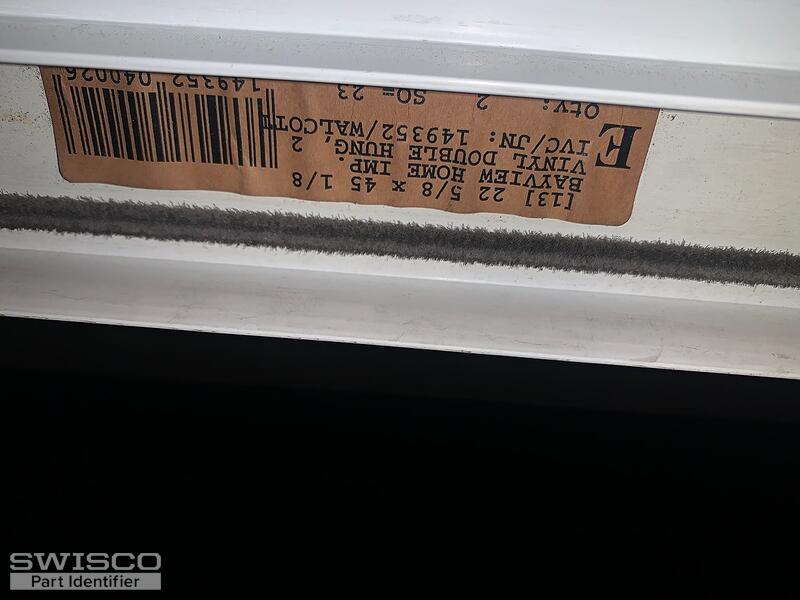

We should be able to offer a replacement for your pivot shoe but, unfortunately, the window sticker does not tell us the type of hardware that you need or the dimensions. We would need to see the shoe completely removed from the window, as well as the exact width and thickness, to compare to our inventory. Thank you!

A handy person from nyc says:
Hi

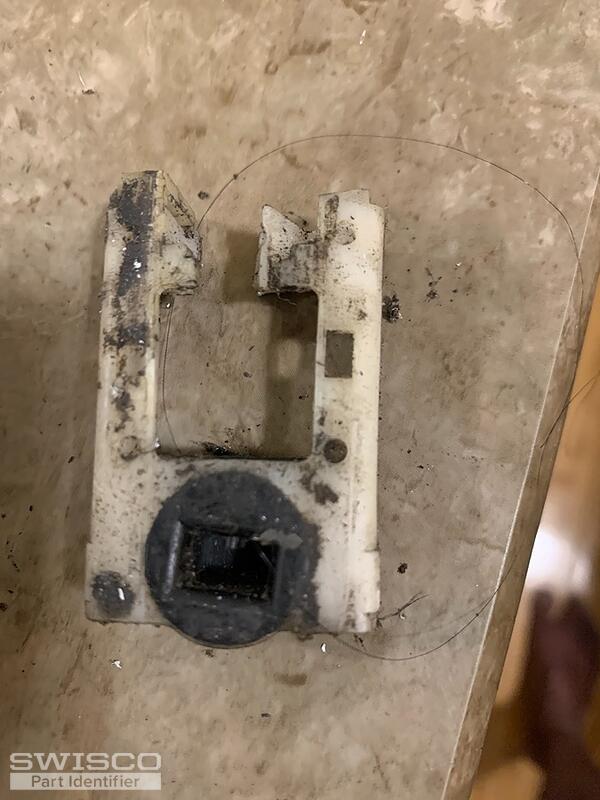

This is the actual shoe
Thumbnail of the uploaded file named 61F2582C-FC10-4584-BBFA-4EDED602CB3A.jpeg
Thumbnail of the uploaded file named 12669FF7-B567-460E-8F22-B8C082F11C53.jpeg
Thumbnail of the uploaded file named A71B2DEB-0577-4158-AF7E-495242C3BD6D.jpeg
Thumbnail of the uploaded file named 883472C3-F4C7-477C-B68A-F730B1EBF91B.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Unfortunately, we can't make out accurate dimensions from photos but if you could write out the exact width and thickness of your shoe, we should be good to go.

A handy person from nyc says:

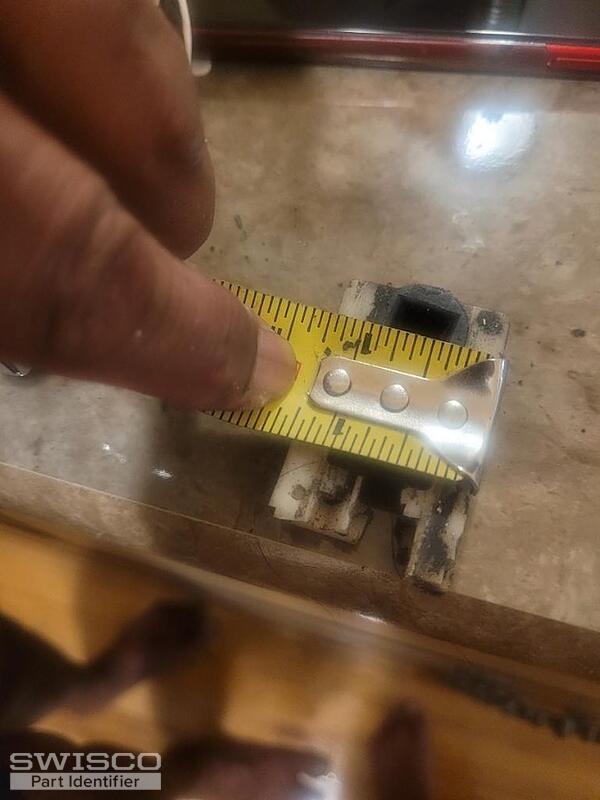

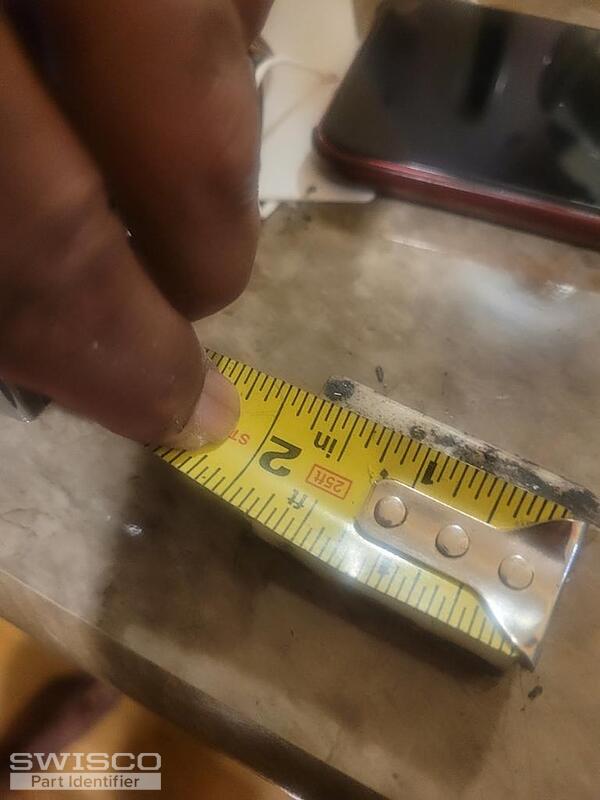

Hi the width is. ( 1 3/16"

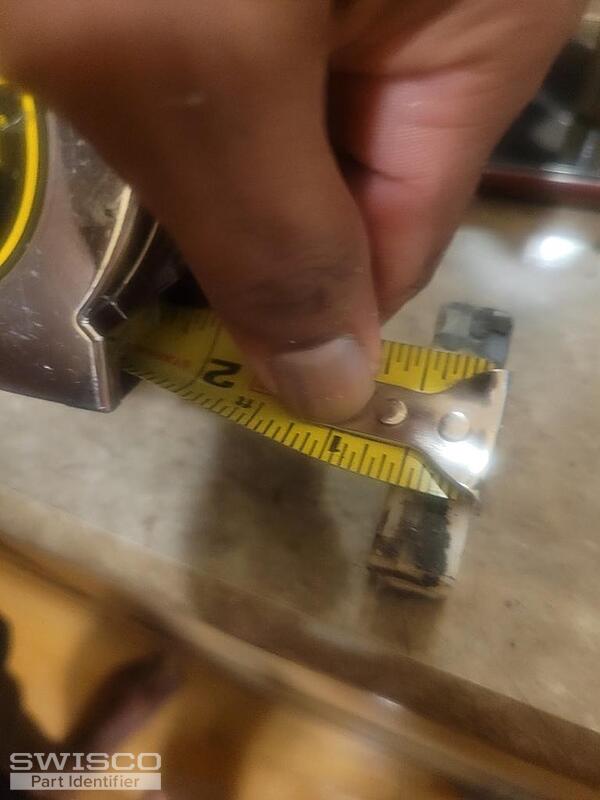

Thickness ( 1/2"
A handy person from nyc says:
Is the 15-046 shoe u have in the picture that the one to buy ??
Profile picture of Paul
Paul from SWISCO responded:

Yes, the 15-046 pivot shoe would be our best replacement option for your window. Keep in mind that the overall width is 1-1/4", which looks close to yours.

We also suggest using the 75-006 charging tool to help you attach the spiral to the pivot shoe. Thanks for posting.
