window replacement parts

A quick learner from Montgomeryville PA says:

need help finding the correct parts for windows. Have more pictures or could ship the parts to you.

Need 4 of the longer ones and 26 of the shorter ones and 30 of the small white pieces.

Thumbnail of the uploaded file named IMG_2389.JPG
Thumbnail of the uploaded file named IMG_2403.JPG
Thumbnail of the uploaded file named IMG_2395.JPG

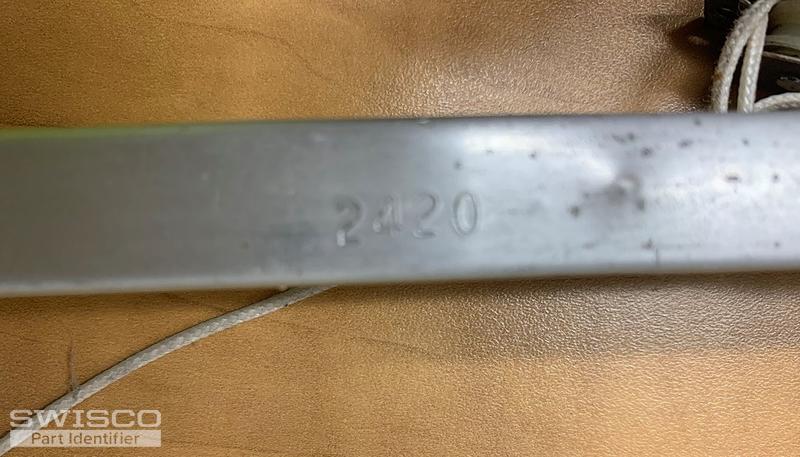

Thumbnail of the uploaded file named 2420

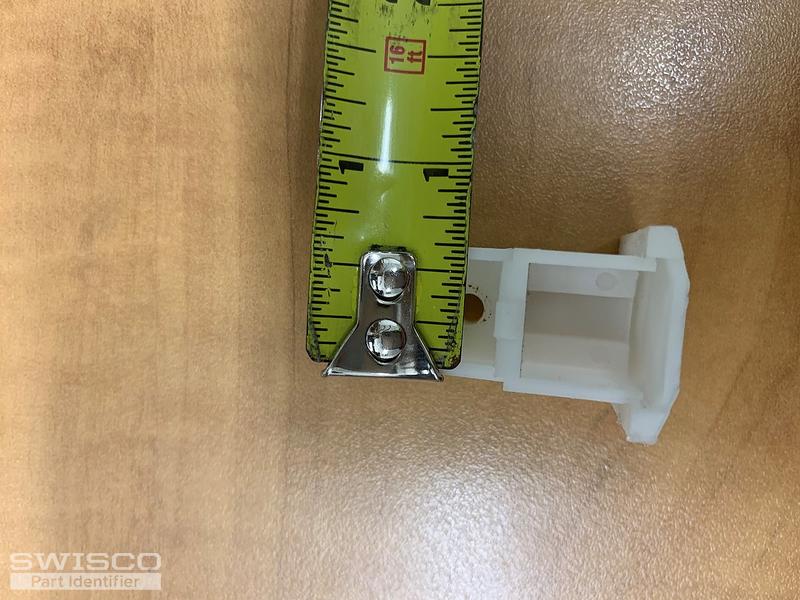

Thumbnail of the uploaded file named IMG_2407.JPG
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. See either our Series 351 or Series 390 Channel Balances. The only difference between these two series is the 'depth' of the bottom nylon shoe, so compare with your old balances to determine which is the best match. To know what lengths to select, measure only the metal channel, do not include the nylon attachments. I believe this should be 17" and 25" for each set you need, but it's best to confirm this to be safe. You will need to choose stamp options of 1620 and 2420, respectively.

Finally, for your Top Sash Guide, see our 18-033.

A quick learner from Montgomeryville PA says:
Options 1620 and 2420 are not available options. Am I missing something?
Profile picture of Kathleen
Kathleen from SWISCO responded:

Once you've determined if you need to S351 or S390, you'll need to choose the 1620 and 2420 options on the product pages of the S351-17 or S390-17 and S351-25 or S390-25. Hope this clears it up a bit.

A quick learner from Montgomeryville PA says:
I just realized I need to double my order. Will I be able to still apply a quantity discount to my total order if I reorder a duplicate amount of the same items?
Profile picture of Tom
Tom from SWISCO responded:

If you're ordering 25 balances again, you'll get a discount for that quantity, but it will not be added to the order you already placed.
