window spring balance

A quick learner from marcy NY says:
May 26, 2015
Thanks for your help

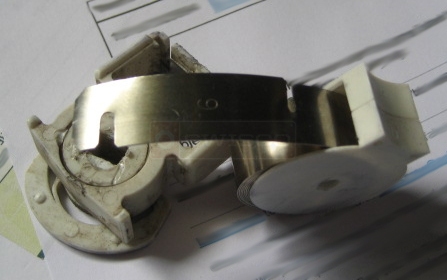

User submitted photo of their window balance.
A quick learner from marcy NY says:
May 29, 2015
where can i get these parts
Profile picture of Paul
Paul from SWISCO responded:
May 29, 2015
If it is just the pivot shoe you need to replace, then you can consider our 15-141 . Just make sure your dimensions are the same as ours.

The coil spring, however, has been discontinued by the manufacturer and has been replaced by our S152-6 . The confusing part is that the S152-6 is not compatible with the 15-141 . If you need to replace the spring, you will also need a new pivot shoe. See our 15-158 . I'd also recommend the 33-072 screw to attach them.
Coil Balance Shoe
Coil Balance Shoe
15-141
$2.84
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
Coil Balance Shoe
Coil Balance Shoe
15-158
$2.85
6 lb Series 152 Coil Balance
6 lb Series 152 Coil Balance
S152-6
$4.80
#8 x 3/8" SS Pan Head Philips Screw
#8 x 3/8" SS Pan Head Philips Screw
33-072
$0.30
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to Replace a Triple Coil Balance System
How to Replace a Triple Coil Balance System
VIDEO
WATCH >
