window springs

Question

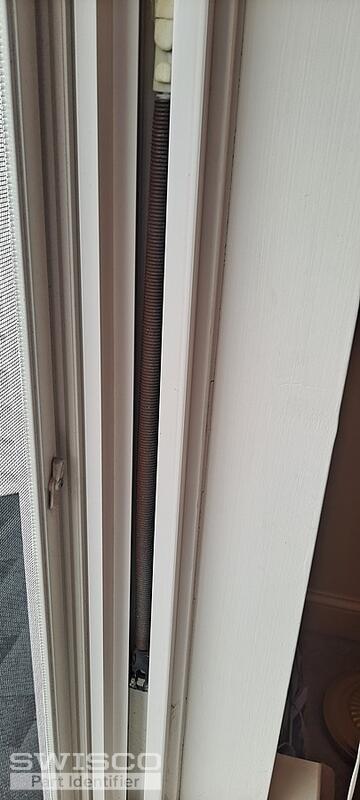

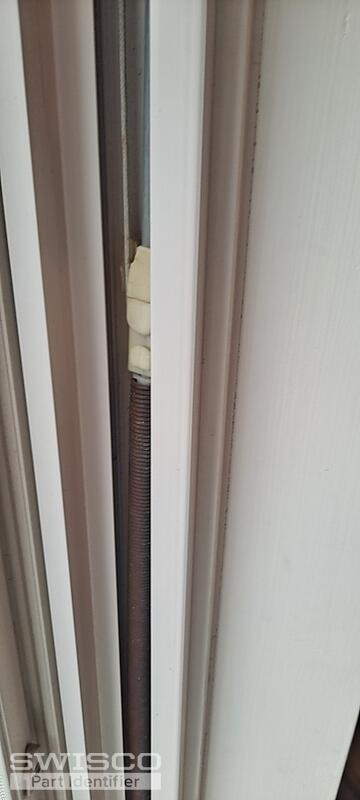

window spring in photo has no markings. took pictures of upper attach point, middle white plastic string pulley, spring attached to lower window attach location. I see no way of getting lower black and middle white pulley out of window casing - to replace spring unit

Lauren · Accepted Answer

Hello, thank you for posting,

Your window uses an older crossbow balance that is no longer made. As long as the original spring measures a 1/2" diameter, you should be able to convert to the Series 795 channel balance. Please review the step by step video below that details the conversion and parts needed. Let us know if you have any questions!
