Product Code: 23-248

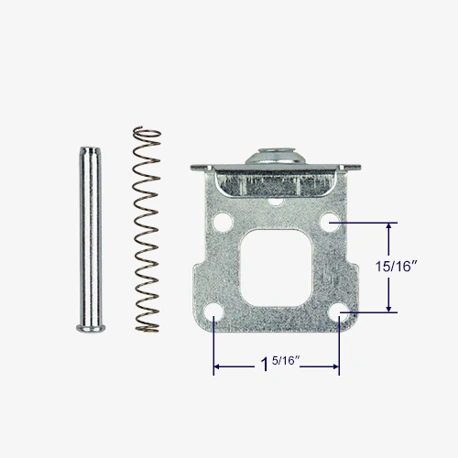

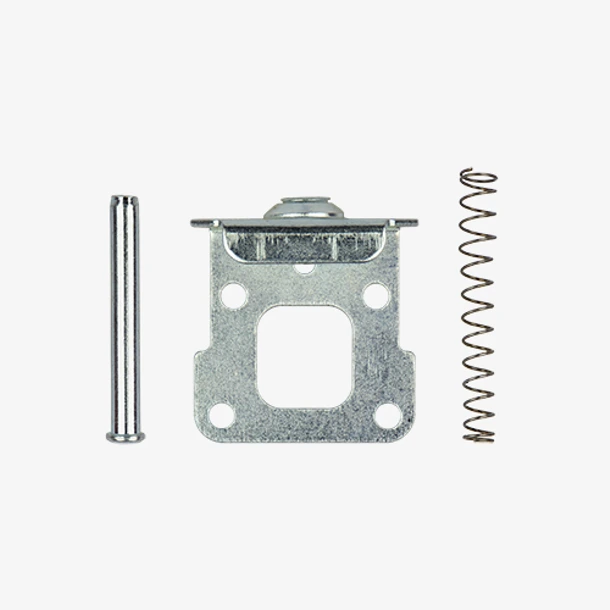

Top Pivot Assembly
$4.79
Product Description
This replacement top pivot spring loaded assembly is used in the Paniflex bifold closet door system.
Instructions: Drop spring into hole on top of door: for left-pivot door, use hole on left; for right-pivot door, use hole on right. Slide pivot pin up through top pivot bracket. Insert top pivot bracket into spring hole. Fasten bracket to rear of door. Test for correct installation of bracket by pushing pivot pin into door. Pivot pin should now be spring loaded and not removable from bracket.
Instructions: Drop spring into hole on top of door: for left-pivot door, use hole on left; for right-pivot door, use hole on right. Slide pivot pin up through top pivot bracket. Insert top pivot bracket into spring hole. Fasten bracket to rear of door. Test for correct installation of bracket by pushing pivot pin into door. Pivot pin should now be spring loaded and not removable from bracket.
