14" Series 775 Balance

Product Code: S775-14

14" Series 775 Balance
Main product image of the S775-14 14" Series 775 Balance
$19.10/each
Quantity Price
1-9 $19.10
10-24 $18.14
25-49 $17.19
50-99 $16.23
100+ $15.66
Please Note: Bulk pricing applies only to purchases of the same option
Option:
14B & 1" Shoe
14B & 1-1/4" Shoe
14C & 1" Shoe
14C & 1-1/4" Shoe
14D & 1" Shoe
14D & 1-1/4" Shoe
Product Description
This is a Series 775 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 14" long metal channel.
  • Comes fully assembled with a 19-036 top mount screw support and a bottom shoe called a wedge, available in 1" or 1-1/4" widths and will be ready to install out of the box.
  • The width of the metal channel measures 9/16".
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • Can work for either the left or right side of the window interchangeably.
  • Stamp Option Sash Weight Range
    B 7 to 10 lbs
    C 10 to 16 lbs
    D 16 to 19 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Helpful Tip!
This part does not include new fasteners. Do not throw away your original screws, you will need them for the installation of your new part.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!

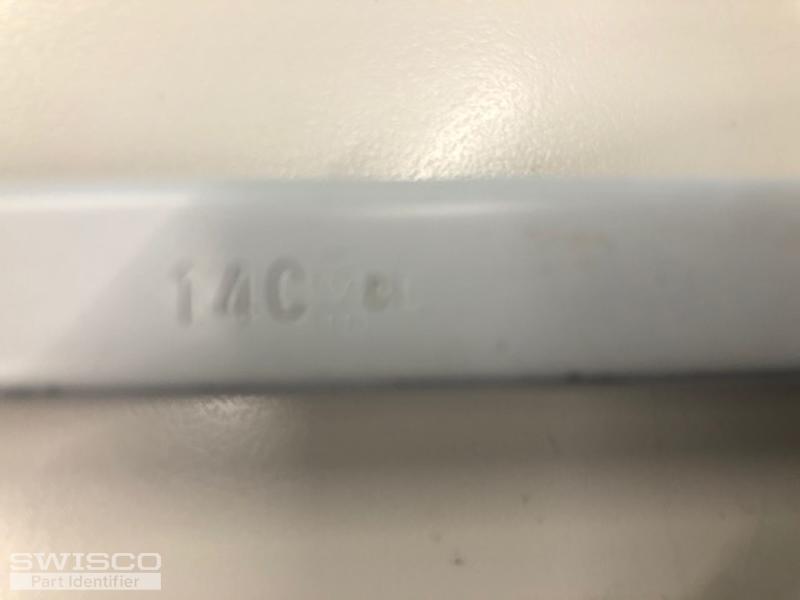

The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Guides
Customer Questions & Answers
Discussion # Of Replies Last Post Date

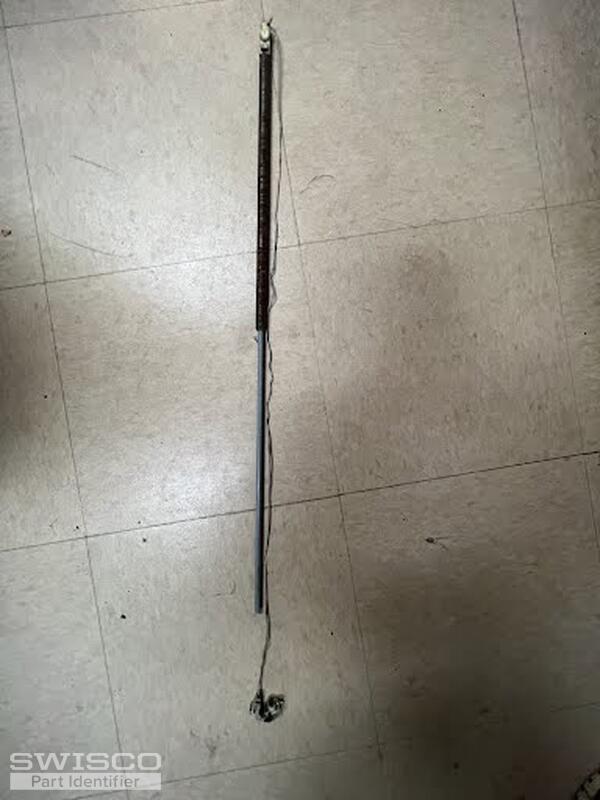

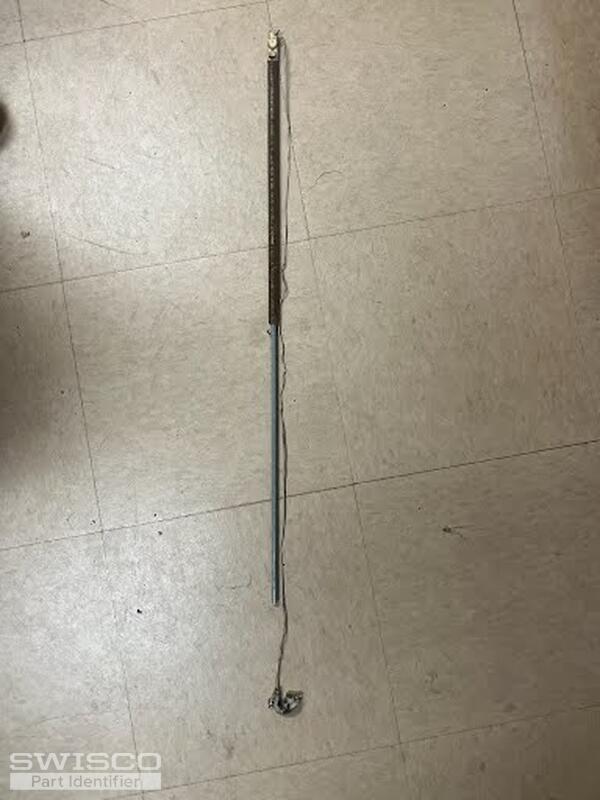

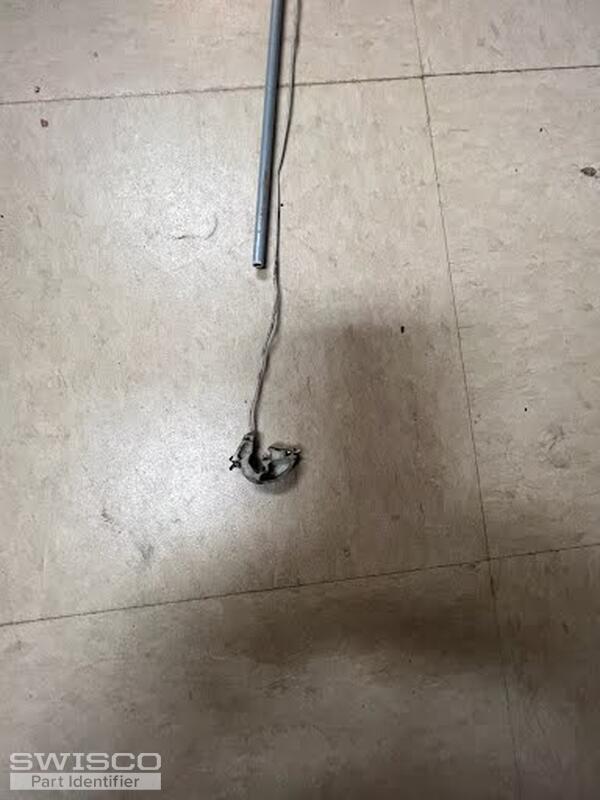

S775 with a plain metal channelThis discussion includes image(s). 3 Aug 4, 2020
Start a new discussion
Use this form to ask questions or to share your experiences regarding this product. Every discussion will be reviewed and answered by our experts.
(your email address will be kept private and is only used to inform you when a response has been made)
Current wait time is 4-7 business days
We promise that one of our experts will personally get back to you as soon as they are able. Thank you very much for your patience and understanding. If your inquiry is time-sensitive, please feel free to reach us at 856-317-6263 or at help@swisco.com.
