18" Four Bar Hinge, 45 Degree, Heavy Duty

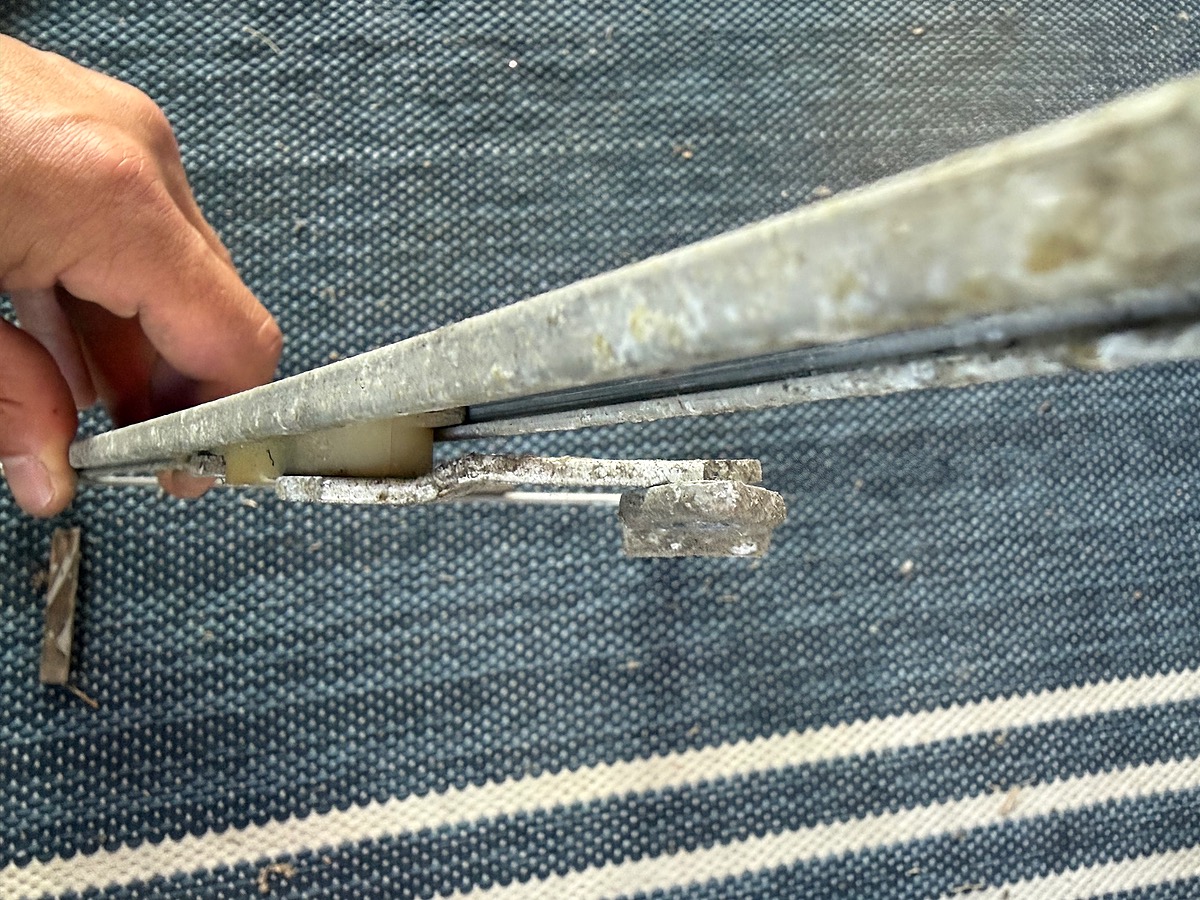

Plastic on one of the hinges broke. Looking to select the correct hinge assembly for replacement. Purchased a set and it was not the correct one. Looking for help to not have to go through the return process again. thanks in advance

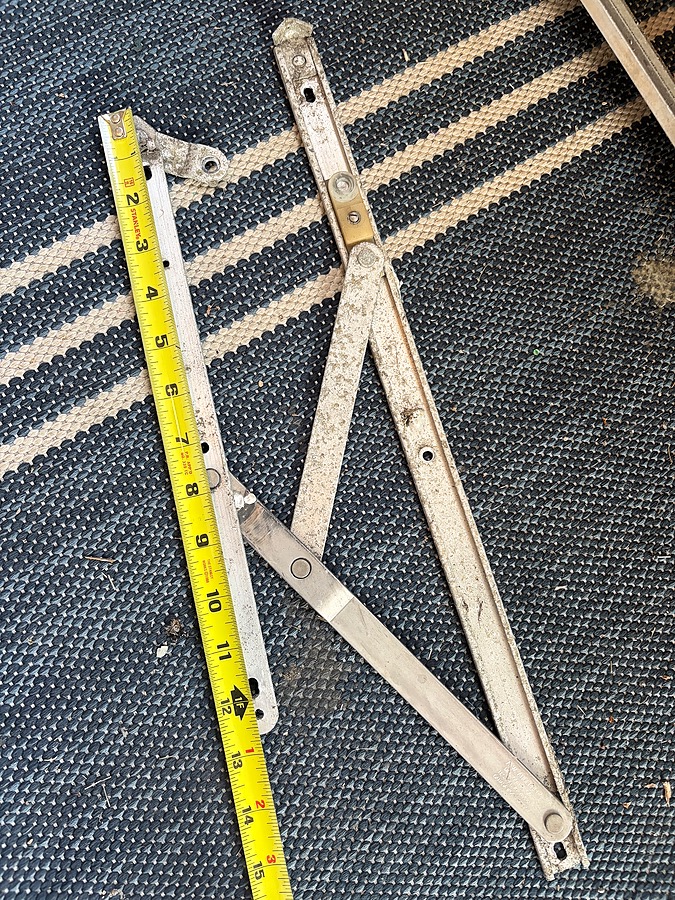

When you open the window the 11" arm slides on the track And is attached to the window, a 5" arm goes from the 11" arm to the track with a 2" arm that goes from the track to the back of the window, Track is 17" long, A 11" arm slides on the track, A 5" arm goes to the track, A 2" arm goes from ... (cont.)

HI.I think these are Andenburg hinges--or thats what they used to call them.

Hello,Could you help me correctly identify this part of a window and provide a quote for the piece?Thank you!Tammy

Hi, My name is joey with Lyndale Glass in Bellingham,WA I did not think to get the length of bar that mounts to casement only the one that mounts to frame. Casement was installed in 1998. Currently quoting a new casement as hardware like this is so hard to find. Unfortunately no way to locate the m ... (cont.)
