18" Series 775 Balance

Product Code: S775-18

18" Series 775 Balance
$20.95/each
Quantity Price
1-9 $20.95
10-24 $19.90
25-49 $18.86
50-99 $17.81
100+ $17.18
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description

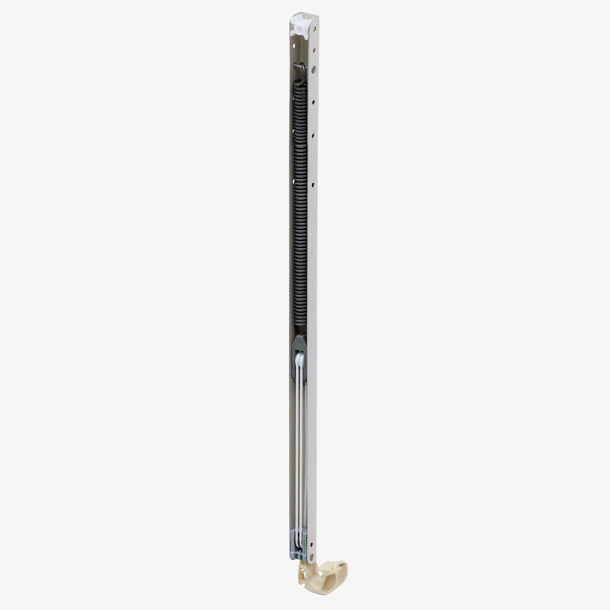

This is a Series 775 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 18" long metal channel.

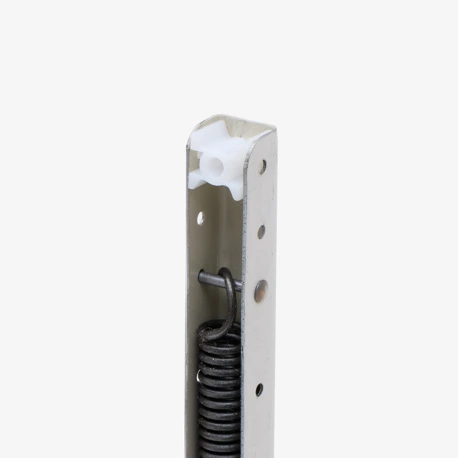

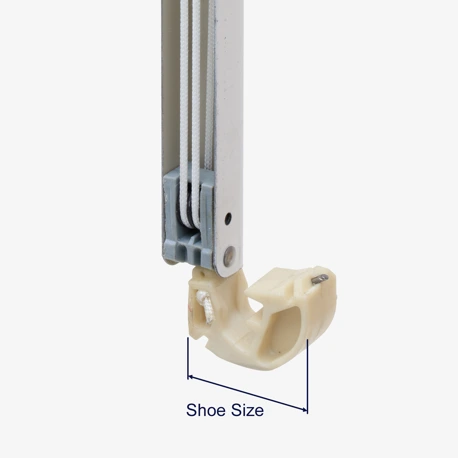

  • Comes fully assembled with a 19-036 top mount screw support and a bottom shoe called a wedge, available in 1" or 1-1/4" widths and will be ready to install out of the box.
  • The width of the metal channel measures 9/16".
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • Can work for either the left or right side of the window interchangeably.
  • Stamp Option Sash Weight Range
    18B & 1" Shoe 9 to 13 lbs
    18B & 1-1/4" Shoe 9 to 13 lbs
    18C & 1" Shoe 13 to 18 lbs
    18C & 1-1/4" Shoe 13 to 18 lbs
    18D & 1" Shoe 18 to 21 lbs
    18D & 1-1/4" Shoe 18 to 21 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Helpful Tip!
This part does not include new fasteners. Do not throw away your original screws, you will need them for the installation of your new part.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash's weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.
Related Item(s)
Customer Questions & Answers
Discussion Posts Last Post Date

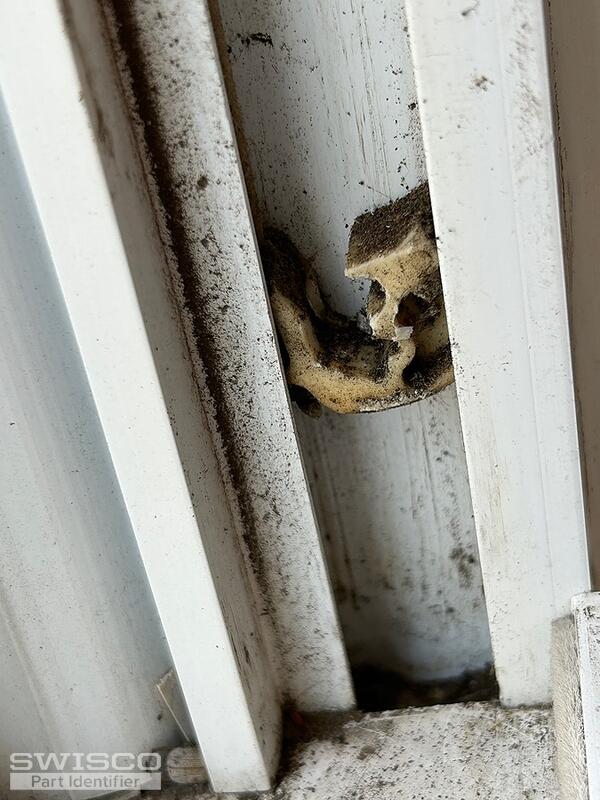

Balances
