18" Series 750 Channel Balance

Product Code: S750-18

18" Series 750 Channel Balance
$19.77/each
Option:
Notify Me When Available
Product Description

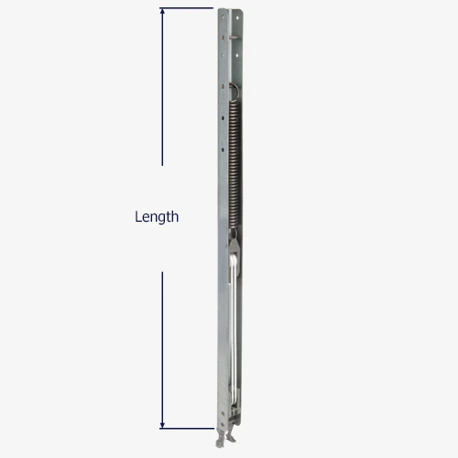

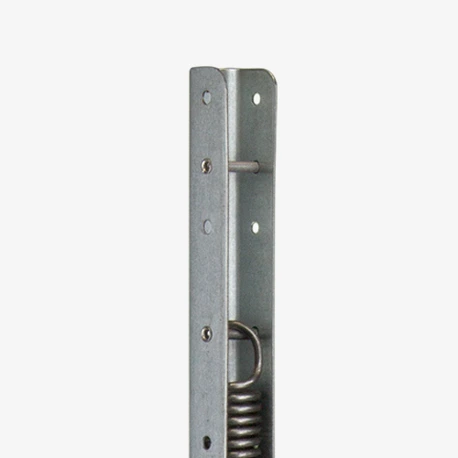

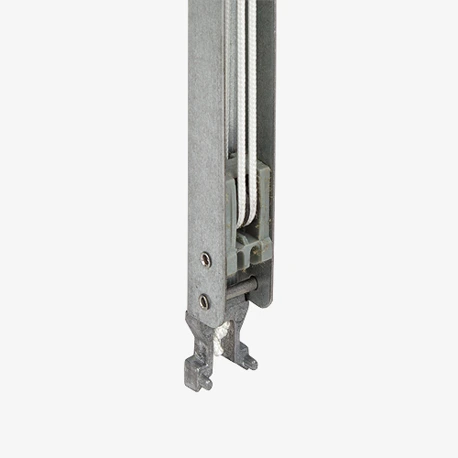

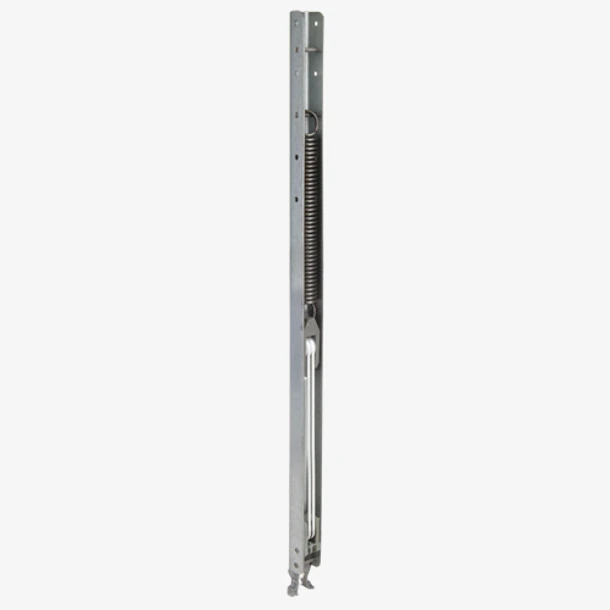

This series 750 ribbed channel balance also known as a block and tackle balance has a 18" long metal ribbed channel and is for a tilt window. This balance comes fully assembled with a 15-112 shoe. The channel width measures 9/16" but is considered 1/2" in the trade. This balance is designed to fit into a vinyl jambliner. Limited Supply, sold while supplies last.
Stamp Option Sash Weight Range
17R 10 to 17 lbs
17HD 17 to 22 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash's weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.
