19" Series 765 Balance

Product Code: S765-19

19" Series 765 Balance
$13.87/each
Quantity Price
1-11 $13.87
12-49 $12.48
50-99 $11.79
100-249 $11.10
250+ $10.40
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Notify Me When Available
Product Description
This is a Series 765 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 19" long metal channel.
  • Comes fully assembled with a screw clip on top and a pivot shoe hook attached at the bottom and will be ready to install out of the box.
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • Can work for either the left or right side of the window interchangeably.
  • Used in American Craftsman and Silver Line vinyl, single hung, new construction windows, as well as Silver Line Series 1200 vinyl, double-hung, replacement windows.
  • Stamp Option Sash Weight Range
    18-1 5 to 9 lbs
    18-3 9 to 12 lbs
    18-5 12 to 16 lbs
    18-7 16 to 20 lbs
    18-9 20 to 26 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Related Item(s)
Customer Questions & Answers
Discussion Posts Last Post Date

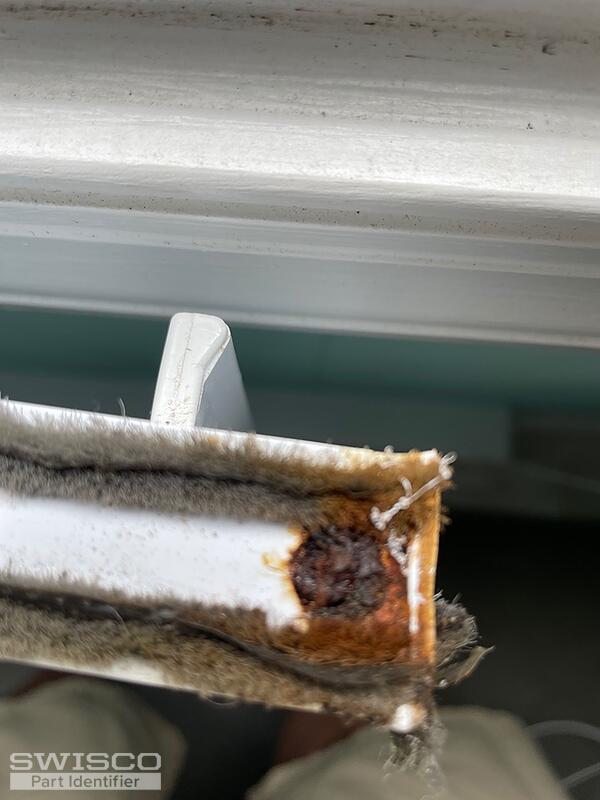

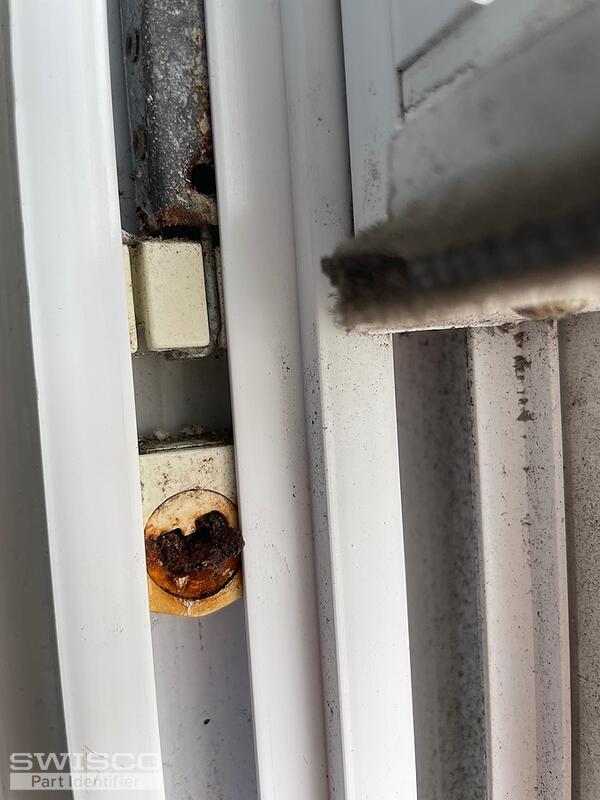

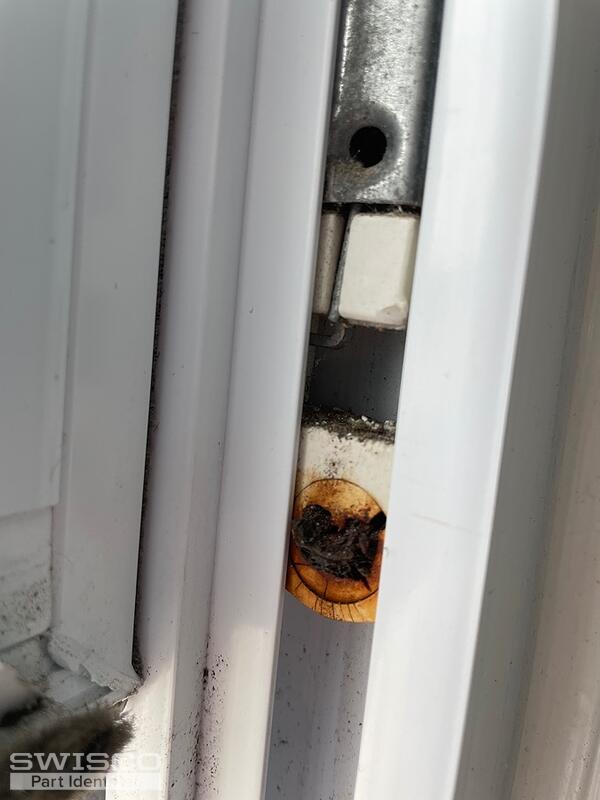

Pivot bar and shoe
